K&N · 63-3060-1
Part #: 63-3060-1
UPC: 024844233820
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Description: Performance Air Intake System; K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow.
Description:
This part number superseded 63-3060.
Description

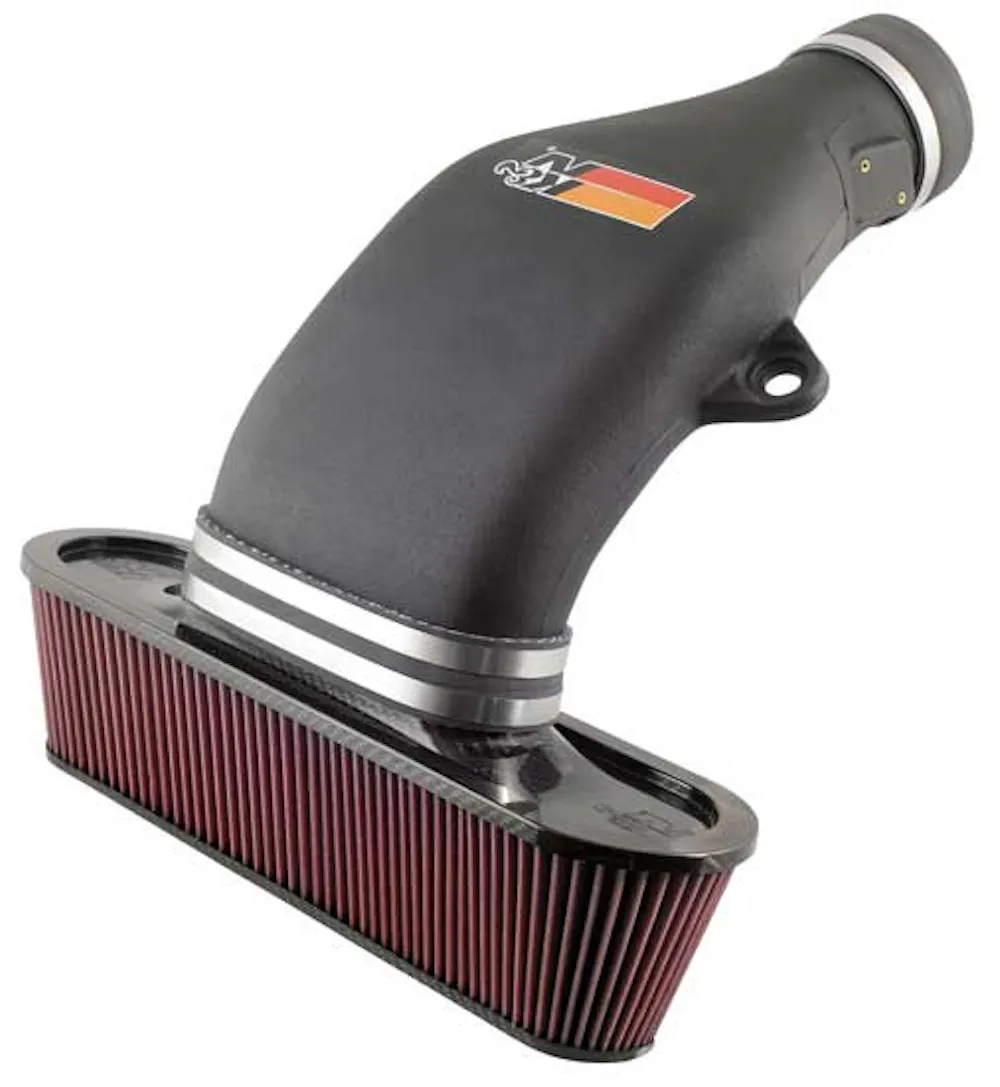

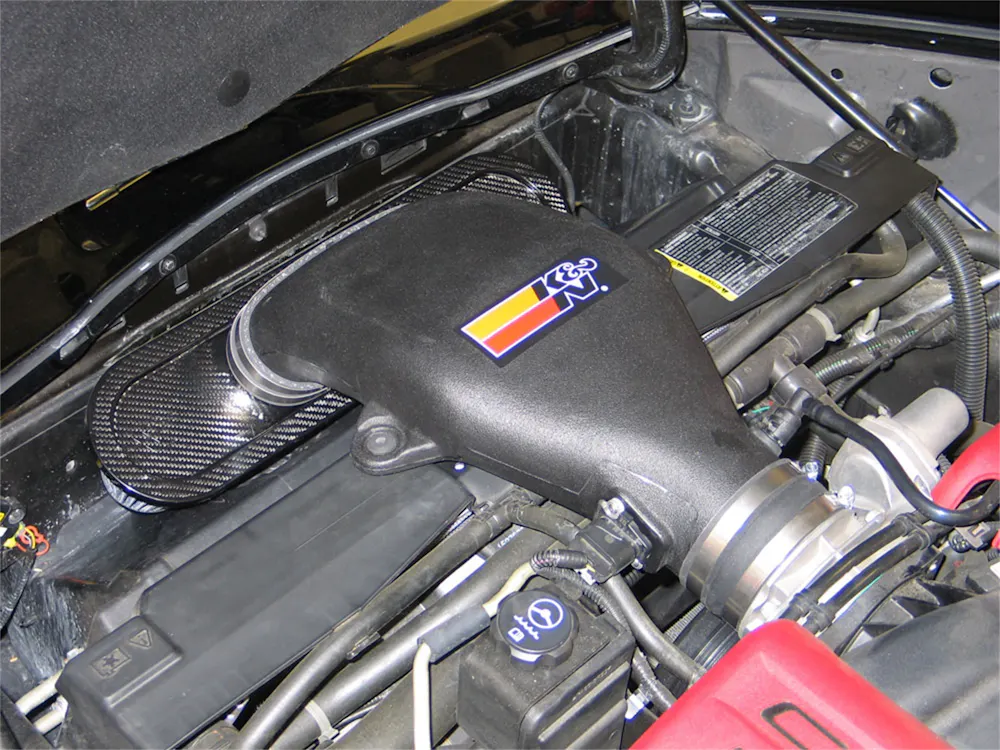

The K&N AirCharger 63-3060-1 air intake system replaces your Chevrolet Corvette Z06's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your Corvette Z06 engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-3060-1 air intake has a K&N high-flow air filter with a top and base made from light weight carbon fiber. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only a screwdriver and several wrenches.
Features & benefits
- Guaranteed horsepower gain
- Designed to improve throttle response and engine sound
- Free-flowing carbon fiber intake tube
- Replaces entire factory air intake system
- Easy to install, usually in 90 minutes or less
- Lasts up to 100,000 miles before service is required (depending on driving conditions)
Information
Associated products: RP-5135DK Air Filter Wrap, RP-5161 Universal Air Filter - Carbon Fiber Top and Base, 99-5000 Filter Care Service Kit Aerosol
Application summary
| Year | Make / model |
|---|---|
| 2006-2009 | Chevrolet Corvette |
Specifications
- GTIN
- 00024844233820
- Weight
- 8.76 lb
- Height
- 15.6 in
- Length
- 24.2 in
- Width
- 20.2 in
- EO
- Not in CA
- Life cycle
- Discontinued
- Alt. part number
- 63-3060-1
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- AAM Standard Pack
- 1
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Height
- 4.813 in. (122mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Oulet Length
- 8.750 in. (222mm)
- Air Filter Oulet Width
- 8.750 in. (222mm)
- Air Filter Outlet Length
- 8.750 in. (222mm)
- Air Filter Outlet Shape
- Oval
- Air Filter Outlet Width
- 8.750 in. (222mm)
- Air Filter Washable
- Yes
- Alternate Part Number
- 63-3060-1
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- California Restricted
- Not legal for sale or use in California
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 4
- Clamp Style
- Regular
- Clamps Included
- 4
- Coupler Color
- Black
- Coupler Color/Finish
- Black
- Couplers Included
- 2
- Estimated Horse Power Gain
- 27.22 HP @ 5600 RPM
- Estimated Horsepower Gain
- 27.22 HP @ 5600 RPM
- Estimated Torque Gain
- 25 lbft
- Filter Color
- Red
- Filter Material
- Cotton Gauze
- Horse Power Increase
- 27 HP
- Intake Pipe Color
- Black
- Intake Pipe Color / Finish
- Black
- Intake Pipe Material
- High-Density Cross-Linked Polyethylene
- Intake Pipe Ports
- All intake tube ports needed for the specified applications are included
- Item Weight
- 8.800 lbs. (4 kg)
- Mass Air Flow Sensor Adapter Included
- No
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Oversize Shipping
- OS1
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 15.600 in. (396mm)
- Product Box Length
- 24.200 in. (615mm)
- Product Box Width
- 20.200 in. (513mm)
- Product Style
- 63 Series Aircharger Kits
- RPM
- 5600
- Replacement Filter
- RP-5161
- Retail Packaging
- No
- Street Legal
- No
- Street Legal In All US States
- Not legal for sale or use in California on any pollution controlled motor vehicle.
- TUV Approved (Europe)
- No
- Title
- K&N 63-3060-1 Performance Air Intake System
- Warranty
- No-Hassle Lifetime Limited
- Weight
- 8.8 lb (4 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2006-2009 Chevrolet Corvette
Equivalent Parts
K&N 63-3060-1
