Description: Performance Air Intake System; K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow. This power gaining air intake comes with K&N's One Year Limited Warranty.
Description:
Description

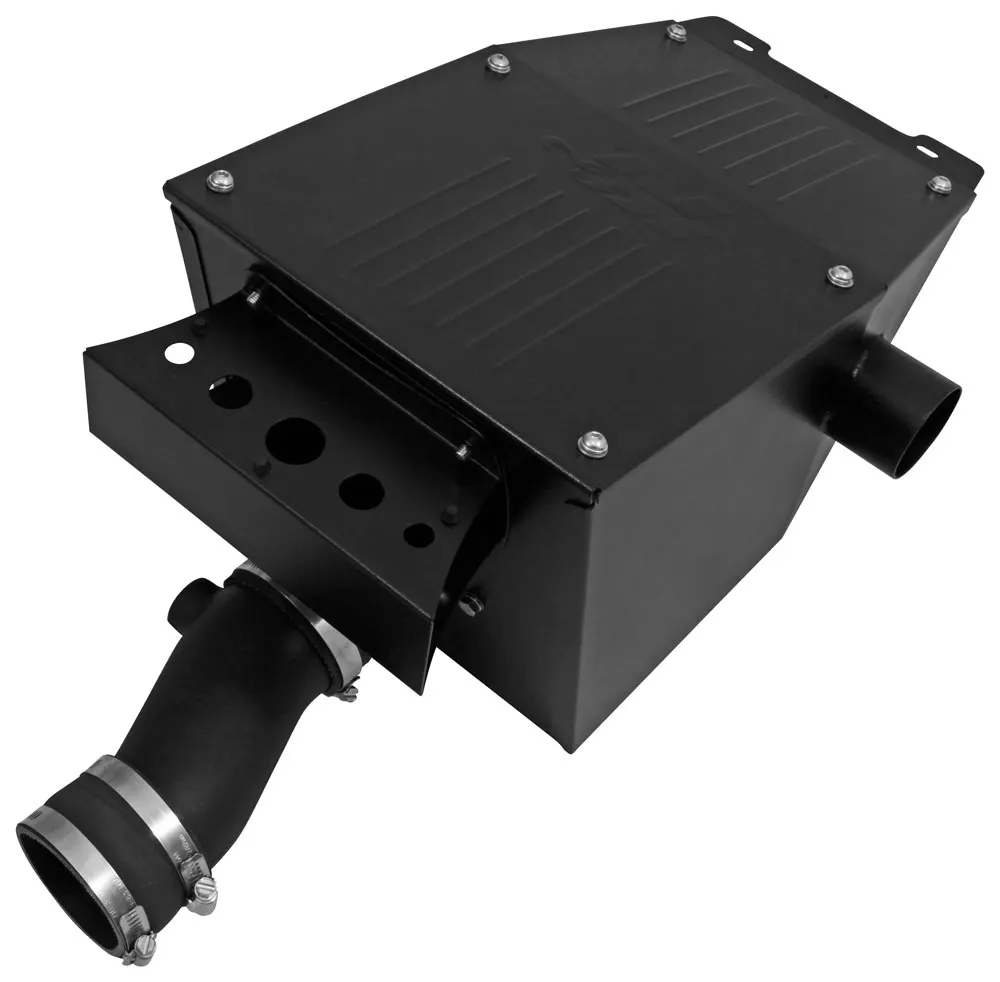

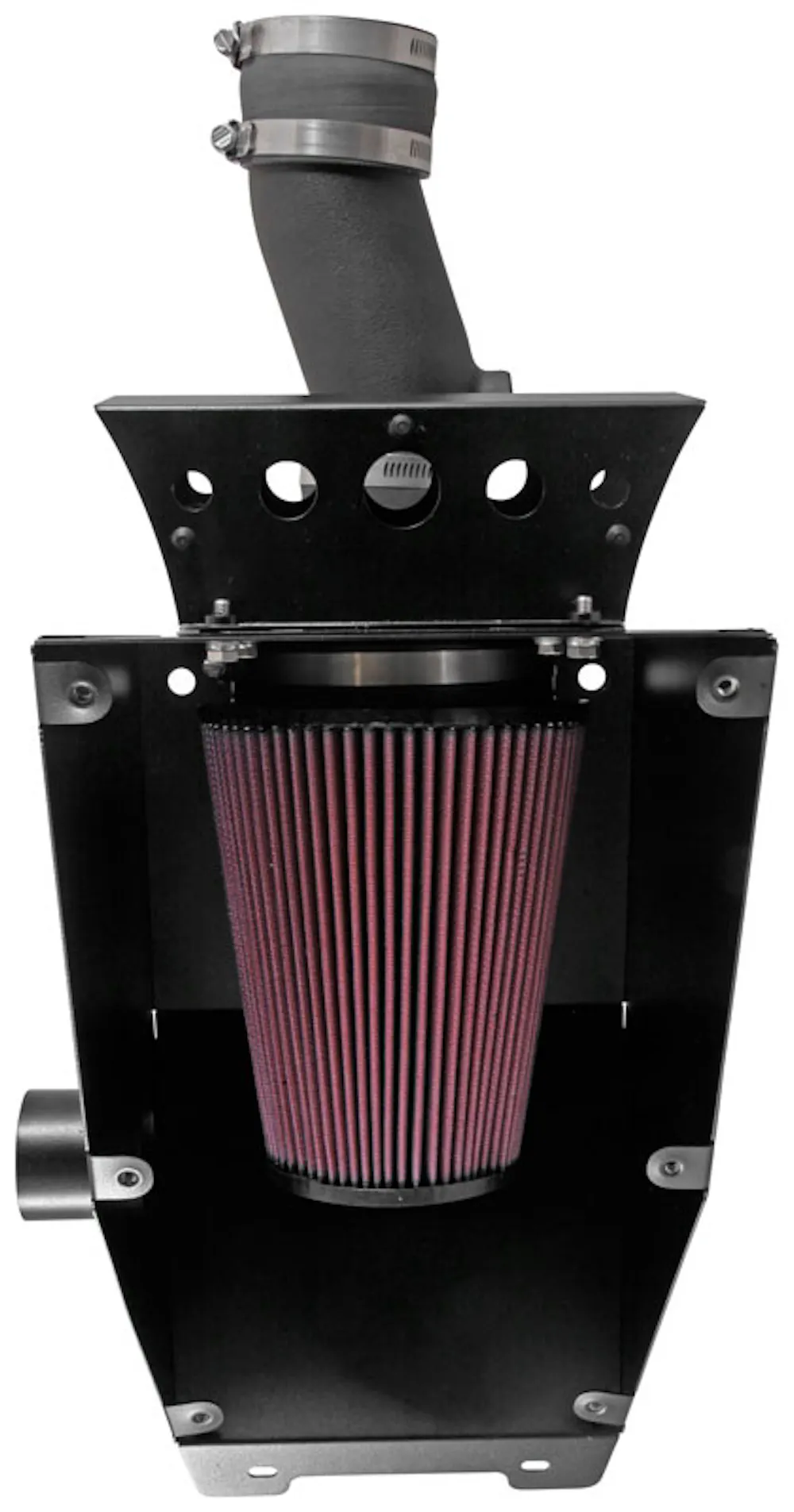

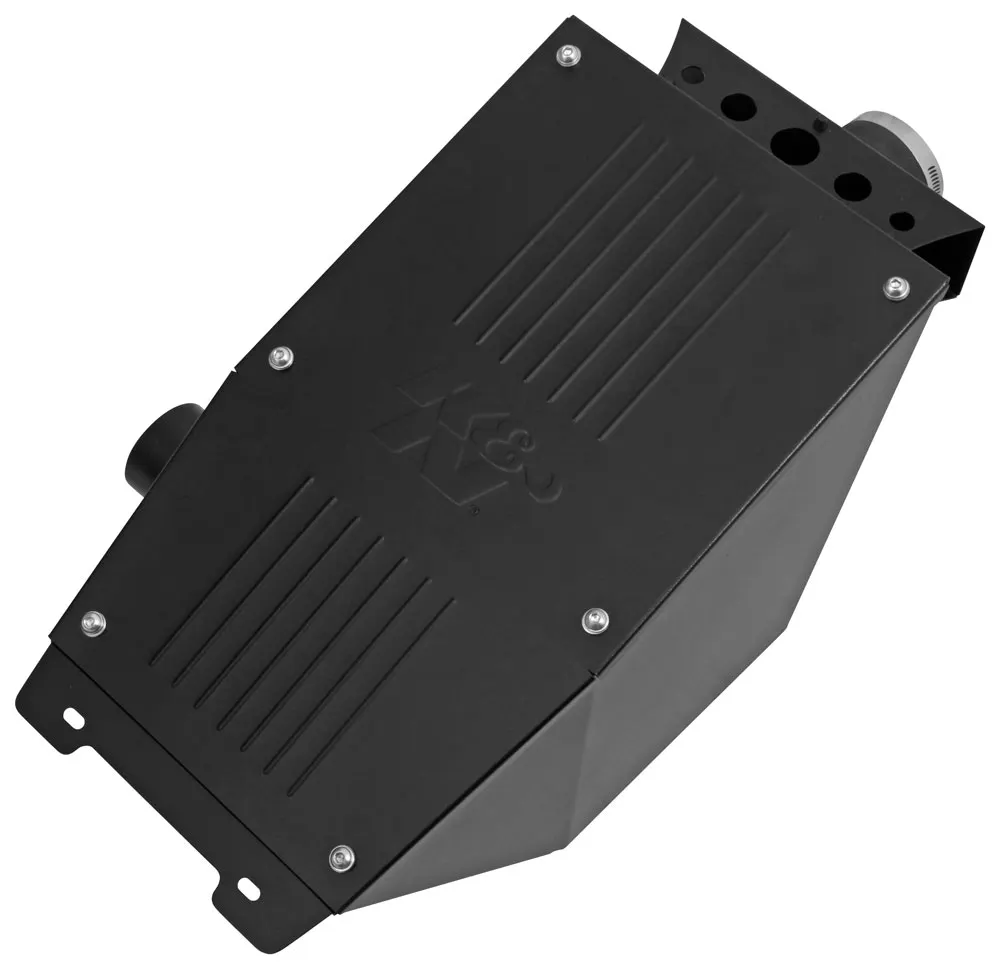

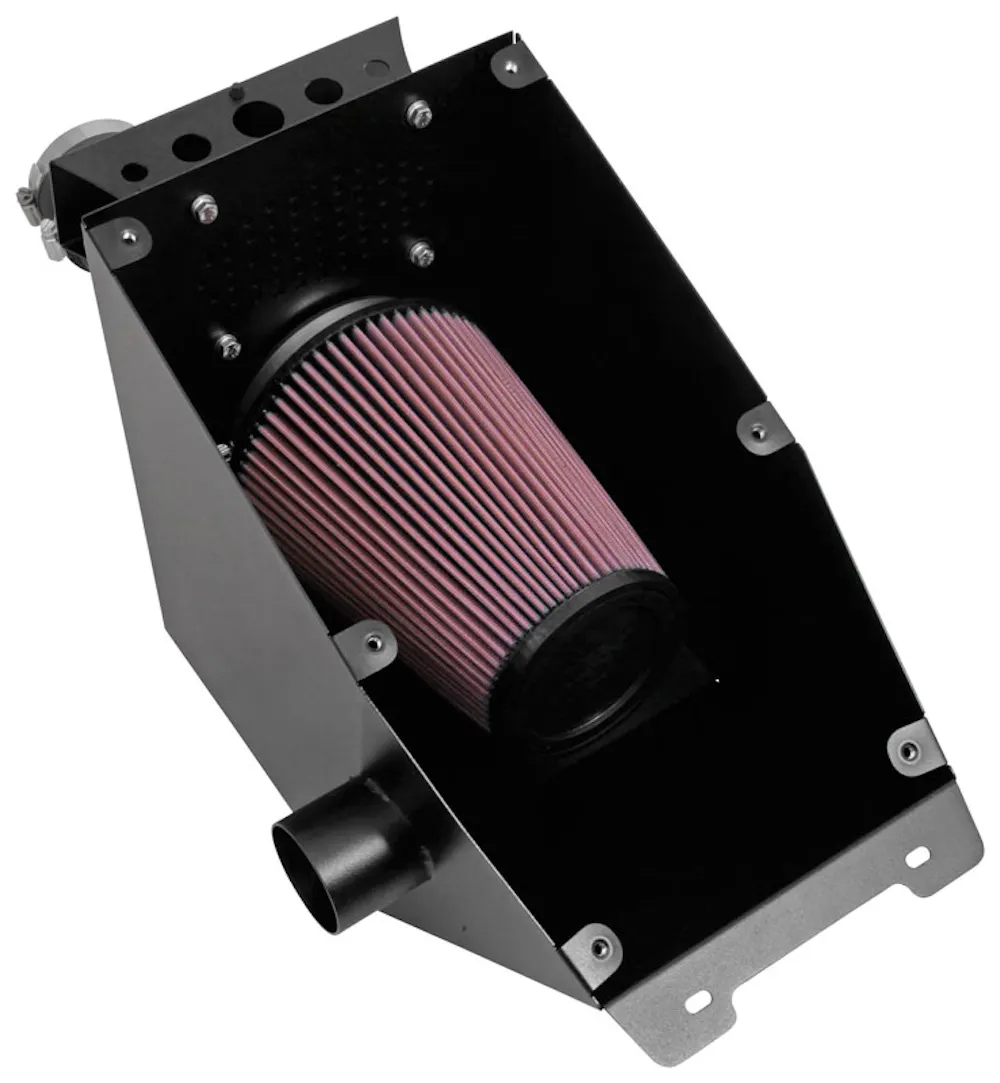

The K&N 63-1135 AirCharger air intake system replaces the restrictive factory air filter and air intake housing on specific Can-Am Maverick 1000 models. K&N air intakes are designed to dramatically reduce air intake restriction as well as smooth and straighten air flow. This allows your Maverick's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The air intake comes with a black rubber topped K&N high-flow air filter within a black, K&N embossed air box that installs into the original air box space under the hood panel. Air is directed through an aerodynamically engineered intake tube into the engine's throttle body for a guaranteed power gain. The intake tube is designed to accommodate the factory crank case vent hose. This air intake is relatively easy to install, usually in 90 minutes or less using your vehicle's existing factory mounting points. The tools needed are a screwdriver, pliers, ratchet set and several wrenches.
Application summary
| Year | Make / model |
|---|---|
| 2015-2016 | Can-Am Maverick 1000R |
| 2016 | Can-Am Maverick 1000R DPS |
| 2015-2016 | Can-Am Maverick 1000R X ds |
| 2015-2016 | Can-Am Maverick 1000R X mr DPS |
| 2015 | Can-Am Maverick 1000R X rs DPS |
| 2015-2016 | Can-Am Maverick 1000R X xc DPS |
| 2016-2018 | Can-Am Maverick 1000R XC |
| 2015 | Can-Am Maverick Max 1000R |
| 2016 | Can-Am Maverick Max 1000R DPS |
| 2015-2016 | Can-Am Maverick Max 1000R X ds |
| 2015 | Can-Am Maverick Max 1000R X rs DPS |
Specifications
- GTIN
- 00024844363503
- Weight
- 17.5 lb
- Height
- 12.5 in
- Length
- 18.25 in
- Width
- 18.25 in
- EO
- Not in CA
- Life cycle
- Discontinued
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Height
- 8 in (203 mm)
- Air Filter Inside Diameter
- 5 in (127 mm)
- Air Filter Large End Diameter
- 6.5 in (165 mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Outlet Shape
- Round
- Air Filter Washable
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- California Restricted
- Not legal for sale or use in California
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Style
- Regular
- Clamps Included
- 5
- Coupler Color/Finish
- Black
- Couplers Included
- 2
- Estimated Horsepower Gain
- 1.11 HP @ 40.9 MPH
- Horse Power Increase
- 1 HP
- Intake Pipe Color / Finish
- Black
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Material
- High-Density Polyethylene
- Intake Pipe Outlet Shape
- Round
- Mass Air Flow Sensor Adapter Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 12.5 in (318 mm)
- Product Box Length
- 18.25 in (464 mm)
- Product Box Width
- 18.25 in (464 mm)
- Product Style
- Motorcycle Intake System
- Replacement Filter
- RU-2805XD
- Street Legal In All US States
- No
- TUV Approved (Europe)
- No
- Title
- K&N 63-1135 Performance Air Intake System
- Warranty
- 1,000,000 Miles/10 Year
- Weight
- 17.5 lb (7.9 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2015-2016 Can-Am Maverick 1000R; 2016 Can-Am Maverick 1000R DPS; 2015-2016 Can-Am Maverick 1000R X ds; 2015-2016 Can-Am Maverick 1000R X mr DPS; 2015 Can-Am Maverick 1000R X rs DPS; 2015-2016 Can-Am Maverick 1000R X xc DPS; 2016-2018 Can-Am Maverick 1000R XC; 2015 Can-Am Maverick Max 1000R; 2016 Can-Am Maverick Max 1000R DPS; 2015-2016 Can-Am Maverick Max 1000R X ds; 2015 Can-Am Maverick Max 1000R X rs DPS
Resources
- Brand logo
- Installation Instructions
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - In Package
- Photo - In Package
- Photo - In Package
- Photo - In Package
- Photo - In Package
- Photo - Lifestyle View
- Photo - Primary

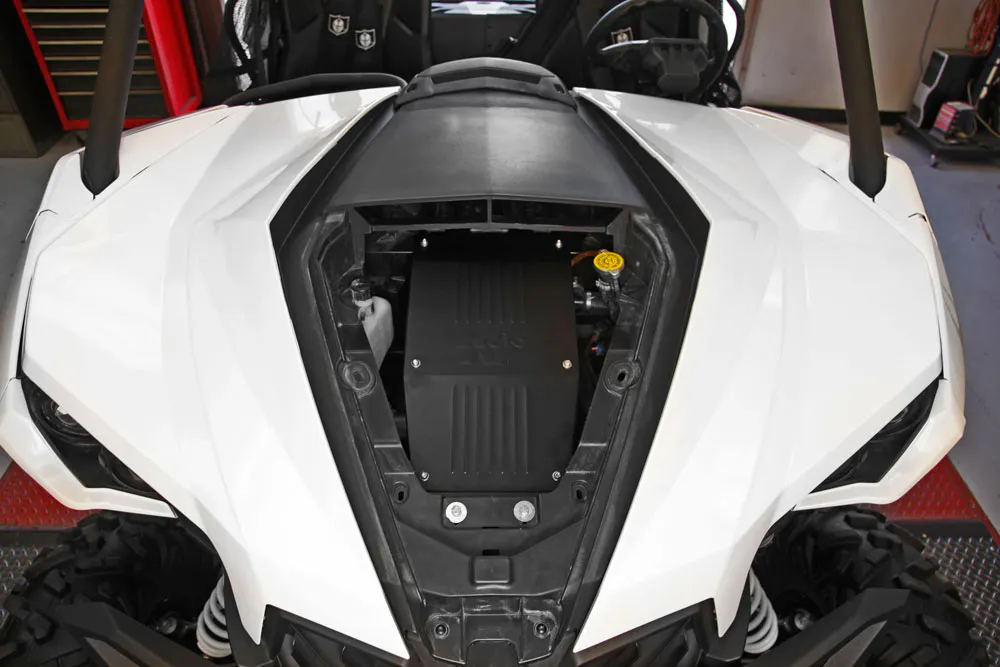

- Photo - Mounted
