K&N · 63-1128
Part #: 63-1128
UPC: 024844263162
Log in for inventory
Notify me when this item is in stock.
This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!
Description: Performance Air Intake System; K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow and delivers a guaranteed power gain.
Description:
Description

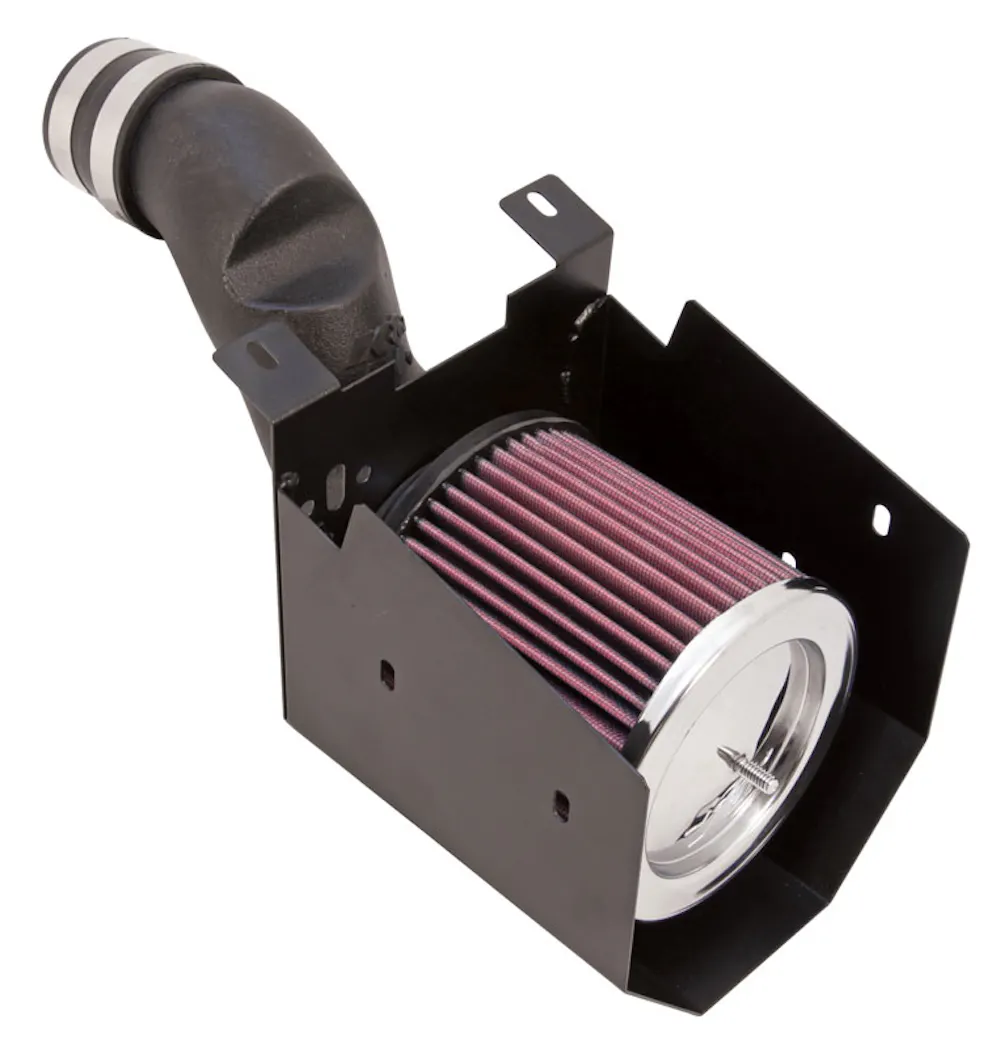

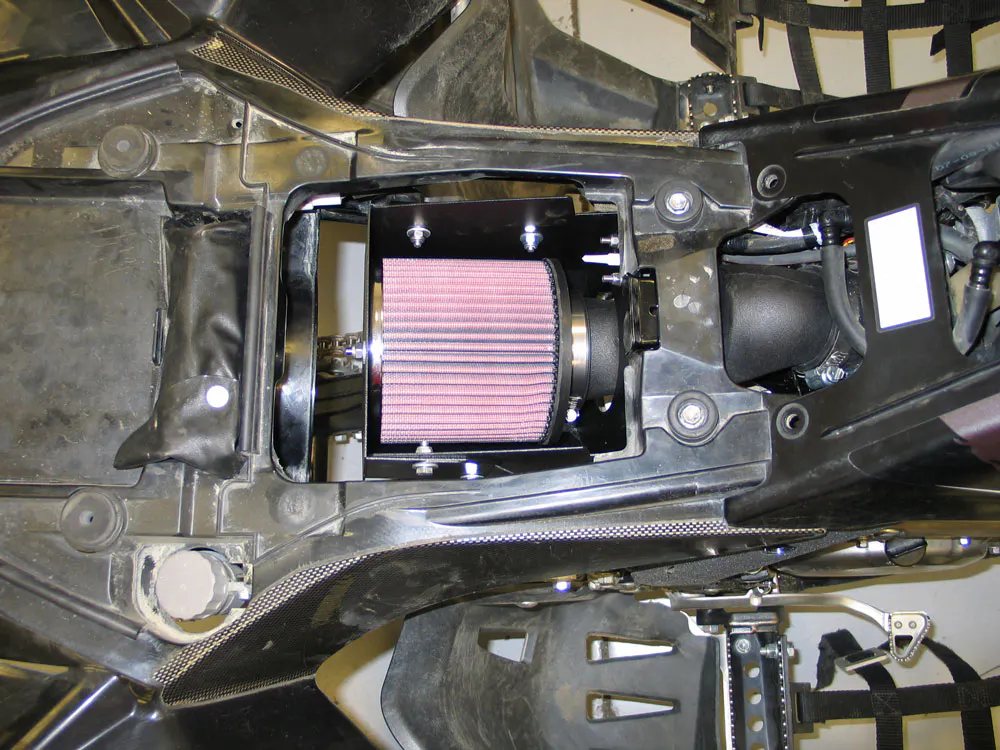

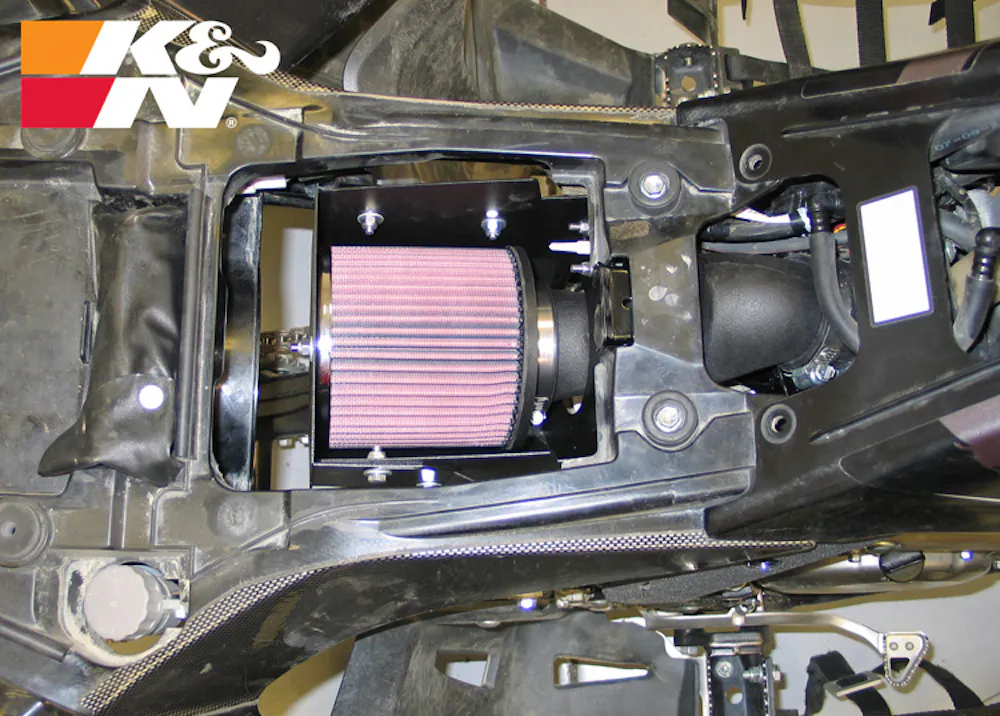

The K&N 63-1128 AirCharger air intake system replaces the restrictive factory air filter and air intake housing in some Suzuki LTR450 Quadracer models. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-1128 air intake comes with a chrome topped, over-sized cone shaped K&N high-flow air filter and a heat shield that installs into the previous air box space. Air is directed through an aerodynamically engineered intake tube into the engine's throttle body for a guaranteed power gain. The air intake system accommodates the factory air temperature sensor and crank case vent hose. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a screwdriver, ratchet set and several wrenches. This air intake cannot be sold in California. It is not legal for use in California or other states adopting California emission standards.
Application summary
| Year | Make / model |
|---|---|
| 2006-2008 | Suzuki LT-R450 QuadRacer |
Specifications
- GTIN
- 00024844263162
- Weight
- 5.61 lb
- Height
- 8.5 in
- Length
- 18.25 in
- Width
- 14.5 in
- EO
- Not in CA
- Life cycle
- Discontinued
- AAM brand code
- KAN
- Warehouse brand code
- KAN
- AAIA brand code
- BBWQ
Attributes
- Air Box Included
- No
- Air Filter Color
- Red
- Air Filter Height
- 5 in (127 mm)
- Air Filter Material
- Cotton Gauze
- Air Filter Outlet Length
- 0.625 in (16 mm)
- Air Filter Outlet Shape
- Round
- Air Filter Outlet Width
- 3 in (76 mm)
- Air Filter Washable
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- California Restricted
- Not legal for sale or use in California
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Style
- Regular
- Clamps Included
- 3
- Coupler Color/Finish
- Black
- Couplers Included
- 1
- Estimated Horsepower Gain
- 2.74 HP @ 6600 RPM
- Horse Power Increase
- 3 HP
- Intake Pipe Color / Finish
- Black
- Intake Pipe Inlet Length
- 3 in (76 mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 3 in (76 mm)
- Intake Pipe Material
- High-Density Polyethylene
- Mass Air Flow Sensor Adapter Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- Filter Is Pre-Oiled
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 8.5 in (216 mm)
- Product Box Length
- 18.25 in (464 mm)
- Product Box Width
- 14.5 in (368 mm)
- Product Style
- Motorcycle Intake System
- RPM
- 6600
- Replacement Filter
- RC-5182XD
- Street Legal In All US States
- No
- TUV Approved (Europe)
- No
- Title
- K&N 63-1128 Performance Air Intake System
- Warranty
- 1,000,000 Miles/10 Year
- Weight
- 5.6 lb (2.5 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2006-2008 Suzuki LT-R450 QuadRacer
