K&N · 63-1127

Part #: 63-1127
UPC: 024844261441

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow and delivers a guaranteed power gain.

Description:

Description

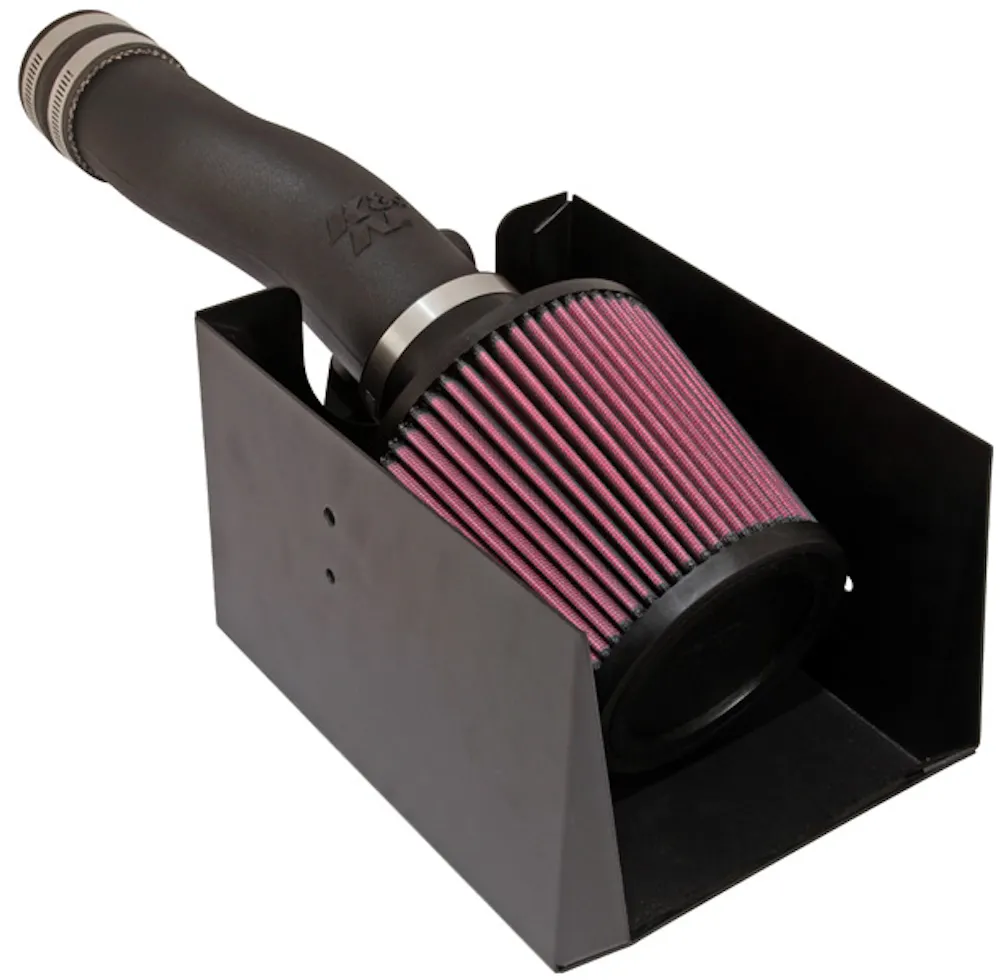

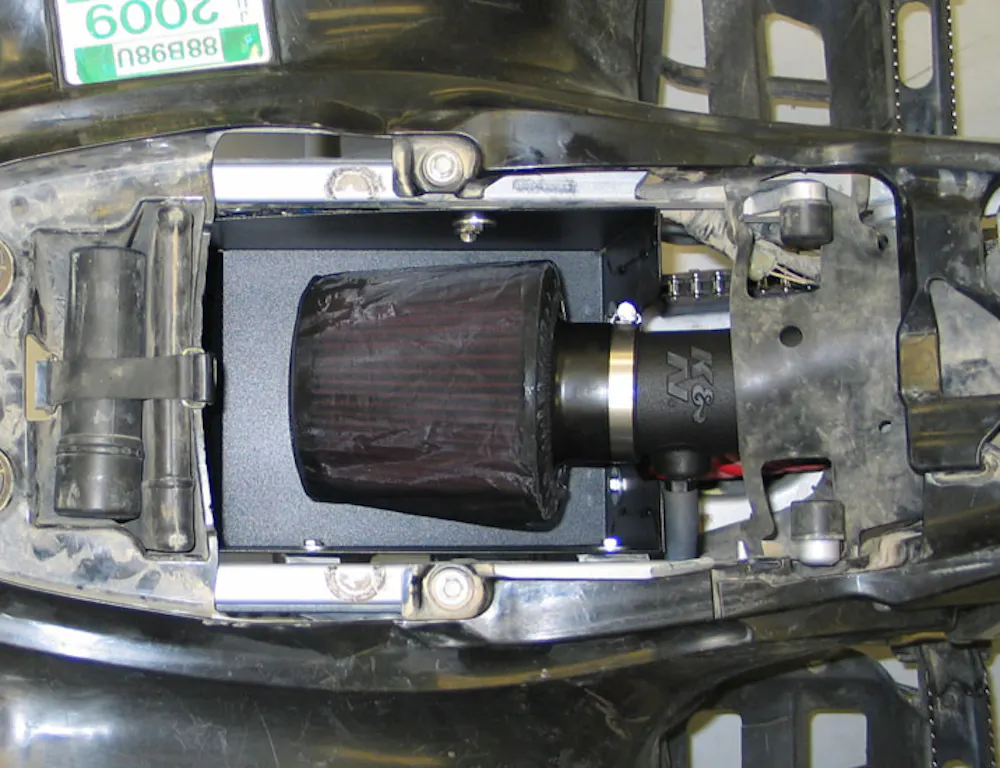

The K&N 63-1127 AirCharger air intake system replaces the restrictive factory air filter and air intake housing in some Honda TRX450R models. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-1127 air intake comes with a black rubber topped K&N high-flow air filter and a heat shield that installs into the previous air box space. Air is directed through an aerodynamically engineered intake tube into the engine's throttle body for a guaranteed power gain. The tube accommodates the factory crank case vent hose. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a couple of screwdrivers, a ratchet set and a 10 millimeter wrench. This air intake cannot be sold in California. It is not legal for use in California or other states adopting California emission standards.

Features & benefits

  • Guaranteed to increase horsepower

Application summary

Year Make / model
2004-2005 Honda TRX450R

Specifications

GTIN
00024844261441
Weight
6.6 lb
Height
8.5 in
Length
18.25 in
Width
14.5 in
EO
Not in CA
Life cycle
Discontinued
Alt. part number
63-1127
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Height
5.5 in (140 mm)
Air Filter Large End Diameter
6 in (152 mm)
Air Filter Material
Cotton Gauze
Air Filter Outlet Length
2.75 in (70 mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
2.75 in (70 mm)
Air Filter Washable
Yes
Alternate Part Number
63-1127
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Style
Regular
Clamps Included
3
Coupler Color/Finish
Black
Couplers Included
1
Estimated Horsepower Gain
3.03 HP @ 6200 RPM
Horse Power Increase
3 HP
Intake Pipe Color / Finish
Black
Intake Pipe Inlet Length
2.75 in (70 mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
2.75 in (70 mm)
Intake Pipe Material
High-Density Cross-Linked Polyethylene
Intake Pipe Ports
All intake tube ports needed for the specified applications are included
Mass Air Flow Sensor Adapter Included
No
Mounting Hardware Included
Yes
Oil Included
Yes
Package Material
Paperboard
Package Type
Box
Product Box Height
8.5 in (216 mm)
Product Box Length
18.25 in (464 mm)
Product Box Width
14.5 in (368 mm)
Product Style
Motorcycle Intake System
RPM
6200
Replacement Filter
RU-4960XD
Street Legal In All US States
No
TUV Approved (Europe)
No
Title
K&N 63-1127 Performance Air Intake System
Warranty
No-Hassle Lifetime Limited
Weight
6.6 lb (3 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2004-2005 Honda TRX450R
