K&N · 63-1119

Part #: 63-1119
UPC: 024844192943

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow and delivers a guaranteed power gain.

Description:

This part number superseded RK-3919.

Description

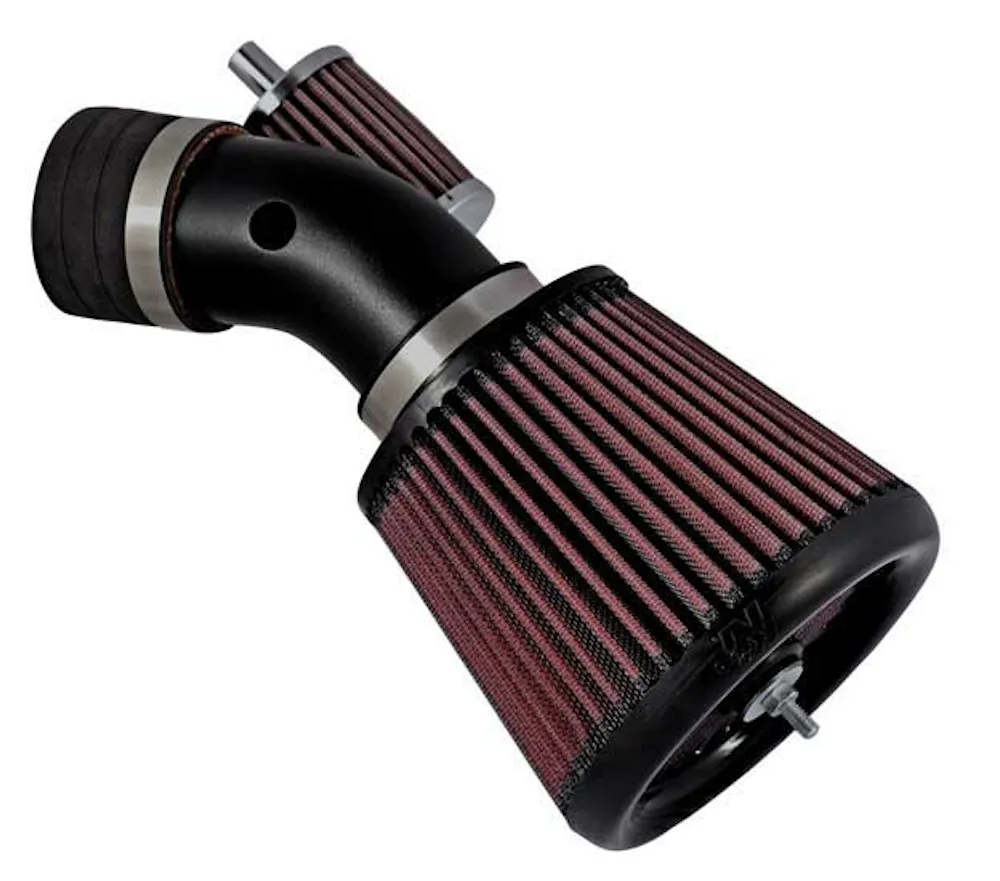

The K&N 63-1119 AirCharger air intake system replaces the restrictive factory air filter and air intake housing in some Yamaha YXR660 Rhino models. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-1119 air intake comes with a K&N XStream Top air filter designed for higher air flow and durability. Air is directed through a black powder coated aluminum intake tube and into the engine's throttle body for a guaranteed power gain. The tube accommodates the factory side vent hose as well as a supplied small air filter for the crank case vent hose. The oversized, inverted cone-shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a screwdriver, ratchet set and several wrenches. This air intake cannot be sold in California. It is not legal for use in California or other states adopting California emission standards.

Application summary

Year Make / model
2004-2007 Yamaha YXR66F Rhino 660
2007 Yamaha YXR66F Rhino 660 Ducks Unlimited
2006-2007 Yamaha YXR66F Rhino 660 Exploring Edition
2006-2007 Yamaha YXR66F Rhino 660 Special Edition
2007 Yamaha YXR66F Rhino 660 Sport Edition

Specifications

GTIN
00024844192943
Weight
5.42 lb
Height
8.5 in
Length
18.25 in
Width
14.5 in
EO
Not in CA
Life cycle
Discontinued
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Height
6.125 in (156 mm)
Air Filter Large End Diameter
6 in (152 mm)
Air Filter Material
Cotton Gauze
Air Filter Outlet Length
2.438 in (62 mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
2.438 in (62 mm)
Air Filter Washable
Yes
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Style
Regular
Clamps Included
3
Coupler Color/Finish
Black
Couplers Included
1
Estimated Horsepower Gain
4.35 HP @ 25 MPH
Horse Power Increase
4 HP
Intake Pipe Color / Finish
Black
Intake Pipe Inlet Length
2.438 in (62 mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
2.438 in (62 mm)
Intake Pipe Material
Aluminum
Mass Air Flow Sensor Adapter Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
8.5 in (216 mm)
Product Box Length
18.25 in (464 mm)
Product Box Width
14.5 in (368 mm)
Product Style
Motorcycle Intake System
Replacement Filter
RX-3810XD
Street Legal In All US States
No
TUV Approved (Europe)
No
Title
K&N 63-1119 Performance Air Intake System
Warranty
1,000,000 Miles/10 Year
Weight
5.4 lb (2.5 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2004-2007 Yamaha YXR66F Rhino 660; 2007 Yamaha YXR66F Rhino 660 Ducks Unlimited; 2006-2007 Yamaha YXR66F Rhino 660 Exploring Edition; 2006-2007 Yamaha YXR66F Rhino 660 Special Edition; 2007 Yamaha YXR66F Rhino 660 Sport Edition
