K&N · 63-1016

Part #: 63-1016
UPC: 024844043580

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; AIRCHARGER; HONDA CIVIC VTEC; 96-99

Description:

Description

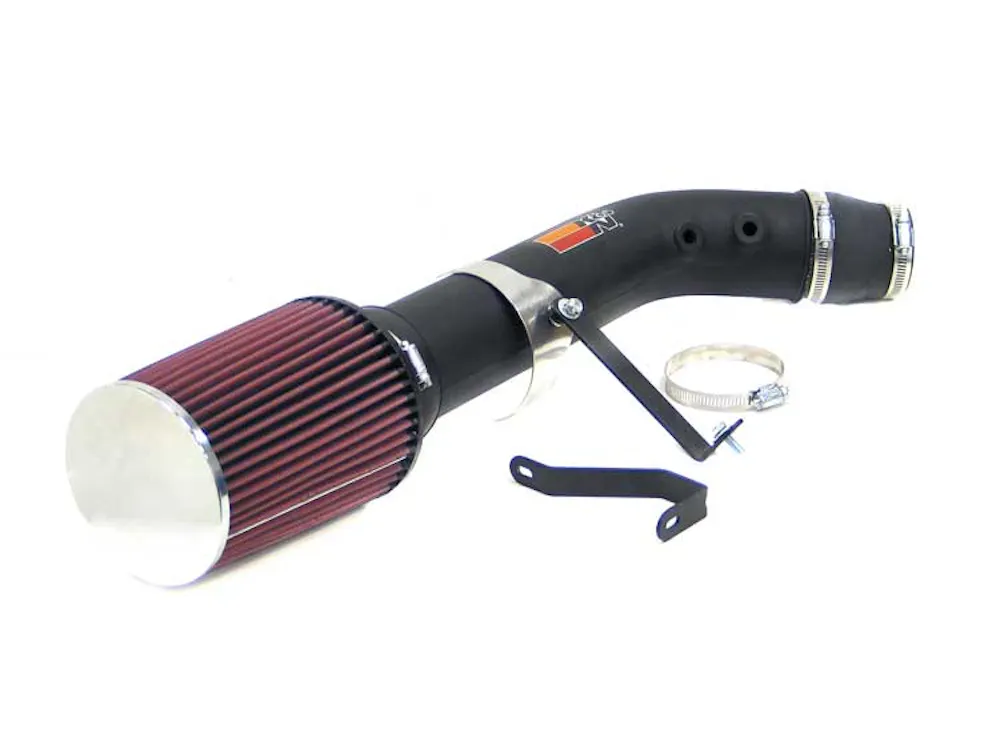

The K&N AirCharger 63-1016 air intake system replaces the restrictive factory air filter and air intake housing in some Honda Civic models. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your Civic's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-1016 air intake comes with a chrome topped K&N high-flow air filter installed into the previous air box space that allows air to be directed through a custom molded intake tube into the engine's throttle body for a guaranteed power gain. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only pliers, a couple of screwdrivers, a socket set and several wrenches. This air intake cannot be sold in California. It is not legal for use in California or other states adopting California emission standards.

Features & benefits

  • Guaranteed Horsepower Gain
  • Designed To Improve Throttle Response And Engine Sound
  • Easy To Install
  • Replaces Entire Factory Air Intake System
  • Lasts Up To 100 000 Miles Before Service Required

Information

Guaranteed Horsepower Gain; Designed To Improve Throttle Response And Engine Sound; Easy To Install; Replaces Entire Factory Air Intake System; Lasts Up To 100 000 Miles Before Service Required

Application summary

Year Make / model
1996-1999 Honda Civic

Specifications

GTIN
00024844043580
Weight
4.01 lb
Height
12.25 in
Length
20.25 in
Width
12.25 in
EO
Not in CA
Life cycle
Discontinued
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
No
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
6.500 in. (165mm)
Air Filter Large End Diameter
5.000 in. (127mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
3.000 in. (76mm)
Air Filter Oulet Width
3.000 in. (76mm)
Air Filter Outlet Length
3.000 in. (76mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
3.000 in. (76mm)
Air Filter Washable
Yes
Base Inside Diameter
0.000 in. (0mm)
Base Outside Diameter
5.000 in. (127mm)
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
4
Clamp Style
Regular
Clamps Included
4
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
1
Estimated Horse Power Gain
5.61 HP @ 7200 RPM
Estimated Horsepower Gain
5.61 HP @ 7200 RPM
Filter Color
Red
Filter Material
Cotton Gauze
Flange Angle
0 Degree
Flange Center to Center
0 in (0 mm)
Flange Inside Diameter
3.000 in. (76mm)
Flange Length
0.750 in. (19mm)
Flange/Bore Center to Center
0.000 in. (0mm)
Flanges
1
Height
6.5 in (165 mm)
Height (in.)
6.50 in. (165mm)
Horse Power Increase
6 HP
Inner Wire
No
Intake Pipe Color
Black
Intake Pipe Color / Finish
Black
Intake Pipe Material
High-Density Cross-Linked Polyethylene
Item Height
6.500 in. (165mm)
Item Weight
4.000 lbs. (1.8 kg)
Mass Air Flow Sensor Adapter Included
Mass Air Flow Sensor Adapter Included When Required
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Number of Flanges
1
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
12.250 in. (311mm)
Product Box Length
20.250 in. (514mm)
Product Box Width
12.250 in. (311mm)
Product Style
63 Series Aircharger Kits
RPM
7200
Replacement Filter
RF-1030
Street Legal
No
Street Legal In All US States
No
TUV Approved (Europe)
No
Title
K&N 63-1016 Performance Air Intake System
Top Inside Diameter
0.000 in. (0mm)
Top Material
Chrome
Top Material/Finish
Chrome
Top Outside Diameter
4.500 in. (114mm)
Top Style
Metal
Warranty
1,000,000 Miles/10 Year
Weight
4 lb (1.8 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1996-1999 Honda Civic
