K&N · 57S-9501

Part #: 57S-9501
UPC: 024844257178

Loading availability... Log in for inventory
Notify me when this item is in stock.

This is a message from K&N on the BRAND, not a CAtegory.
This is a Test Product Message for the Air Intakes Category!

Description: Performance Air Intake System; K&N's easy-to-install performance air box replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain.

Description:

Description

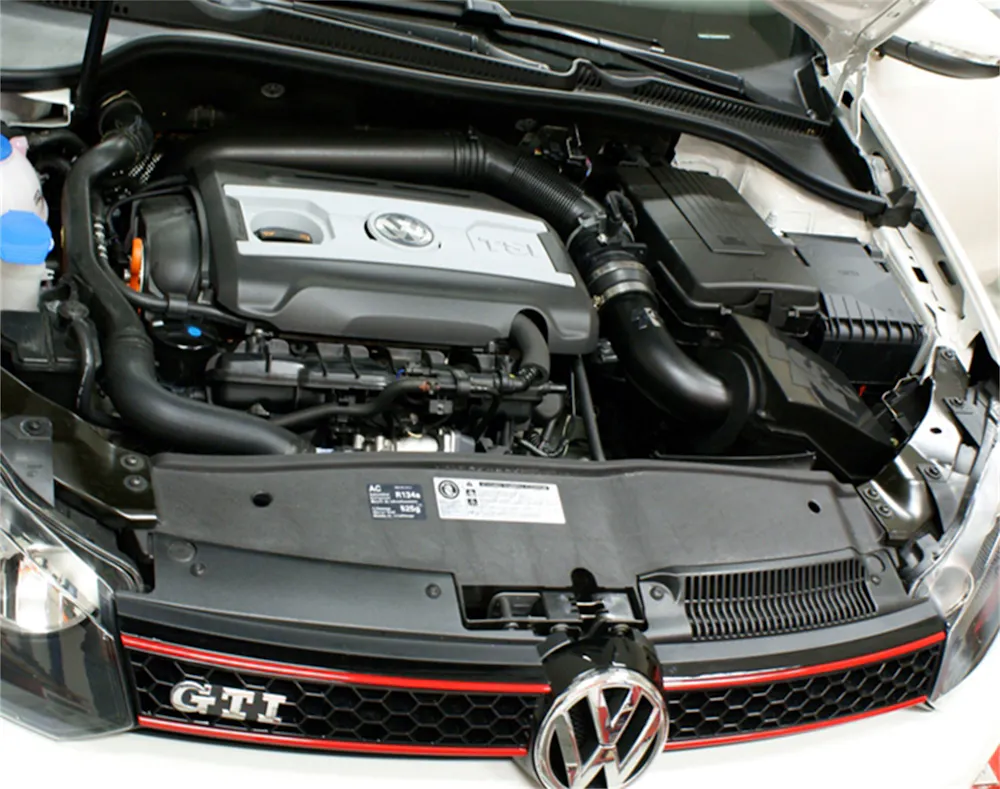

The K&N 57S-9501 Performance Airbox is an air intake system that replaces the restrictive factory air filter and air intake assembly. K&N intakes are designed to dramatically reduce air flow restriction as well as smooth and straighten air flow. This allows your engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 57S-9501 air intake comes with an oversized cone shaped K&N high-flow air filter, a fully enclosed injection-molded air box, a mandrel-bent aluminum air intake tube and a flexible air intake hose. The aluminum air intake tube is powder coated in a durable textured black finish. The performance air box has a removable lid for easy access to the filter when cleaning is required. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake system is relatively easy to install usually in 90 minutes or less using the vehicle's existing factory mounting points with commonly available tools. K&N builds these air intake systems to last for the life of your vehicle. Some K&N 57S Series Performance Airboxes are compliant with the latest TUV emissions and sound regulations. Check the K&N catalog or website for vehicle applications and specific TUV status for each vehicle and air intake.

Features & benefits

  • Guaranteed to increase horsepower
  • Designed to improve torque and acceleration
  • Replaces entire factory air intake assembly
  • Washable and reusable lifetime air filter
  • Easy to install, usually in 90 minutes or less
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • K&N Million Mile Limited Warranty

Information

Associated products: RX-4990DK Air Filter Wrap, RX-4990DL Air Filter Wrap, RX-4990DR Air Filter Wrap, RX-4990DY Air Filter Wrap, RU-5061 Universal Clamp-On Air Filter, 99-5000 Filter Care Service Kit Aerosol

Application summary

Year Make / model
2008-2012 Audi A3
2011-2013 Audi TT
2010-2014 Seat Altea XL
2009-2012 Seat Leon
2011-2012 Volkswagen Beetle
2013-2015 Volkswagen CC
2010 Volkswagen Jetta
2009-2010 Volkswagen Passat
2010-2012 Volkswagen Passat CC
2009-2014 Volkswagen Tiguan

Specifications

GTIN
00024844257178
Weight
5.5 lb
Height
12.5 in
Length
20.25 in
Width
12.25 in
EO
Not in CA
Life cycle
Available to Order
Alt. part number
57S-9501
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

AAM Standard Pack
1
Air Box Included
Yes
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
6.500 in. (165mm)
Air Filter Large End Diameter
6.000 in. (152mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
4.375 in. (111mm)
Air Filter Oulet Width
4.375 in. (111mm)
Air Filter Outlet Length
4.375 in. (111mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
4.375 in. (111mm)
Air Filter Washable
Yes
Alternate Part Number
57S-9501
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Steel
Clamp Quantity
3
Clamp Style
Regular
Clamps Included
3
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
1
Filter Color
Red
Filter Material
Cotton Gauze
Intake Pipe Color
Textured Black
Intake Pipe Color / Finish
Textured Black
Intake Pipe Inlet Length
4.375 in. (111mm)
Intake Pipe Inlet Shape
Round
Intake Pipe Inlet Width
4.375 in. (111mm)
Intake Pipe Material
Aluminum
Intake Pipe Ports
All intake tube ports needed for the specified applications are included
Item Weight
5.500 lbs. (2.5 kg)
Mass Air Flow Sensor Adapter Included
No
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
12.000 in. (305mm)
Product Box Length
20.000 in. (508mm)
Product Box Width
12.000 in. (305mm)
Product Style
57i Series International Kits
Replacement Filter
RU-5061
Retail Packaging
No
Street Legal
No
Street Legal In All US States
Not legal for sale or use in California on any pollution controlled motor vehicle.
TUV Approved (Europe)
See Application Link Above
TUV Certificate Number
TU-025704-A0-206
Title
K&N 57S-9501 Performance Air Intake System
Type
Gen II
Warranty
No-Hassle Lifetime Limited
Weight
5.5 lb (2.5 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2008-2012 Audi A3; 2011-2013 Audi TT; 2010-2014 Seat Altea XL; 2009-2012 Seat Leon; 2011-2012 Volkswagen Beetle; 2013-2015 Volkswagen CC; 2010 Volkswagen Jetta; 2009-2010 Volkswagen Passat; 2010-2012 Volkswagen Passat CC; 2009-2014 Volkswagen Tiguan
