JKS Manufacturing / JKSOGS962
Part #: JKSOGS962
UPC: 814897010796
Loading...
Notify me when this item is in stock.
Description: Hd Chassis Reinforcement Plates; Shop JKS Front unibody reinforcement plates for Jeep Cherokee XJ and Comanche MJ. Weld-on heavy-duty steel plates strengthen chassis rails and steering box mounts.
Description:
Description

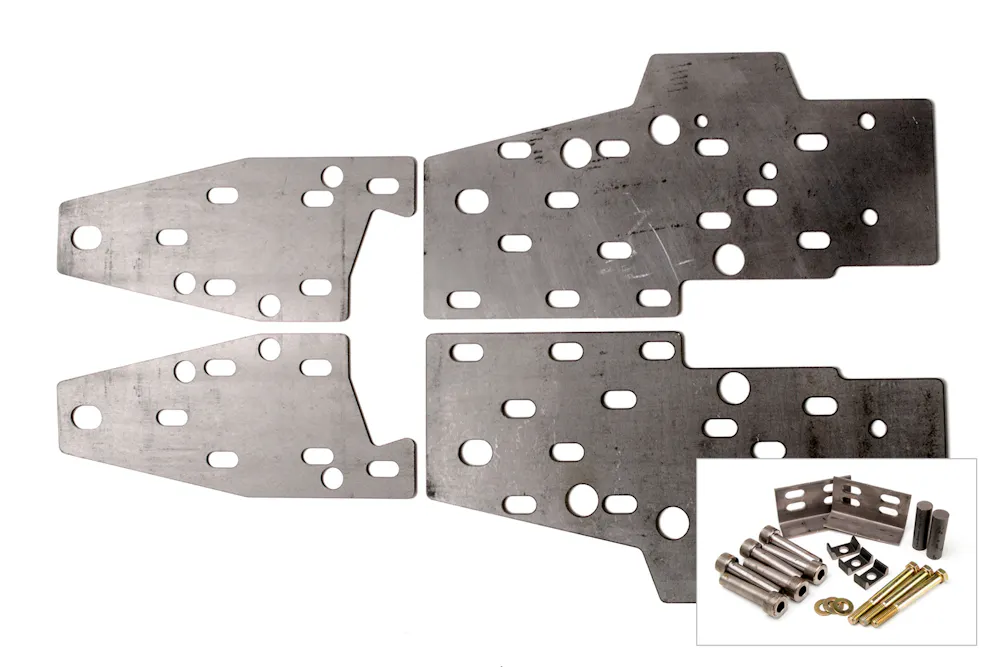

Add structural reinforcement to your Jeep Cherokee XJ with JKS Unibody and Steering Reinforcement Braces. The weld-on system includes inner and outer chassis reinforcement plates; steering box brace, support sleeves, tow hook support bracket and hardware. The unibody chassis on Jeep Cherokee XJ models is constructed of multiple sheet metal layers that are formed and spot welded together. When subjected to off-road torsional forces, the chassis develops small fatigue fractures in high stress locations. The power steering gear mount is particularly vulnerable, due to the tremendous leverage required to control large tires in off-road conditions. Plates attach directly to inside and outside of chassis rail. Heavy gauge steel construction. Bare metal. Weld-on.
Features & benefits
- Chassis plates reinforce most vulnerable section of chassis to prevent failure of vital steering function
- Provides additional steering gear support necessary for large tires and off-road conditions
- Ensures proper
Application summary
| Year | Make / model |
|---|---|
| 1984-2001 | Jeep Cherokee |
| 1986-1992 | Jeep Comanche |
Specifications
- GTIN
- 00814897010796
- Weight
- 15.5 lb
- Height
- 3 in
- Length
- 16 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- JKS
- Warehouse brand code
- JWS
- AAIA brand code
- BKWD
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Title
- Front Unibody Reinforcement Plates
- Wholesale Only
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1984-2001 Jeep Cherokee; 1986-1992 Jeep Comanche
