Part #: FOX88326078
UPC: 711745590489

Loading availability... Loading...
Notify me when this item is in stock.

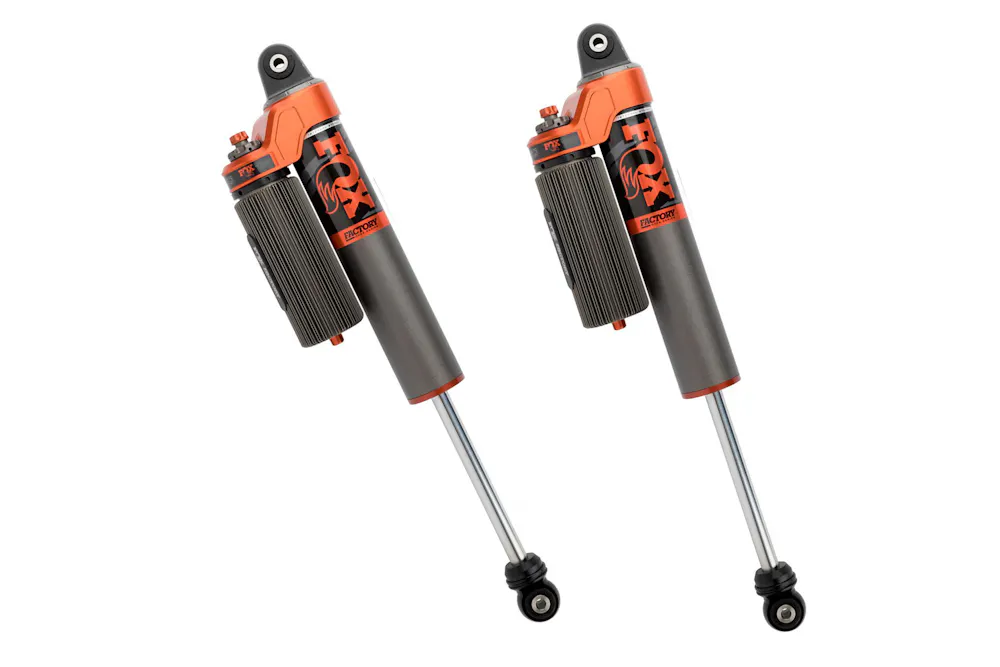

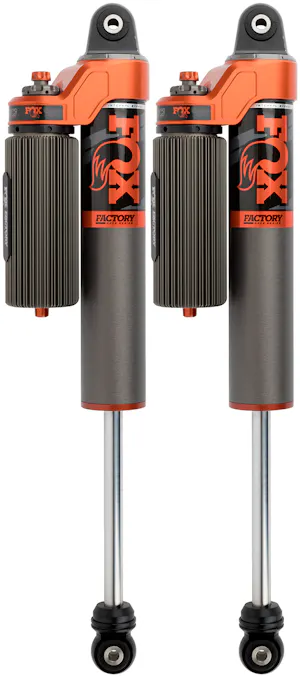

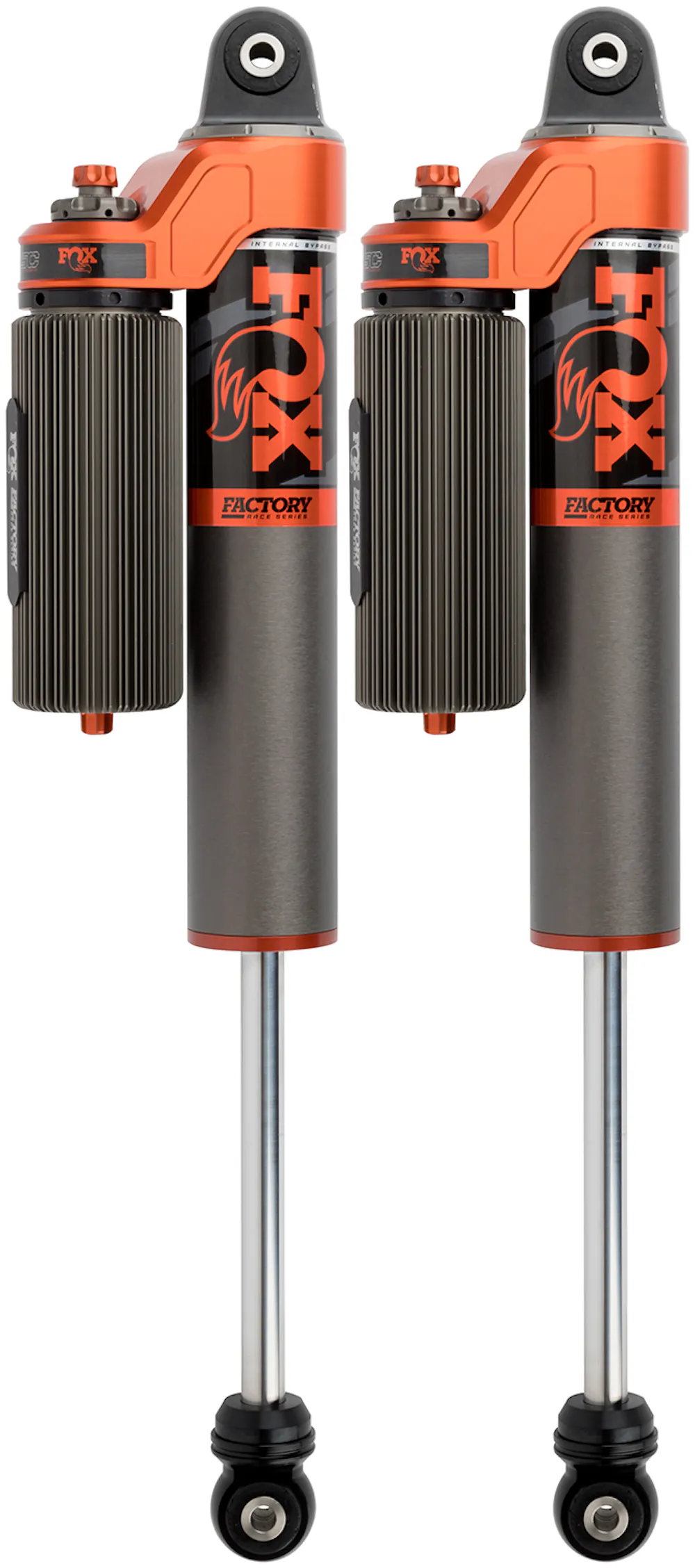

Description: FOX FACTORY RACE SERIES 3.0 INTERNAL BYPASS PIGGYBACK SHOCK (PAIR) - ADJUSTABLE ; Application specific valving to maximize performance

Description:

This item is a component of kit JSPEC161FRS with these other items: FOX88326077 JKS1616 JKS1625 JKS1661 JKS1666 JSPEC1312 JSPEC1352 JSPEC1359

Description

If you’re building the ultimate Jeep Wrangler JL, install FOX Factory Race Series 3.0 Internal Bypass shocks. PN 883-26-078 shocks deliver race-dominating, extreme-duty performance on all terrains. Designed for bolt-on installation on Jeep Wrangler JLs with JKS 3.5” lift kits, the remote reservoirs feature connect via hose to new recirculating bridges. Separate high and low-speed compression adjustments help you fine tune performance to your exact driving style and vehicle specs. The remote reservoirs feature finned bodies to help dissipate heat and maintain optimal fluid temps. Inside the shock bodies, position-sensitive internal bypass technology provides a plush, predictable ride during normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs. Additional features include large 3” diameter hard-anodized, aluminum-bodies 7/8” shafts, race-bred pistons and valving, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals. You won’t find a more capable off-road shock for your Jeep Wrangler JL. On road, expect a firm ride quality compared to JKS JSPEC, FOX Performance 2.0 and FOX Performance Elite shocks. Sold in pairs. Use in conjunction with FOX88326077 front shocks sold separately.

Features & benefits

  • Durable 2.5" hard anodized aluminum body resists rust over time
  • External reservoir design separates shock oil from the high-pressure nitrogen for long lasting performance
  • Dual Speed Compression Adjuster allows you to dial in the ride of your Jeep and easily adjust the stiffness or softness of the suspension
  • Massive 7/8" diameter hard chrome plated heat-treated alloy steel shock shaft to prevent bending or damage upon impacts

Application summary

Year Make / model
2018-2025 Jeep Wrangler
Component of kit JSPEC161FRS
JKS Manufacturing FOX88326077

Brand: JKS Manufacturing

Part Number: FOX88326077

Loading availability... Loading...
Component of kit JSPEC161FRS
JKS Manufacturing JKS1616

Brand: JKS Manufacturing

Part Number: JKS1616

Loading availability... Loading...
Component of kit JSPEC161FRS
JKS Manufacturing JKS1625

Brand: JKS Manufacturing

Part Number: JKS1625

Loading availability... Loading...
Component of kit JSPEC161FRS
JKS Manufacturing JKS1661

Brand: JKS Manufacturing

Part Number: JKS1661

Loading availability... Loading...
Component of kit JSPEC161FRS
JKS Manufacturing JKS1666

Brand: JKS Manufacturing

Part Number: JKS1666

Loading availability... Loading...
Component of kit JSPEC161FRS

Brand: JKS Manufacturing

Part Number: JSPEC1312

Loading availability... Loading...
Component of kit JSPEC161FRS

Brand: JKS Manufacturing

Part Number: JSPEC1352

Loading availability... Loading...
Component of kit JSPEC161FRS

Brand: JKS Manufacturing

Part Number: JSPEC1359

Loading availability... Loading...

Specifications

GTIN
00711745590489
Weight
45 lb
Height
12 in
Length
39 in
Width
20 in
Life cycle
Discontinued
AAM brand code
JKS
Warehouse brand code
JWS
AAIA brand code
BKWD

Attributes

California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Lower Mount Type
Eyelet
Shock Compressed Length
18.93
Shock Extended Length
29.78
Title
FOX FACTORY RACE SERIES 3.0 INTERNAL BYPASS PIGGYBACK SHOCK (PAIR) - ADJUSTABLE
Travel
10.85
Upper Mount Type
Eyelet
Wholesale Only
No

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2018-2025 Jeep Wrangler
