JKS Manufacturing · FOX88326077

Part #: FOX88326077
UPC: 711745590472

Loading availability... Loading...
Notify me when this item is in stock.

Description: NF: Kit: 2018-2027 Jeep JL, Front, Internal Bypass, 3.0 Series, R/R, 3.5-4.5" Li; Upgrade your 2018–2027 Jeep Wrangler JL with FOX 3.0 Factory Race front shocks. Internal bypass, DSC adjustability, and finned reservoirs for ultimate off-road performance.

Description:

This item is a component of the following kits: JSPEC161FRS, JSPEC171FRS

Description

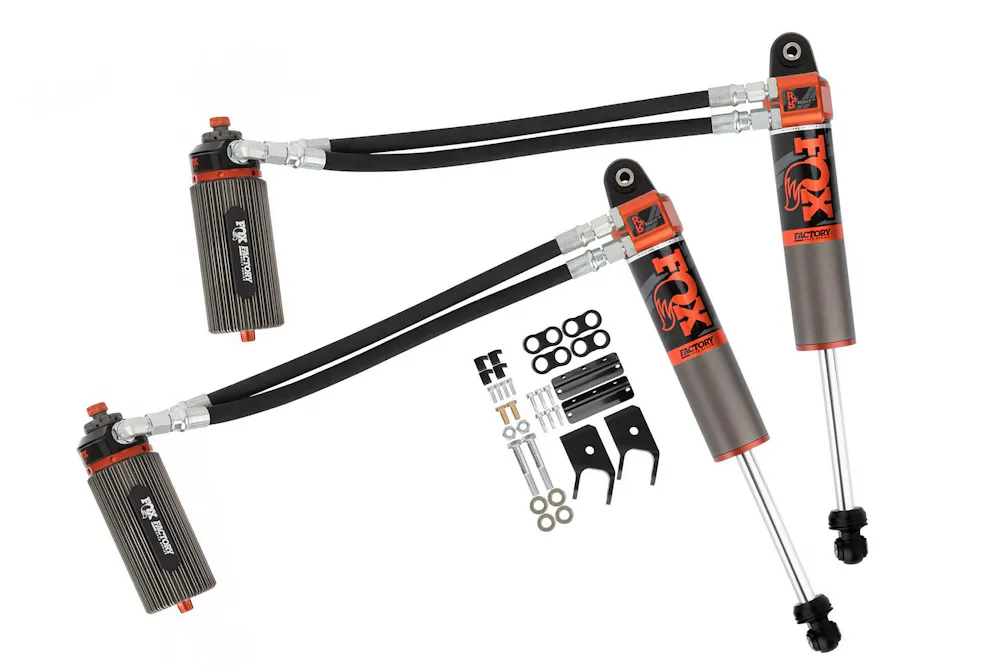

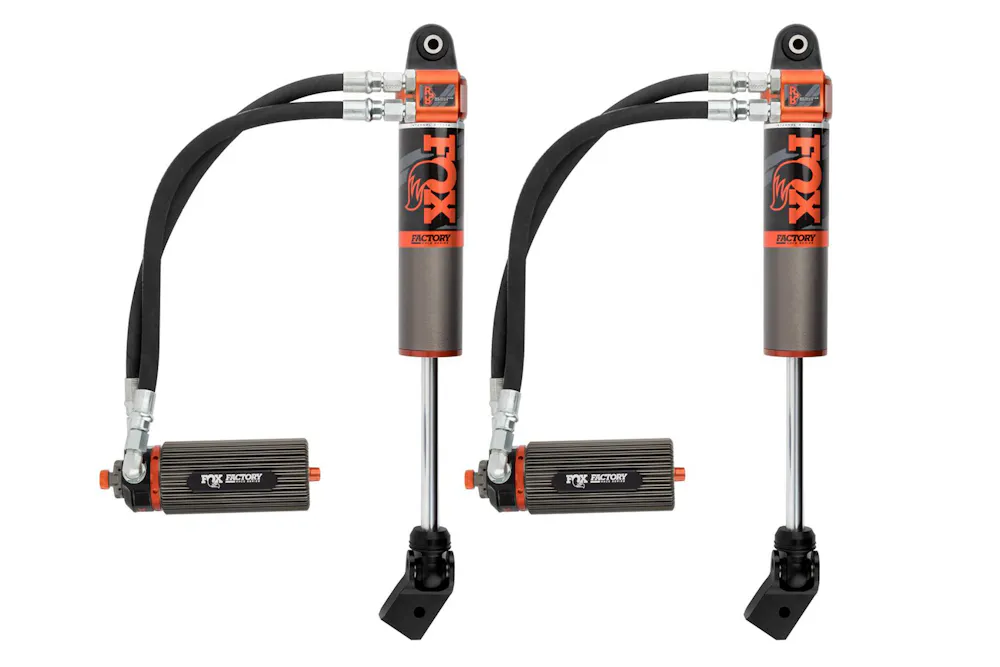

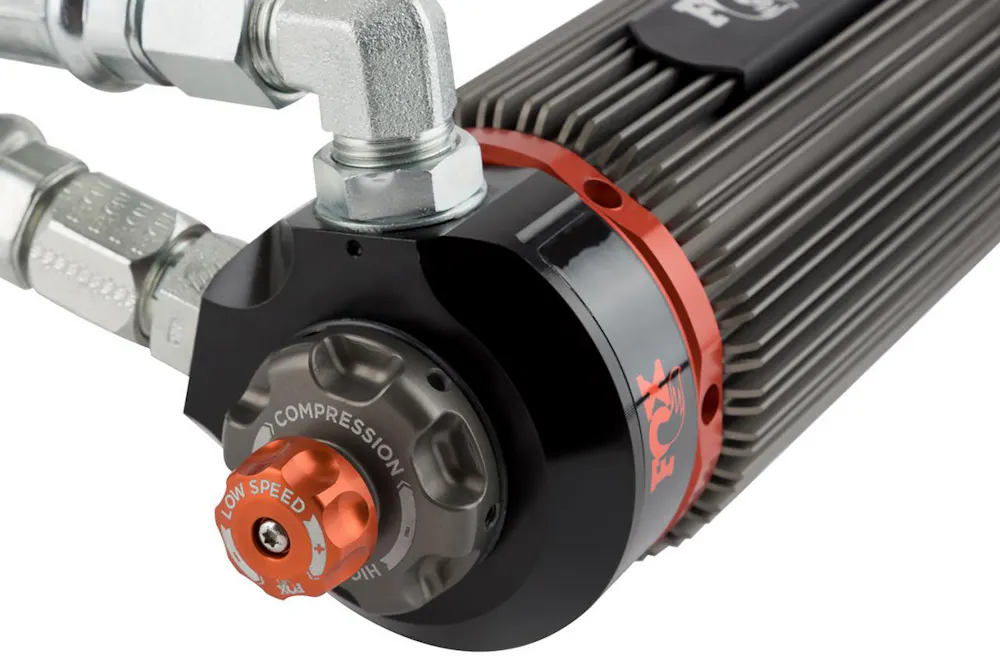

If you're building the ultimate Jeep Wrangler JL, install FOX Factory Race Series 3.0 Internal Bypass shocks. PN 883-26-077 front position shocks deliver race-dominating, extreme-duty performance on all terrains. Designed for bolt-on installation on Jeep Wrangler JLs with JKS 3.5-4.5" lift kits, the remote reservoirs feature connect via hose to new recirculating bridges. Separate high and low-speed compression adjustments help you fine tune performance to your exact driving style and vehicle specs. The remote reservoirs feature finned bodies to help dissipate heat and maintain optimal fluid temps. Inside the shock bodies, position-sensitive internal bypass technology provides a plush, predictable ride during normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs. Additional features include large 3" diameter hard-anodized, aluminum-bodies 7/8" shafts, race-bred pistons and valving, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton seals. You won’t find a more capable off-road shock for your Jeep Wrangler JL.

Features & benefits

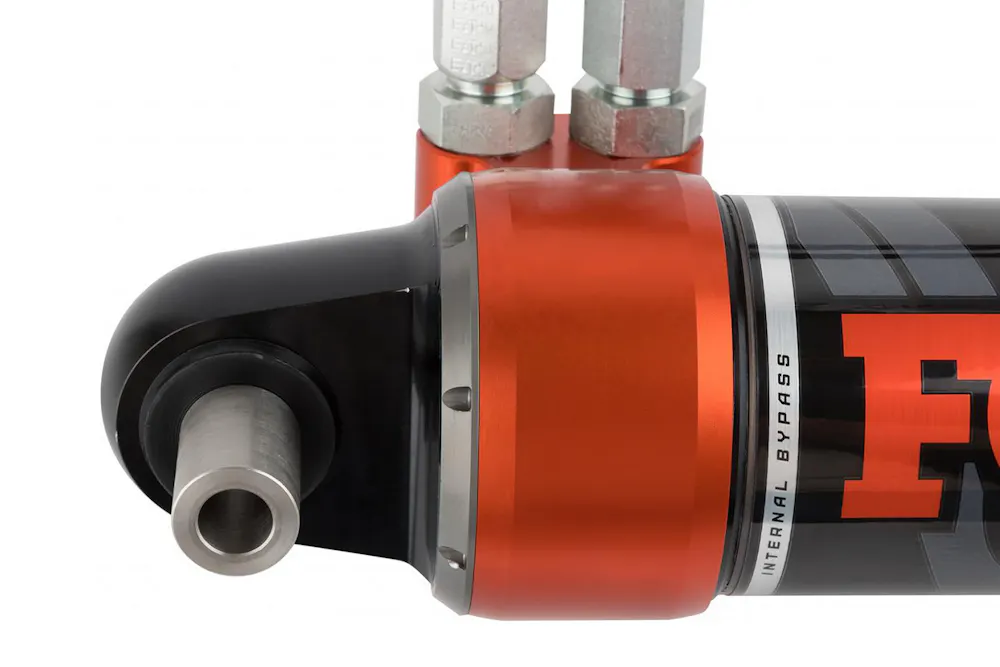

    • Position-sensitive internal bypass technology allows for a plush, predictable ride over normal off-road driving conditions.
    • Counteract harsh bottom-outs or top-outs that could buck you off the trail.
    • Durable 3.0"

Application summary

Year Make / model
2020-2023 Jeep Gladiator
2018-2026 Jeep Wrangler
This item is a component of kit: JKS Manufacturing JSPEC161FRS
JKS Manufacturing JSPEC161FRS

Brand: JKS Manufacturing

Part Number: JSPEC161FRS

Loading availability... Loading...
This item is a component of kit: JKS Manufacturing JSPEC171FRS
JKS Manufacturing JSPEC171FRS

Brand: JKS Manufacturing

Part Number: JSPEC171FRS

Loading availability... Loading...

Specifications

GTIN
00711745590472
Weight
45 lb
Height
12 in
Length
39 in
Width
20 in
Life cycle
Discontinued
AAM brand code
JKS
Warehouse brand code
JWS
AAIA brand code
BKWD

Attributes

California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Lower Mount Type
Eyelet
Shock Compressed Length
16.98
Shock Extended Length
27.70
Title
FOX FACTORY RACE SERIES 3.0 INTERNAL BYPASS RESERVOIR SHOCK (PAIR) - ADJUSTABLE
Travel
10.72
Upper Mount Type
Eyelet
Wholesale Only
No

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2020-2023 Jeep Gladiator; 2018-2026 Jeep Wrangler
