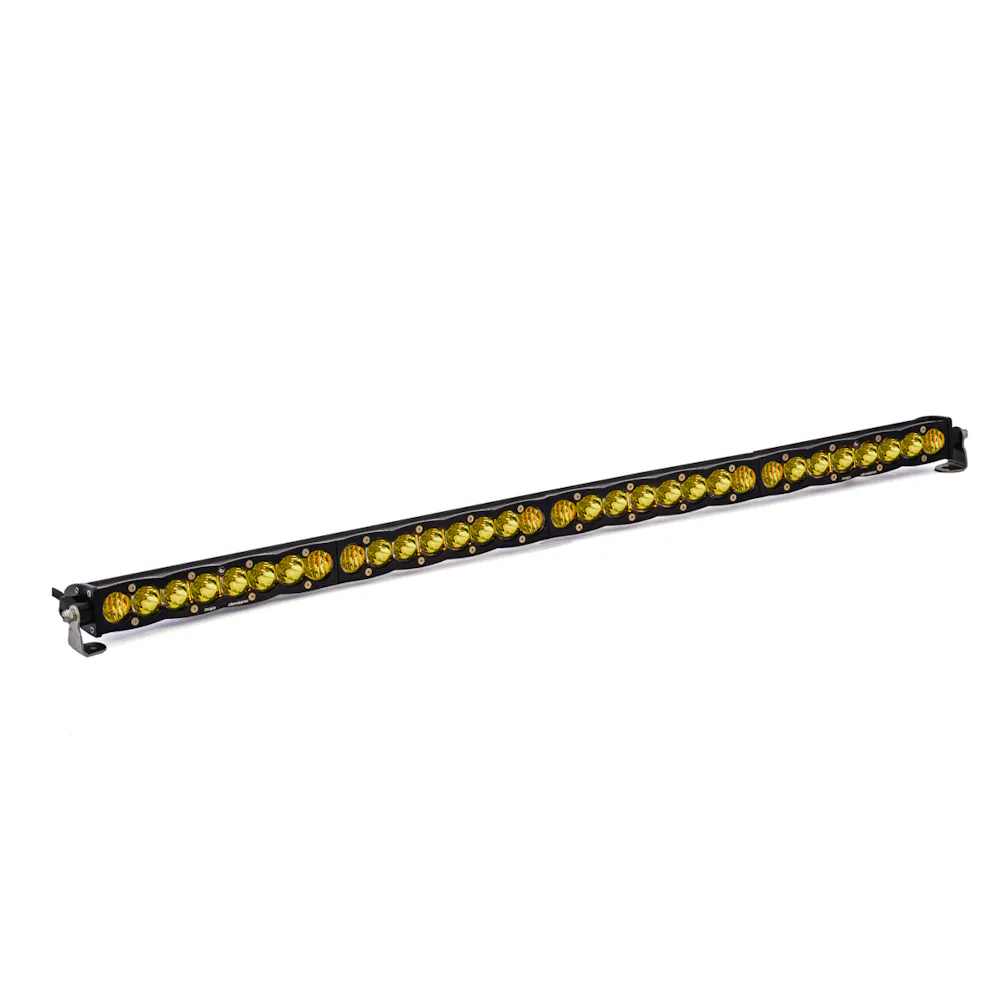

JKS Manufacturing · BJD704013

Baja Designs latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 25,312 lumens of pure power, low amp draw of 16.23 amps, and nearly 50,000 hours of LED life. The S8 also features upgraded reflectors, an amber backlit feature, and new scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!

Light Pattern:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Specifications:

• Lumens: 25,312 Utilizing 32 Cree LEDs
• Wattage/Amps: 224W / 16.23A
• Dimensions: 40 x 3 x 1.6 inch
• Weight: 8.65 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft and Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Includes:
S8 40 inch LED Light Bar
Mounting Brackets
