JE Pistons / SRP / J714F8-4030-5
Part #: J714F8-4030-5
UPC: 193564222084
Loading...
Notify me when this item is in stock.

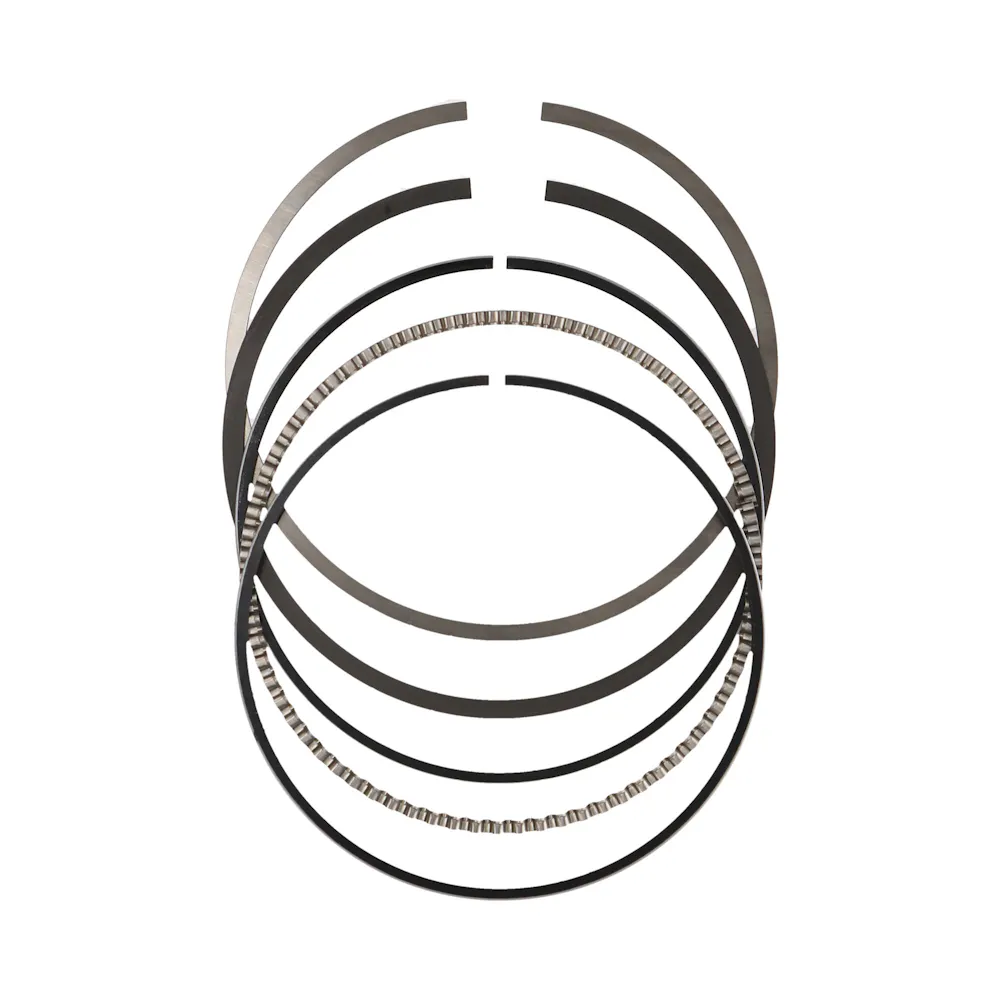

Description: Piston Ring Set, 8 Cyl., File Fit, Each.; Piston Ring Set, 8 Cyl., File Fit, 0.043 in. Carbon Steel Plasma Moly Top Ring, 0.043 in. Ductile Iron Phosphate Second Ring, 0.1181 in. Carbon Steel Chrome Standard Tension Oil Ring, Each.
Description:
Description
JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.
Features & benefits
- Highest quality ductile iron top ring with plasma-moly inlay
- Taper faced reverse torsional second rings
- combined with standard or low tension oil rings
Specifications
- GTIN
- 00193564222084
- Weight
- 1.5 lb
- Height
- 2 in
- Length
- 11 in
- Width
- 5.5 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Bore Diameter
- 102.36
- Bore Diameter - Web
- 4.030 IN / 102.36 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>Accessories>Pro Seal Piston Rings
- EBAY Category ID
- 33623
- Engine Type
- ICE
- File Fit
- Yes
- Industry
- Automotive
- Oil Ring Axial Height
- 3.00
- Oil Ring Radial Width
- 0.152
- Oil Ring Thickness
- 0.118
- Out of Stock Message
- Call for Availability
- Product Type
- Engine Piston Ring Set
- Ring Set Thickness
- 0.0430 in. Top x 0.0430 in. 2nd x 0.118 in. Oil
- Ring Type
- 3 Ring
- Second Compression Ring Thickness
- 0.0430
- Second Ring Axial Height
- 0.043
- Second Ring Facing Material
- Phosphate
- Second Ring Material
- Ductile Iron
- Second Ring Radial Width
- 0.170
- Second Ring Shape
- Napier, Back Cut, Neutral
- Third Ring Facing Material
- Carbon Steel
- Third Ring Material
- Carbon Steel
- Third Ring Shape
- Full Seal, Flex Vent
- Title
- Piston Ring Set - 4.030 in. Bore - 0.0430 in. Top / 0.0430 in. 2nd / 0.118 in. Oil - 8 Cyl.
- Title - Web
- Piston Ring Set - 4.030 in. Bore - 0.0430 in. Top / 0.0430 in. 2nd / 0.118 in. Oil - 8 Cyl.
- Top Compression Ring Thickness
- 0.0430
- Top Ring Axial Height
- 0.043
- Top Ring Facing Material
- Plasma Moly
- Top Ring Material
- Carbon Steel
- Top Ring Radial Width
- 0.161
- Top Ring Shape
- Flat Face, Torsional
Fitment status
This product is universal and will fit your application.
