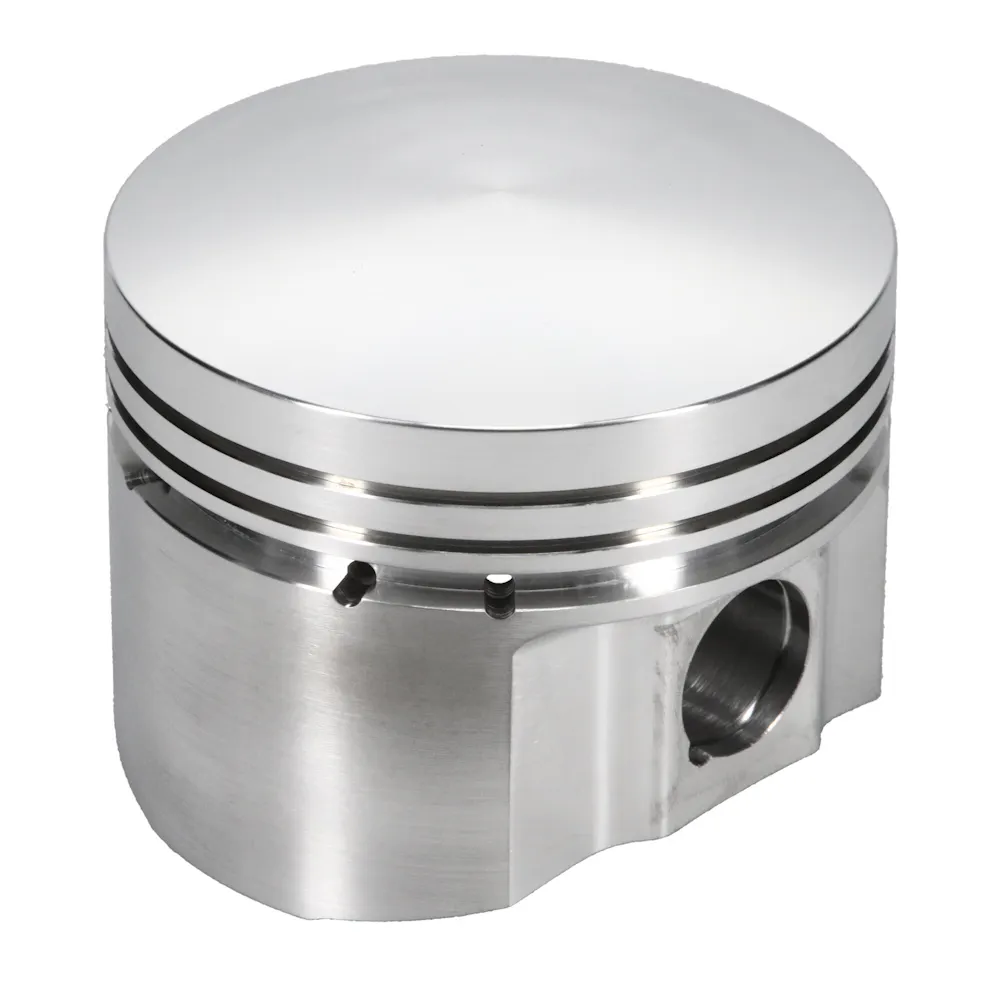

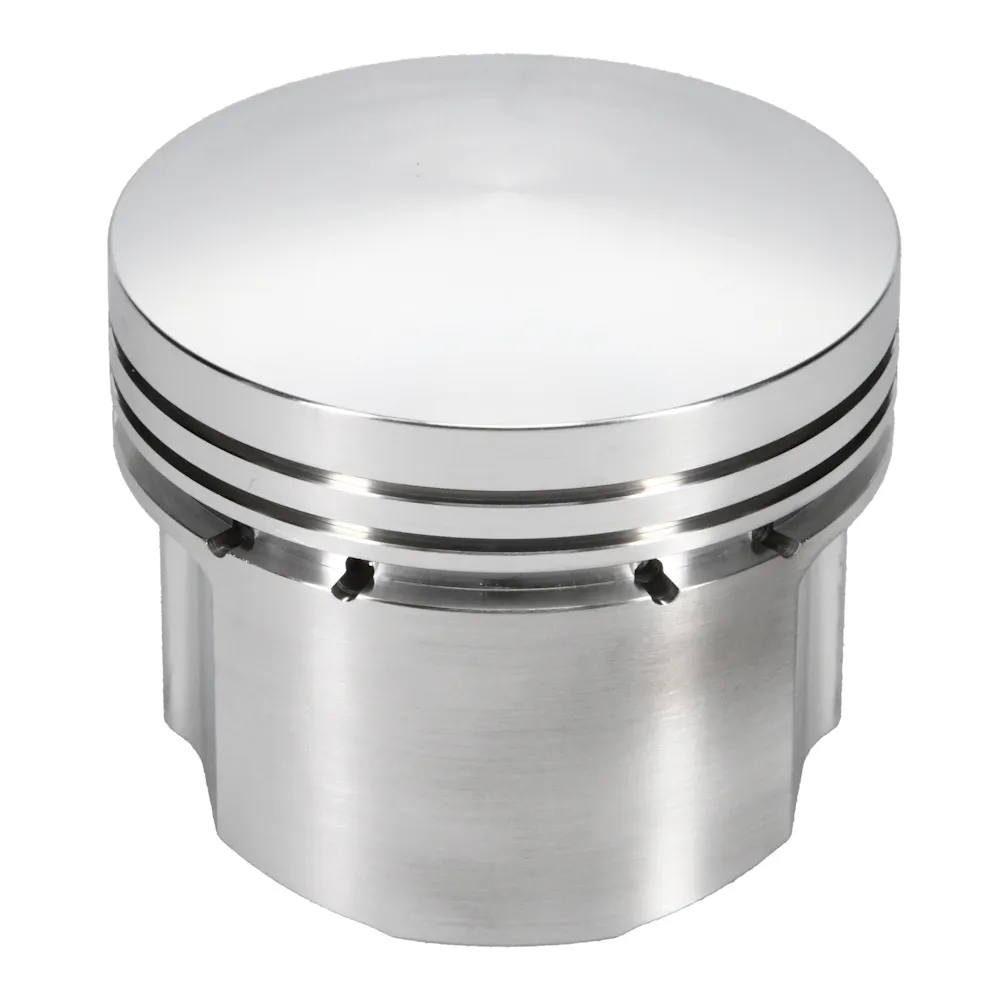

JE Pistons / SRP · 371828
Part #: 371828
UPC: 193564217868
Log in for inventory
Notify me when this item is in stock.
Description: Piston Set, 4032, Dome, 3.248 Bore, 1.560 CD, 0.750 Pin, Set of 8.; JE, Ford, Flathead, 3.248 in. Bore, 1.561 CD, Dome, 8 Cyl. Piston Kit
Description:
Description
SRP forged pistons are born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. SRP Pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. SRP pistons are made 100% in the USA. Available for Ford Flathead V22 Pistons include
Features & benefits
- Designed specifically for Ford Flathead V22 to provide optimized performance durability
- Includes high-quality wrist pins, forced wrist pin oiling and locks
- Made 100% in the USA
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
- Econo Undercrown Milling: Creates a lighter, more durable piston with uniform deck thickness in critical areas, offering excellent value through efficient machining.
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion, SRP Pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics.
Information
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Specifications
- GTIN
- 00193564217868
- Weight
- 13 lb
- Height
- 6 in
- Length
- 26 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.06000
- 3D Undercrown Milling
- No
- Accumulator Groove
- No
- Add-On
- J641F8-3248
- Anodize Top Ring Groove
- No
- Bore Diameter
- 3.248
- Bore Diameter - Web
- 3.248 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>Domestic
- Combo 2
- No
- Compression Height
- 1.561
- Connecting Rod Length
- 7.000 IN
- Contact Reduction
- No
- Cylinder Head
- FLATHEAD
- DVGP
- No
- Double Pin Oilers
- No
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- Yes
- Engine
- Flathead
- Engine - Web
- Flathead
- Engine Stroke
- 3.750
- Engine Type
- ICE
- Forging Type
- Round
- Gas Distribution
- No
- Industry
- Automotive
- Lateral Gas Ports
- No
- Make
- Ford
- Make - Web
- Ford
- Mill Undercrown
- No
- Oil Groove Width
- 0.15900
- Oil Ring Thickness
- 0.159
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Head Type
- Dome
- Piston Material
- 4032
- Piston Pin Length
- 2.500
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.750
- Piston Pin Wall Thickness
- 0.140
- Piston Quantity
- 8
- Piston Qunatity
- 8
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.003
- Piston Volume
- 0.00
- Product Market
- Domestic
- Product Type
- Engine Piston Kit
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.5950
- Skirt Coat
- No
- Smooth Crown Finish
- No
- Stroke
- 3.750
- Thermal Crown
- No
- Title
- JE Pistons - Ford, Flathead, 3.248 in. Bore, Piston Kit
- Title - Web
- JE Pistons Ford Flathead Piston Kit - 3.248 in. Bore - 1.561 in. CH, 0.00 CC
- Top Compression Ring Thickness
- 0.5950
- Top Groove Width
- 0.06000
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.500
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.750
- Wrist Pin Wall Thickness
- 0.140
Fitment status
This product is universal and will fit your application.
Application summary
Ford Flathead V8
