JE Pistons / SRP · 362213
Part #: 362213
UPC: 193564031464
Log in for inventory
Notify me when this item is in stock.

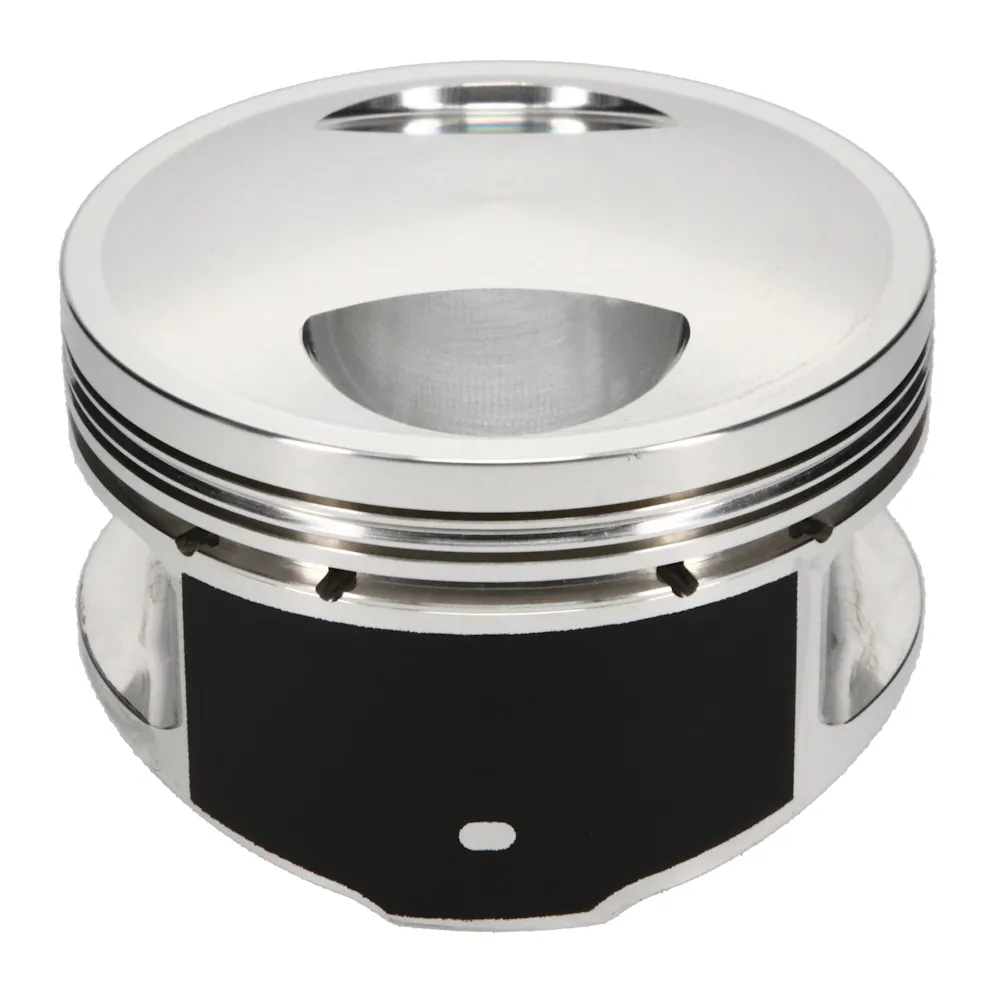

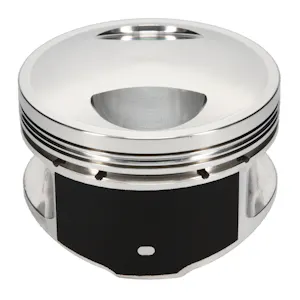

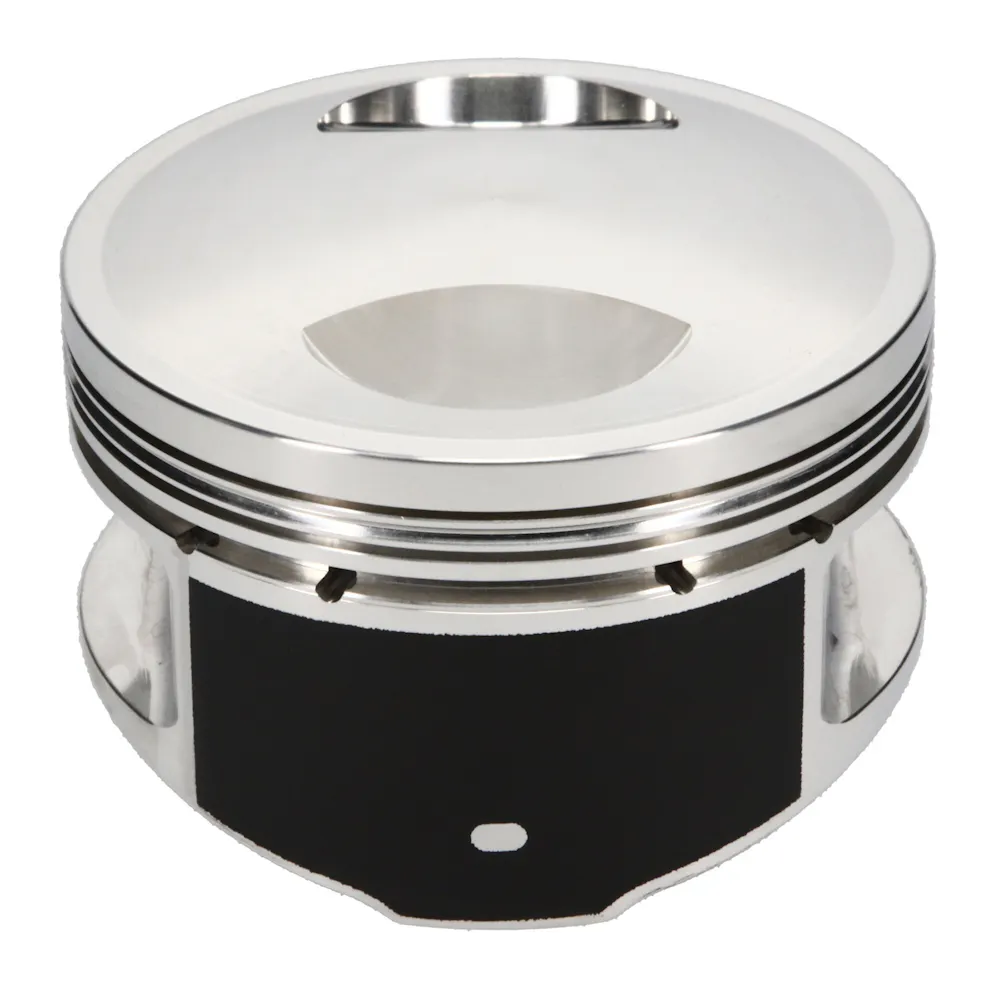

Description: Piston Set, 2618, Dome, 3.681 Bore, 1.181 CD, 0.787 Pin, Set of 6.; JE, Ferrari, 2.4L 246 V6 2V, 3.681 in. Bore, 10.00:1, Dome, 6 Cyl. Piston Kit
Description:
Description
Accumulator Groove, Pin Fit, and Skirt Coat. Sport Compact, Import and European Pistons are engineered, forged and machined 100% in the USA
Features & benefits
- Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
- Designed specifically for Ferrari 2.4L 246 V6 2V Engines. To provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
- Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
- Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
Information
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Specifications
- GTIN
- 00193564031464
- Weight
- 9.5 lb
- Height
- 6 in
- Length
- 26 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.04800
- 3D Undercrown Milling
- No
- Accumulator Groove
- Yes
- Add-On
- JG1001-3681
- Anodize Top Ring Groove
- No
- Bore Diameter
- 93.50
- Bore Diameter - Web
- 93.50 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>European
- Combo 2
- No
- Compression Height
- 1.181
- Compression Ratio
- 0.41666666666667
- Connecting Rod Length
- 4.646 IN
- Contact Reduction
- No
- Cylinder Head
- 246 DINO
- DVGP
- No
- Double Pin Oilers
- No
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- 2.4L 246 V6 2V
- Engine - Web
- 2.4L 246 V6 2V
- Engine Displacement
- 2.4L
- Engine Stroke
- 2.362
- Engine Type
- ICE
- Exhaust Angle
- 27
- Exhaust Depth
- .200
- Exhaust Diameter
- 1.600
- Forging Type
- Round
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 19.5
- Intake Depth
- .060
- Intake Diameter
- 1.800
- Lateral Gas Ports
- No
- Make
- Ferrari
- Make - Web
- Ferrari
- Mill Undercrown
- No
- Oil Groove Width
- 0.11100
- Oil Ring Thickness
- 0.111
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Average Weight
- 414
- Piston Avg Wt
- 414
- Piston Head Type
- Dome
- Piston Material
- 2618
- Piston Pin Length
- 2.500
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.787
- Piston Pin Wall Thickness
- 0.140
- Piston Quantity
- 6
- Piston Qunatity
- 6
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.004
- Piston Volume
- 18.10
- Product Market
- European
- Product Type
- Engine Piston Kit
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0480
- Skirt Coat
- Yes
- Smooth Crown Finish
- No
- Stroke
- 2.362
- Thermal Crown
- No
- Title
- JE Pistons - Ferrari, 2.4L 246 V6 2V, 93.50 mm Bore, Piston Kit
- Title - Web
- JE Pistons Ferrari 2.4L 246 V6 2V Piston Kit - 93.50 mm Bore - 1.181 in. CH, 18.10 CC
- Top Compression Ring Thickness
- 0.0400
- Top Groove Width
- 0.04000
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.500
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.787
- Wrist Pin Wall Thickness
- 0.140
Fitment status
This product is universal and will fit your application.
Application summary
Ferrari 2.4L 246 V6 2V
