JE Pistons / SRP · 361279S
Part #: 361279S
UPC: 193564013705
Log in for inventory
Notify me when this item is in stock.

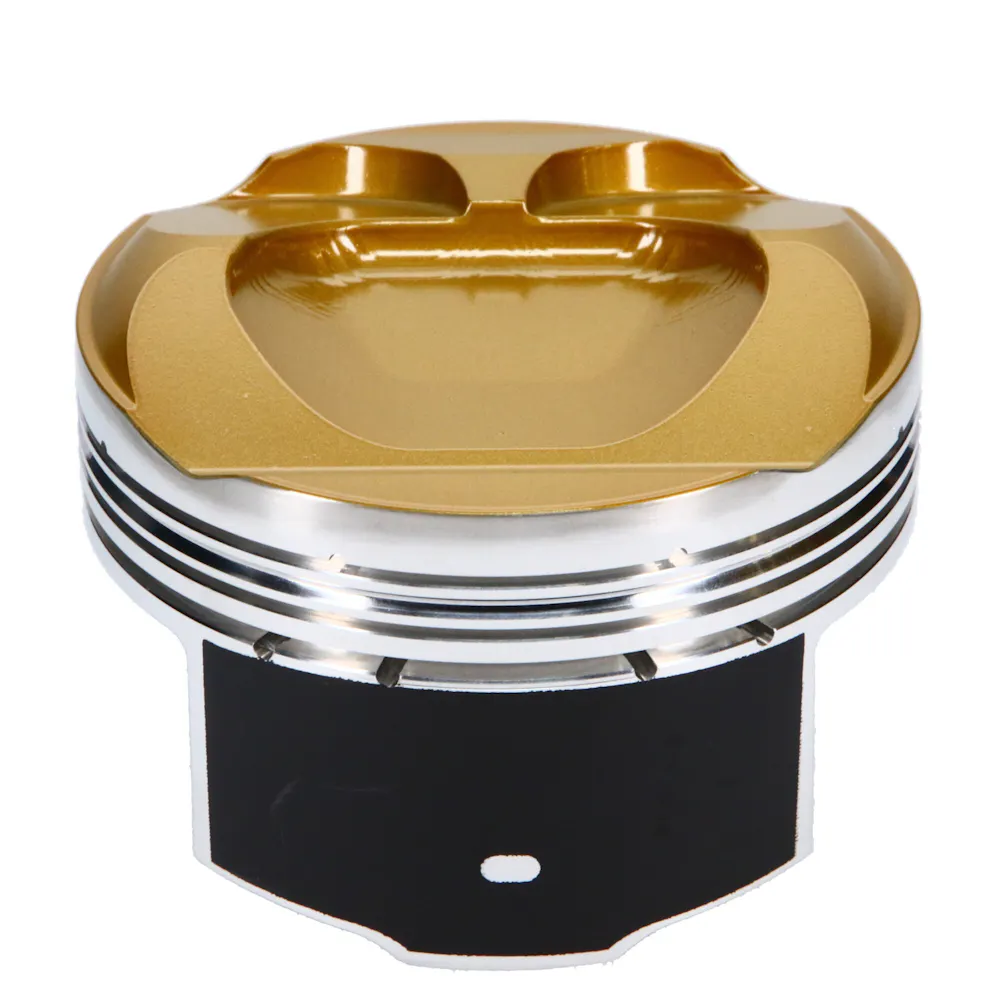

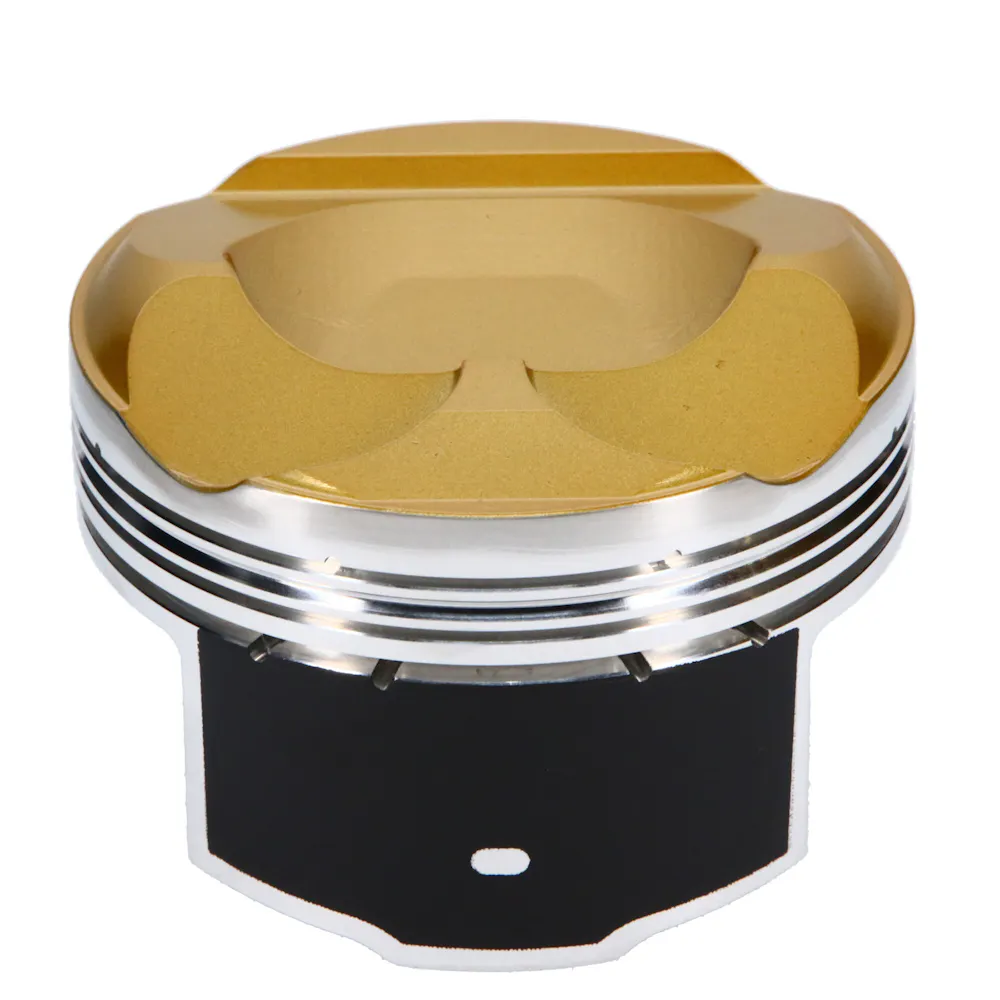

Description: HONDA K20C ULTRA SERIES 10:1; JE Ultra, Honda, K20C Series, 3.406 in. Bore, 10.00:1, Dome, Single Piston
Description:
Description
JE Pistons Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included.
Features & benefits
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform flawlessly in high high-horsepower racing engines. This includes lateral gas ports, thicker ring lands, and dual pin oiling
- Aligned Grain Flo
Specifications
- GTIN
- 00193564013705
- Weight
- 1.2 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 5 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Add-On
- 866-063-MW
- Bore Diameter
- 86.50
- Bore Diameter - Web
- 86.50 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Ultra Series>Single Replacement Pistons>Sport Compact
- Compression Height
- 1.260
- Cylinder Head
- K20C
- Engine
- K20C SERIES
- Engine - Web
- K Series
- Engine Detail
- K20C Series
- Engine Type
- ICE
- Forging Type
- FSR
- Industry
- Automotive
- Make
- HONDA
- Make - Web
- Honda
- Oil Ring Thickness
- 0.079
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Head Type
- Dome
- Piston Material
- 2618
- Piston Pin Length
- 2.250
- Piston Pin Material
- 9310
- Piston Pin Outside Diameter
- 0.866
- Piston Pin Wall Thickness
- 0.230
- Piston Series
- JE Pistons
- Piston Volume
- -0.86
- Product Market
- Sport Compact
- Product Type
- Engine Piston
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0480
- Title
- JE Ultra Series - Honda, K Series, 86.50 mm Bore, Piston
- Title - Web
- JE Ultra Series Honda K Series Piston - 86.50 mm Bore - 1.260 in. CH, -0.86 CC
- Top Compression Ring Thickness
- 0.0480
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 9310
- Wrist Pin Outer Diameter
- 0.866
- Wrist Pin Wall Thickness
- 0.230
Fitment status
This product is universal and will fit your application.
Application summary
Honda K20C
