JE Pistons / SRP · 345810
Part #: 345810
UPC: 193564251220
Log in for inventory
Notify me when this item is in stock.

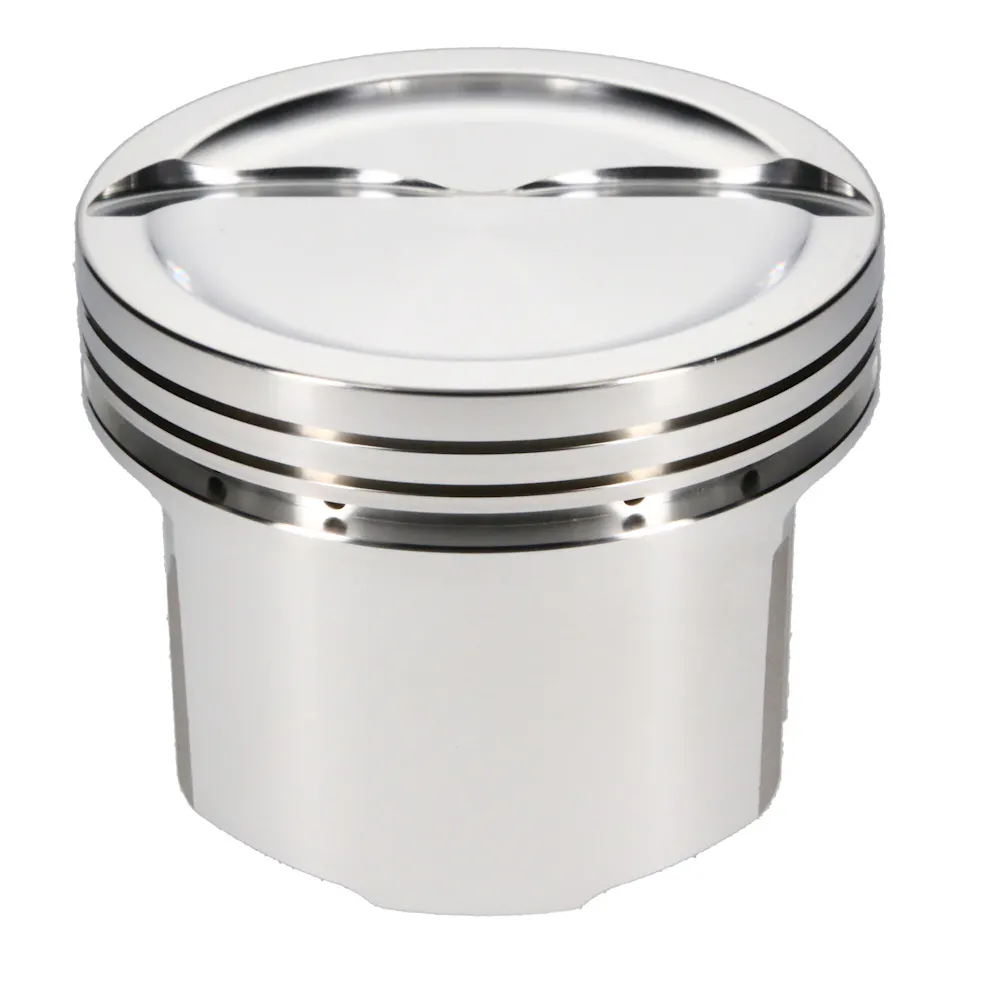

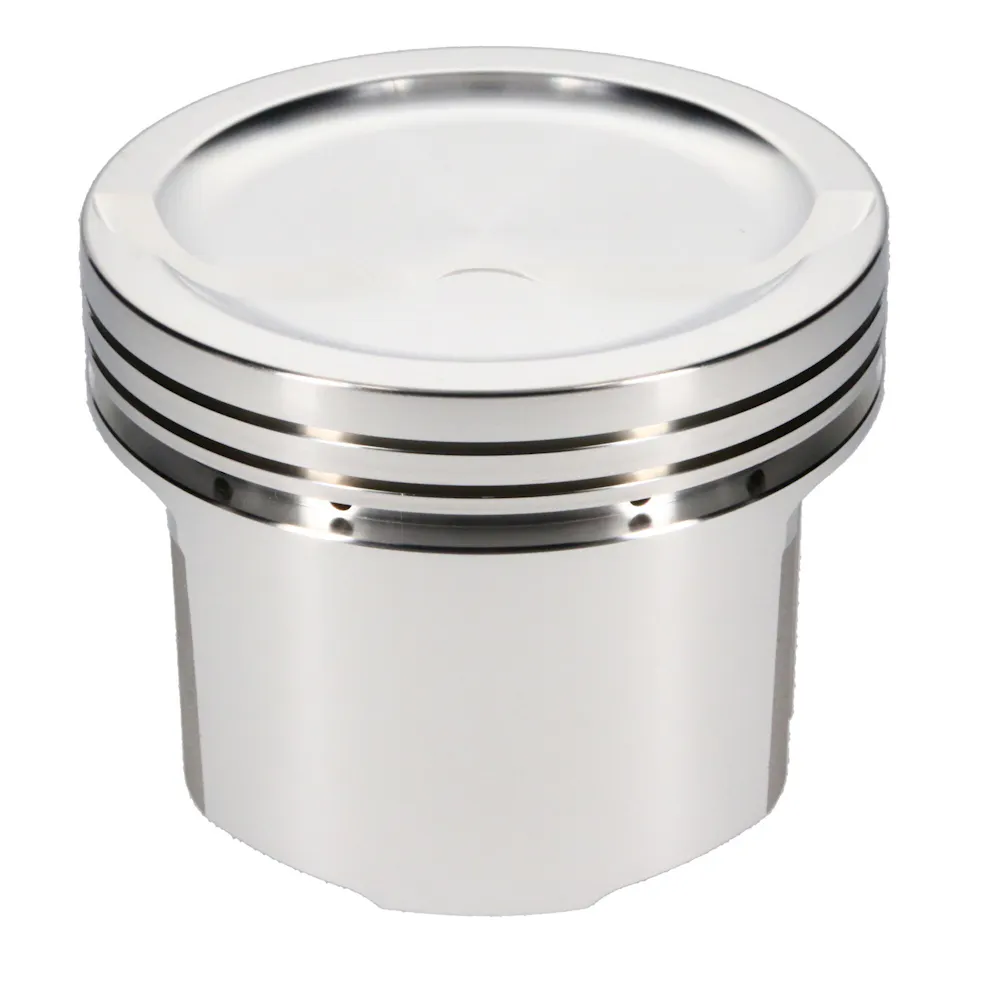

Description: Piston Set, 4032, Inv Dome/Dish, 4.360 Bore, 1.865 CD, 0.990 Pin, Set of 8.; SRP, Chrysler, Big Block Chrysler, 4.360 in. Bore, 1.865 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit
Description:
Description
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Features & benefits
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
Information
These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.
Specifications
- GTIN
- 00193564251220
- Weight
- 17 lb
- Height
- 6 in
- Length
- 26 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Add-On
- 990-042-CS
- Bore Diameter
- 4.360
- Bore Diameter - Web
- 4.360 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>SRP Pistons>SRP>Piston Kits
- Compression Height
- 1.865
- Cylinder Head
- 440 WEDGE
- EBAY Category ID
- 33623
- Engine
- Big Block
- Engine - Web
- Big Block
- Engine Type
- ICE
- Forging Type
- FSR
- Industry
- Automotive
- Make
- Chrysler
- Make - Web
- Chrysler
- Oil Ring Thickness
- 0.188
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Average Weight
- 700
- Piston Avg Wt
- 700
- Piston Head Type
- Dish
- Piston Material
- 4032
- Piston Pin Length
- 2.930
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.990
- Piston Pin Wall Thickness
- 0.180
- Piston Series
- SRP
- Piston Volume
- -24.00
- Product Market
- Domestic
- Product Type
- Engine Piston Kit
- Ring Set Included
- No
- Ringset Included
- No
- Second Compression Ring Thickness
- 0.0640
- Title
- SRP - Chrysler, Big Block, 4.360 in. Bore, Piston Kit
- Title - Web
- SRP Chrysler Big Block Piston Kit - 4.360 in. Bore - 1.865 in. CH, -24.00 CC
- Top Compression Ring Thickness
- 0.0640
- Wrist Pin Length
- 2.930
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.990
- Wrist Pin Wall Thickness
- 0.180
Fitment status
This product is universal and will fit your application.
Application summary
Chrysler Big Block 440
JE Pistons / SRP 345810
