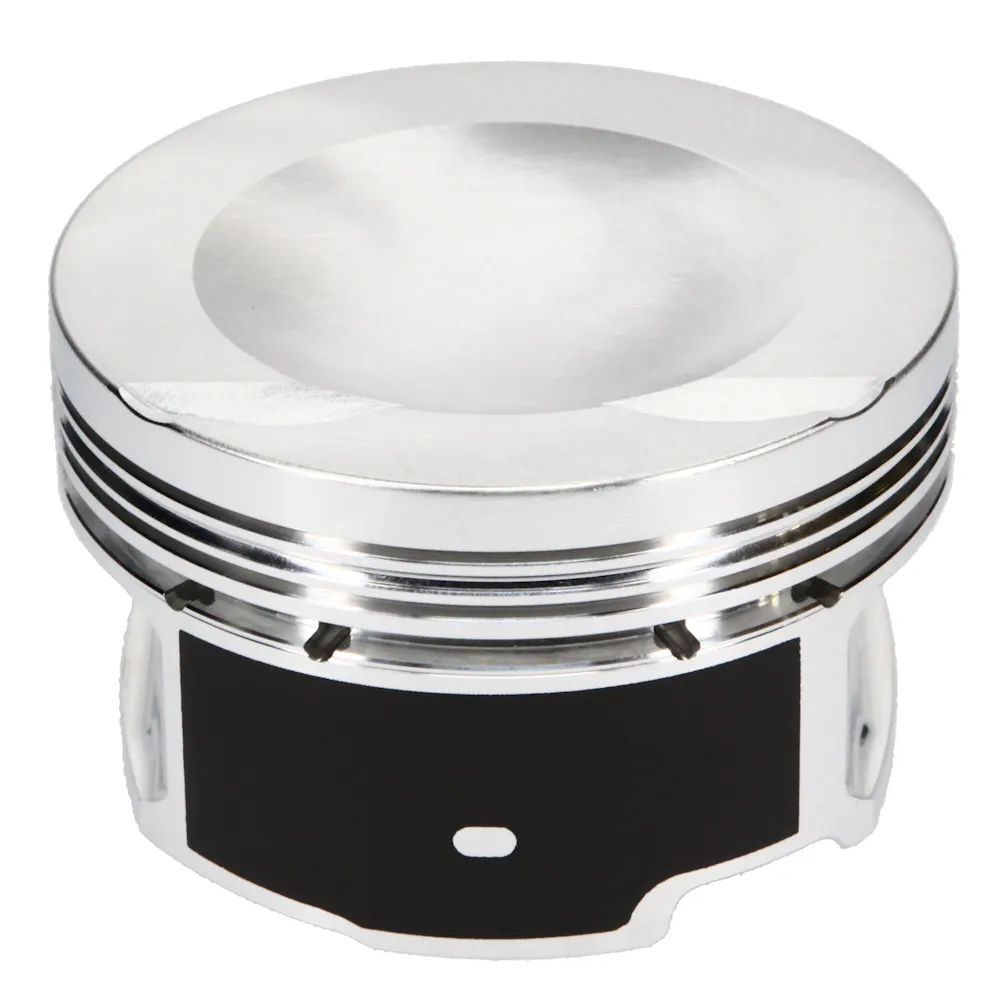

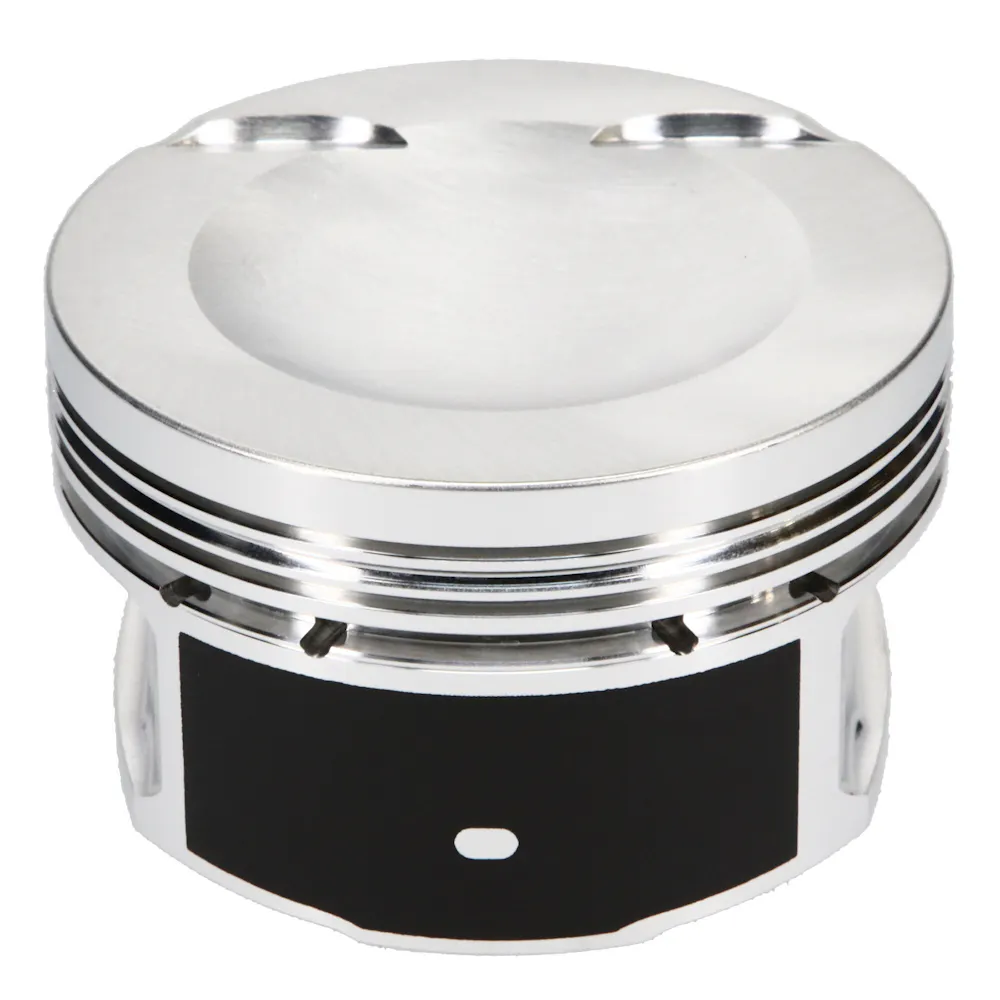

JE Pistons / SRP · 337967
Part #: 337967
UPC: 193564005571
Log in for inventory
Notify me when this item is in stock.
Description: Piston Set, 2618, Inv Dome/Dish, 3.268 Bore, 1.165 CD, 0.866 Pin, Set of 5.; JE, Audi, TT RS 5 CYL, 3.268 in. Bore, 9.50:1, Inverted Dome/Dish, 5 Cyl. Piston Kit
Description:
Description
Accumulator Groove, Smooth Crown Finish, and Pin Fit. Sport Compact, Import and European Pistons are engineered, forged and machined 100% in the USA
Features & benefits
- Designed specifically for Audi DAZA and DNWA Engines. To provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
- Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
- Smooth Crown Finish: Deburs all areas around the valve pocket and dome area, to reduces stress risers and prevent hot spots.
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
- Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
Information
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Specifications
- GTIN
- 00193564005571
- Weight
- 5 lb
- Height
- 6 in
- Length
- 12 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.04800
- 3D Undercrown Milling
- No
- Accumulator Groove
- Yes
- Add-On
- JG1001-3268
- Anodize Top Ring Groove
- No
- Bore Diameter
- 83.00
- Bore Diameter - Web
- 83.00 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>European
- Combo 2
- No
- Compression Height
- 1.165
- Compression Ratio
- 0.37847222222222
- Connecting Rod Length
- 5.669 IN
- Contact Reduction
- No
- Cylinder Head
- R5 TFSI 20V
- DVGP
- No
- Double Pin Oilers
- No
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- TT RS 5 Cyl
- Engine - Web
- TT RS 5 Cyl
- Engine Displacement
- 29 - 2.5 5CYL
- Engine Stroke
- 3.654
- Engine Type
- ICE
- Exhaust Angle
- 23.5
- Forging Type
- Round
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 23.5
- Intake Depth
- .099
- Intake Diameter
- 1.440
- Lateral Gas Ports
- No
- Make
- Audi
- Make - Web
- Audi
- Mill Undercrown
- No
- Oil Groove Width
- 0.11100
- Oil Ring Thickness
- 0.111
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Head Type
- Dish
- Piston Material
- 2618
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.866
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 5
- Piston Qunatity
- 5
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.004
- Piston Volume
- -8.10
- Product Market
- European
- Product Type
- Engine Piston Kit
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0480
- Skirt Coat
- No
- Smooth Crown Finish
- Yes
- Stroke
- 3.654
- Thermal Crown
- No
- Title
- JE Pistons - Audi, TT RS 5 Cyl, 83.00 mm Bore, Piston Kit
- Title - Web
- JE Pistons Audi TT RS 5 Cyl Piston Kit - 83.00 mm Bore - 1.165 in. CH, -8.10 CC
- Top Compression Ring Thickness
- 0.0400
- Top Groove Width
- 0.04000
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.866
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Audi 2.5L TFSI 20V
