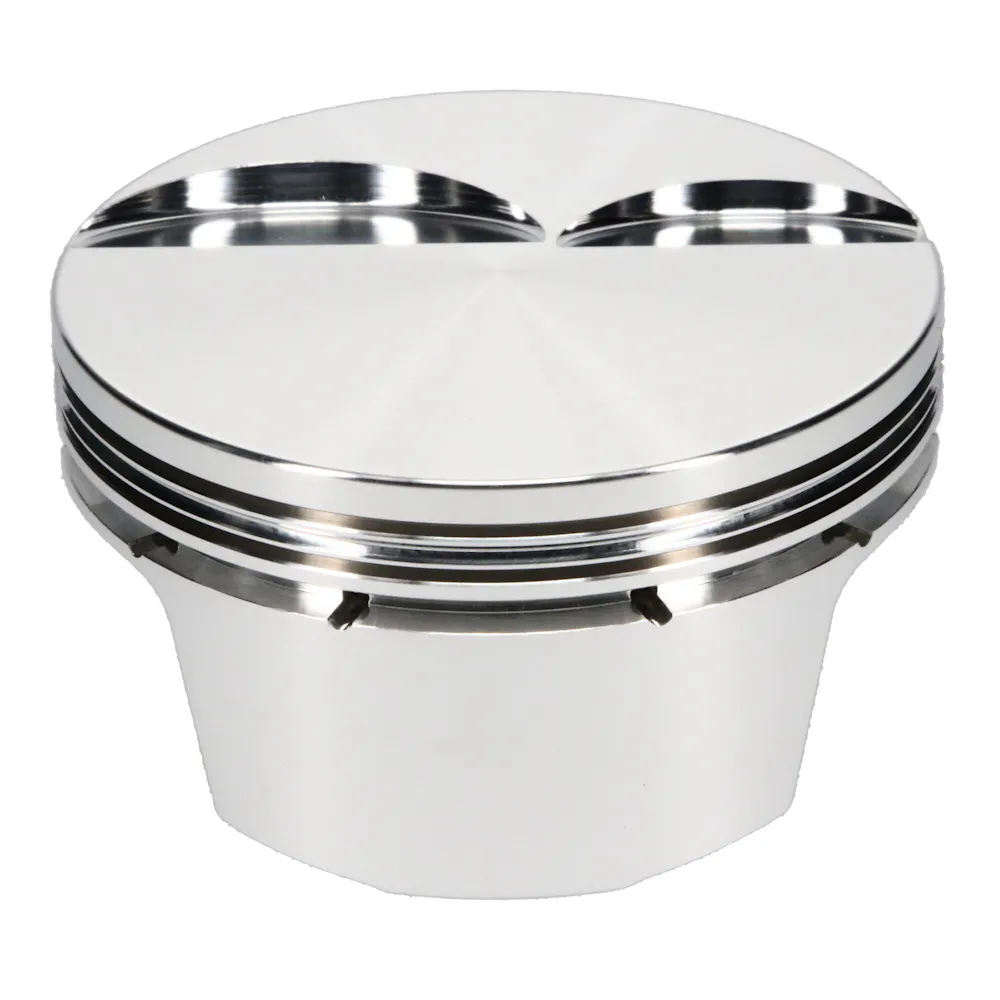

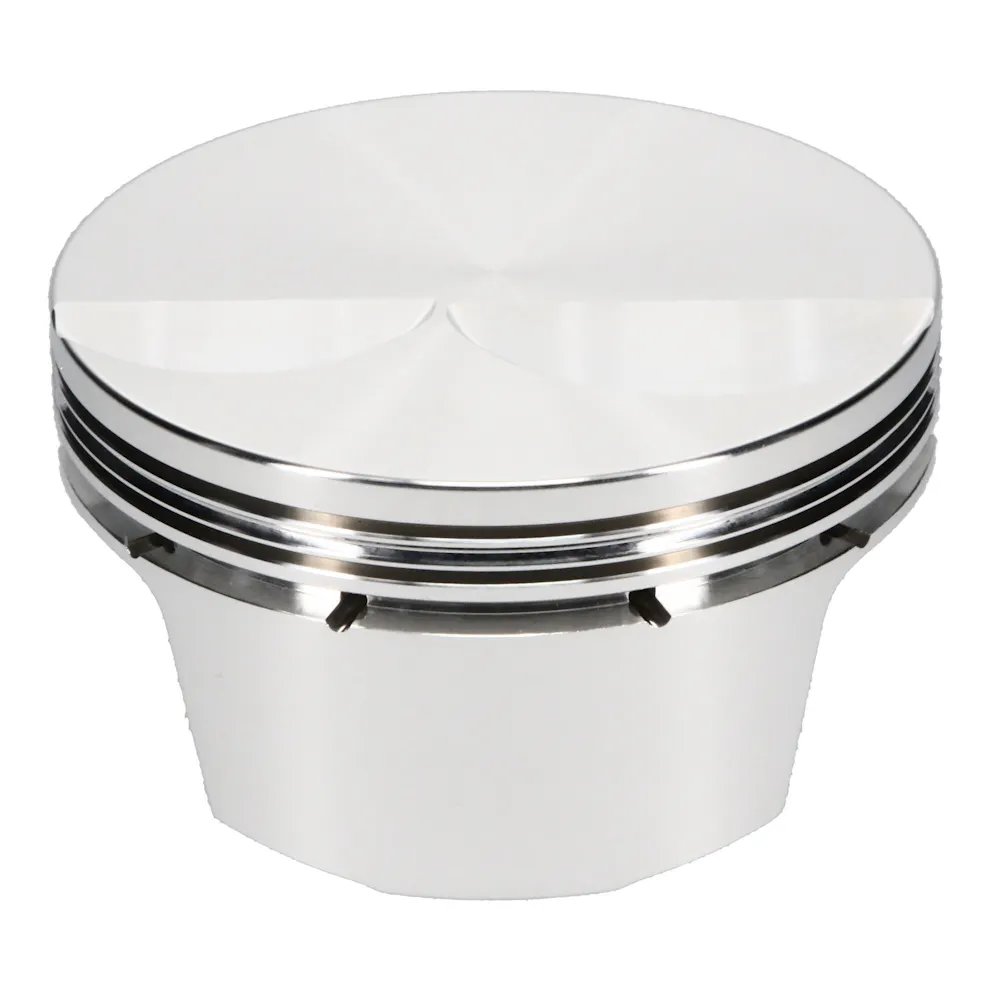

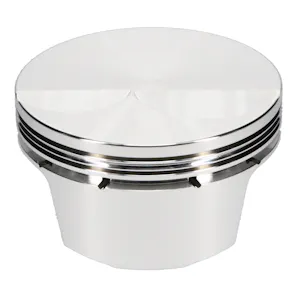

JE Pistons / SRP · 326376
Part #: 326376
UPC: 193564030214
Log in for inventory
Notify me when this item is in stock.
Description: Piston Set, 2618, Flat Top, 3.898 Bore, 1.115 CD, 0.927 Pin, Set of 8.; 3.898 in. Bore - 1.115 CD - (-2.0 cc) - Flat Top - 8 Cyl. Piston Kit
Description:
Description
Accumulator Groove, and Pin Fit. JE Auto Pistons are engineered, forged and machined 100% in the USA
Features & benefits
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for GM LS Gen III/IV Engines To provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, and locks
- Made 100% in the USA
- Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Information
These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.
Application summary
| Year | Make / model |
|---|---|
| 2001-2004 | Avanti II |
| 1998-2002 | Chevrolet Camaro |
| 1997-2004 | Chevrolet Corvette |
| 1998-2002 | Pontiac Firebird |
| 2004 | Pontiac GTO |
Specifications
- GTIN
- 00193564030214
- Weight
- 12.6 lb
- Height
- 6 in
- Length
- 12 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.06000
- 3D Undercrown Milling
- No
- Accumulator Groove
- Yes
- Add-On
- J68008-3900-3
- Anodize Top Ring Groove
- No
- Bore Diameter
- 3.898
- Bore Diameter - Web
- 3.898 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>Domestic
- Combo 2
- No
- Compression Height
- 1.115
- Compression Ratio
- 10.50:1 / 72.00 CC Head
- Connecting Rod Length
- 6.125
- Contact Reduction
- No
- Cylinder Head
- LSX/L92 12 DEG
- DVGP
- No
- Deck Height
- 9.240
- Double Pin Oilers
- No
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- LS Gen III/IV
- Engine - Web
- LS1
- Engine Displacement
- 382
- Engine Family
- LS
- Engine Stroke
- 4.000
- Engine Type
- ICE
- Exhaust Angle
- 15
- Exhaust Depth
- .150
- Exhaust Diameter
- 1.870
- Forging Type
- FSR
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 15
- Intake Depth
- .200
- Intake Diameter
- 2.265
- Lateral Gas Ports
- No
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Mill Undercrown
- No
- OEM Bore Diameter
- 3.900
- Oil Groove Width
- 0.15000
- Oil Ring Thickness
- 0.149
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Oversized
- No
- Oversized Amount
- Standard
- Pin Fit
- Yes
- Piston Average Weight
- 412
- Piston Avg Wt
- 412
- Piston Head Type
- Flat
- Piston Material
- 2618
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.927
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 8
- Piston Qunatity
- 8
- Piston Series
- JE Pistons
- Piston Sub-Series
- LS1 Extreme Duty
- Piston To Wall Clearance
- -0.0045
- Piston Volume
- -2.00
- Pro Seal Head Gasket
- GM1015-051
- Product Market
- Domestic
- Product Type
- Engine Piston Kit
- Ring Set - Recommended
- JG6008-3905
- Ring Set Included
- No
- Ring Set Thickness
- 1.50 MM x 1.50 MM x 3.00 MM
- Ringset Included
- No
- Second Compression Ring Thickness
- 0.0600
- Skirt Coat
- No
- Smooth Crown Finish
- No
- Stroke
- 3.900
- Thermal Crown
- No
- Title
- JE Pistons - Chevrolet, LS Gen III/IV, 3.898 in. Bore, Piston Kit
- Title - Web
- JE Pistons LS1 Extreme Duty FSR Piston Kit
- Top Compression Ring Thickness
- 0.0600
- Top Groove Width
- 0.06000
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Included
- Yes
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.927
- Wrist Pin Part Number
- 927-2250-15-51C
- Wrist Pin Retainer Included
- Yes
- Wrist Pin Retainer Part Number
- 927-073-MW
- Wrist Pin Wall Thickness
- 0.150
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2001-2004 Avanti II; 1998-2002 Chevrolet Camaro; 1997-2004 Chevrolet Corvette; 1998-2002 Pontiac Firebird; 2004 Pontiac GTO
