JE Pistons / SRP · 325564
Part #: 325564
UPC: 193564033406
Log in for inventory
Notify me when this item is in stock.

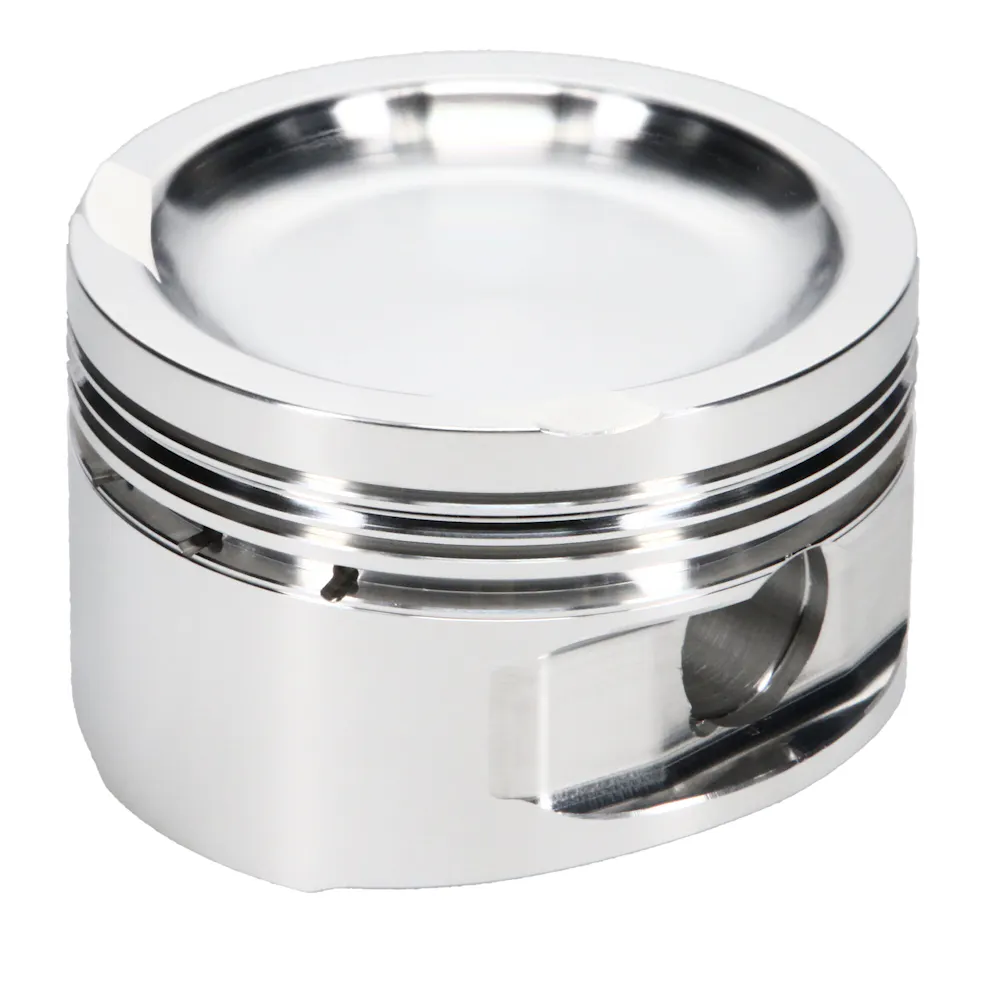

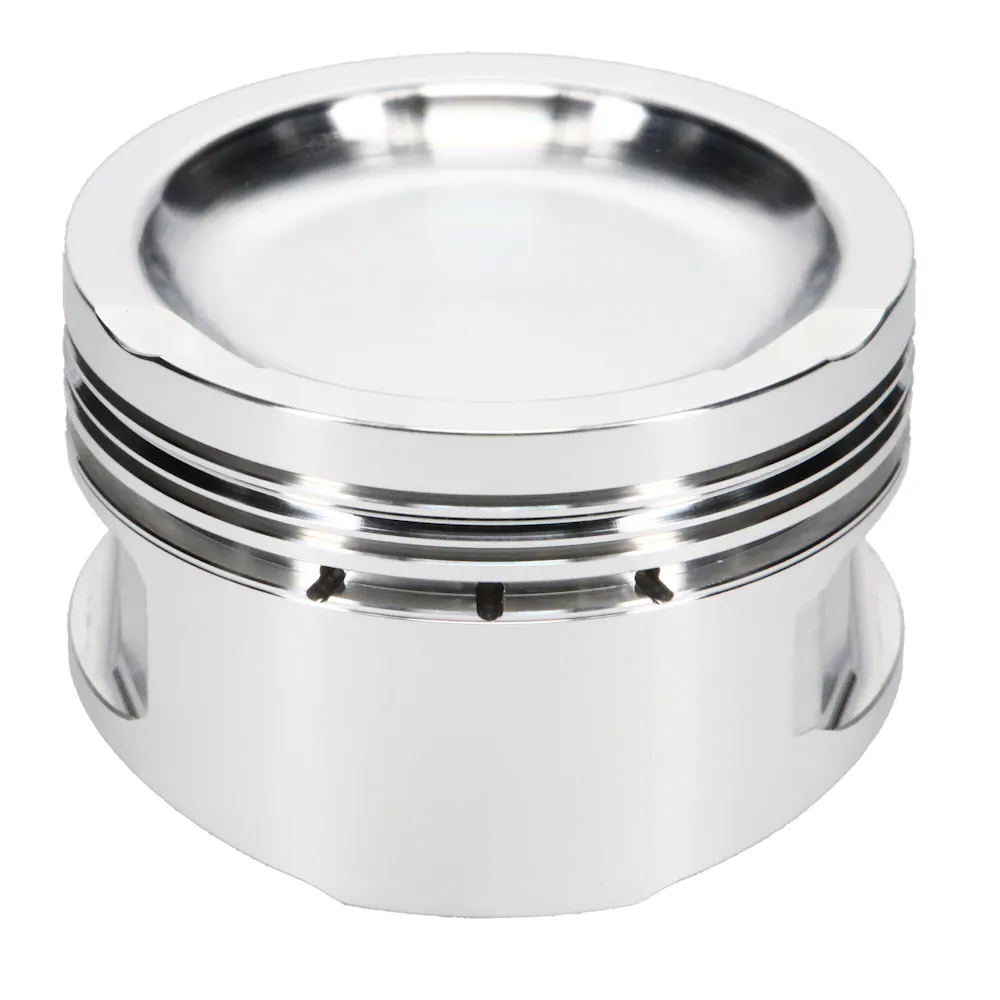

Description: Piston Set, 2618, Inv Dome/Dish, 2.894 Bore, 1.028 CD, 0.708 Pin, Set of 4.; JE, Honda, L15A, 2.894 in. Bore, 11.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit
Description:
Description
Sport Compact, Import and European forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Honda L15B Turbo Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features
Features & benefits
- Designed specifically for Honda L15B Turbo Engines. To provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
- Made 100% in the USA
- Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Information
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Specifications
- GTIN
- 00193564033406
- Weight
- 4.5 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 9 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.04800
- 3D Undercrown Milling
- No
- Accumulator Groove
- Yes
- Add-On
- JG1001-2894
- Anodize Top Ring Groove
- No
- Bore Diameter
- 73.50
- Bore Diameter - Web
- 73.50 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>Sport Compact
- Combo 2
- No
- Compression Height
- 1.028
- Compression Ratio
- 0.46180555555556
- Connecting Rod Length
- 5.863 IN
- Contact Reduction
- No
- Cylinder Head
- L15A
- DVGP
- No
- Double Pin Oilers
- No
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- L15A
- Engine - Web
- L15A
- Engine Displacement
- 1.5LTR
- Engine Stroke
- 3.520
- Engine Type
- ICE
- Exhaust Angle
- 13
- Forging Type
- Round
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 13
- Intake Depth
- .085
- Intake Diameter
- 1.350
- Lateral Gas Ports
- No
- Make
- Honda
- Make - Web
- Honda
- Mill Undercrown
- No
- Oil Groove Width
- 0.11100
- Oil Ring Thickness
- 0.111
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Average Weight
- 212
- Piston Avg Wt
- 212
- Piston Head Type
- Dish
- Piston Material
- 2618
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.708
- Piston Pin Wall Thickness
- 0.120
- Piston Quantity
- 4
- Piston Qunatity
- 4
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.003
- Piston Volume
- -4.80
- Product Market
- Sport Compact
- Product Type
- Engine Piston Kit
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0480
- Skirt Coat
- No
- Smooth Crown Finish
- No
- Stroke
- 3.520
- Thermal Crown
- No
- Title
- JE Pistons - Honda, L15A, 73.50 mm Bore, Piston Kit
- Title - Web
- JE Pistons Honda L15A Piston Kit - 73.50 mm Bore - 1.028 in. CH, -4.80 CC
- Top Compression Ring Thickness
- 0.0400
- Top Groove Width
- 0.04000
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.708
- Wrist Pin Wall Thickness
- 0.120
Fitment status
This product is universal and will fit your application.
Application summary
Honda L15A
