JE Pistons / SRP · 325259L
Part #: 325259L
UPC: 193564255716
Log in for inventory
Notify me when this item is in stock.

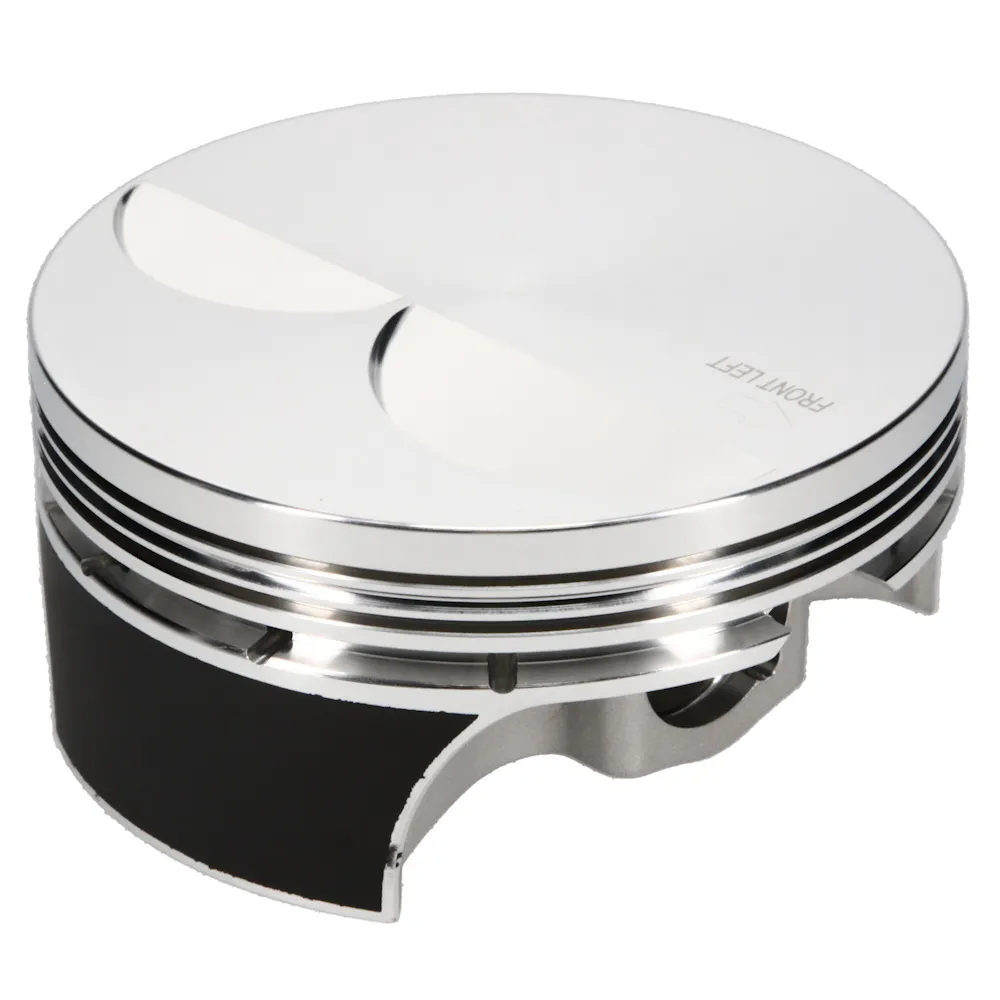

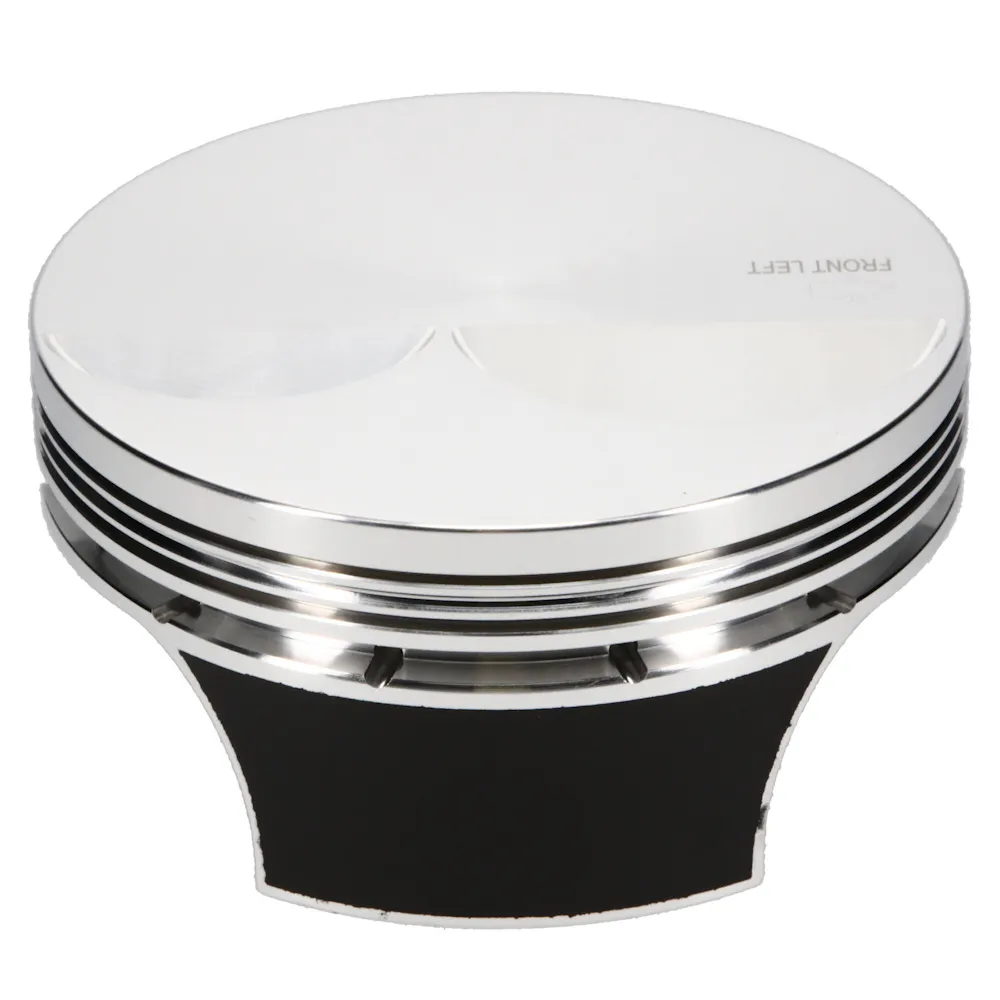

Description: LS3 PRO KIT FT -5cc; SRP Pro 4032, Chevrolet, LS Gen III/IV, 4.080 in. Bore, 1.315 CD, Flat Top, Left Piston
Description:
Description
SRP Professional pistons combine durability, technology and performance. Forged from 4032 aluminum, they have minimal thermal expansion making them perfect for a high-performance daily driver or street/strip application. All SRP Pro pistons include premium ring sets, wrist pins and locks.
Features & benefits
- Durable 4032 alloy
- Advanced FSR forging design increases strength
- 1.2mm/1.5mm/3.00mm carbon steel ring pack included
- High-quality narrow wrist pin reduces weight
- Accumulator grooves for improved ring
Specifications
- GTIN
- 00193564255716
- Weight
- 1.3 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 5 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Add-On
- 927-073-MW
- Bore Diameter
- 4.080
- Bore Diameter - Web
- 4.080 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>SRP Pistons>SRP Pro>Single Replacement Pistons
- Compression Height
- 1.300
- Cylinder Head
- LSX/L92 12 DEG
- Engine
- LS Gen III/IV
- Engine - Web
- LS Gen III/IV
- Engine Type
- ICE
- Forging Type
- FSR
- Industry
- Automotive
- Make
- CHEVROLET
- Make - Web
- Chevrolet
- Oil Ring Thickness
- 0.119
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Average Weight
- 447
- Piston Avg Wt
- 447
- Piston Head Type
- Flat
- Piston Material
- 4032
- Piston Orientation
- Left
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.927
- Piston Pin Wall Thickness
- 0.150
- Piston Series
- SRP Pro 4032
- Piston Volume
- -5.00
- Product Market
- Domestic
- Product Type
- Engine Piston
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0600
- Title
- SRP Pro 4032 - Chevrolet, LS Gen III/IV, 4.080 in. Bore, Piston
- Title - Web
- SRP Pro 4032 Chevrolet LS Gen III/IV Piston - 4.080 in. Bore - 1.300 in. CH, -5.00 CC
- Top Compression Ring Thickness
- 0.0480
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.927
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Chevrolet LS3
