JE Pistons / SRP · 322290S
Part #: 322290S
UPC: 193564015785
Log in for inventory
Notify me when this item is in stock.

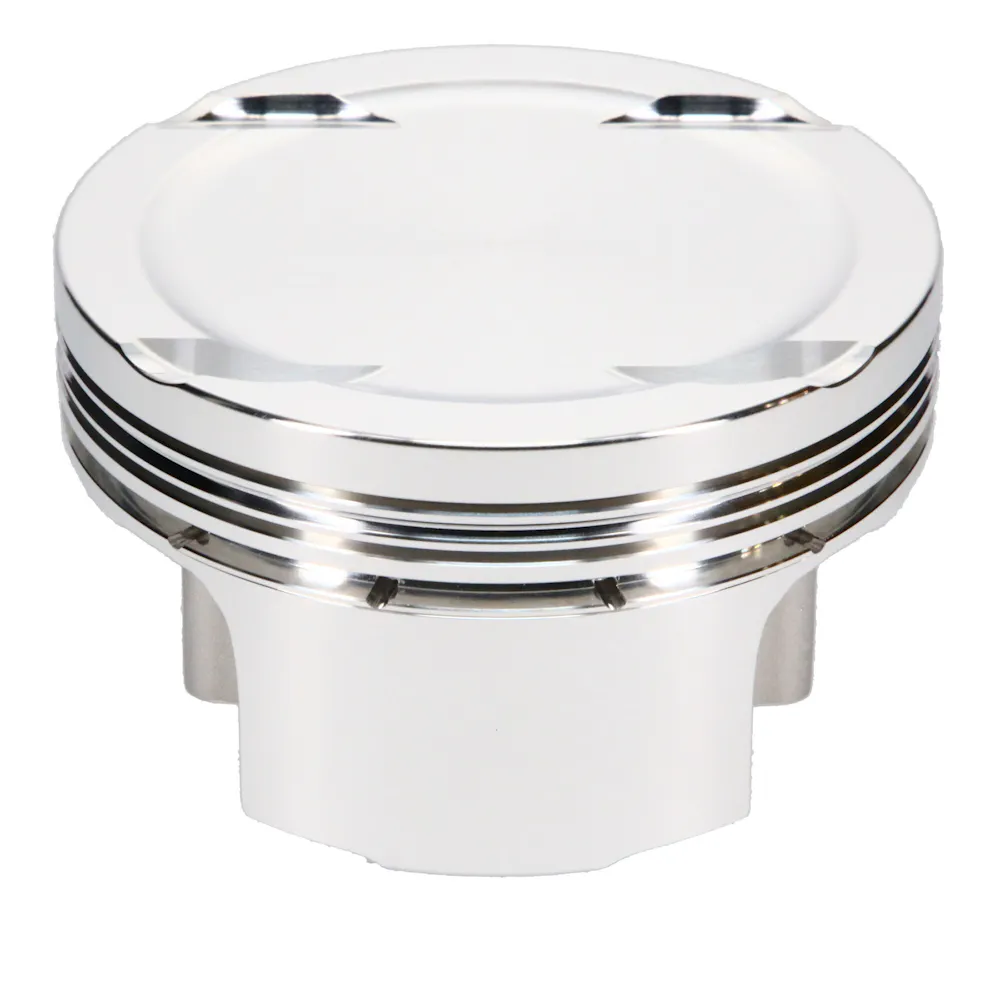

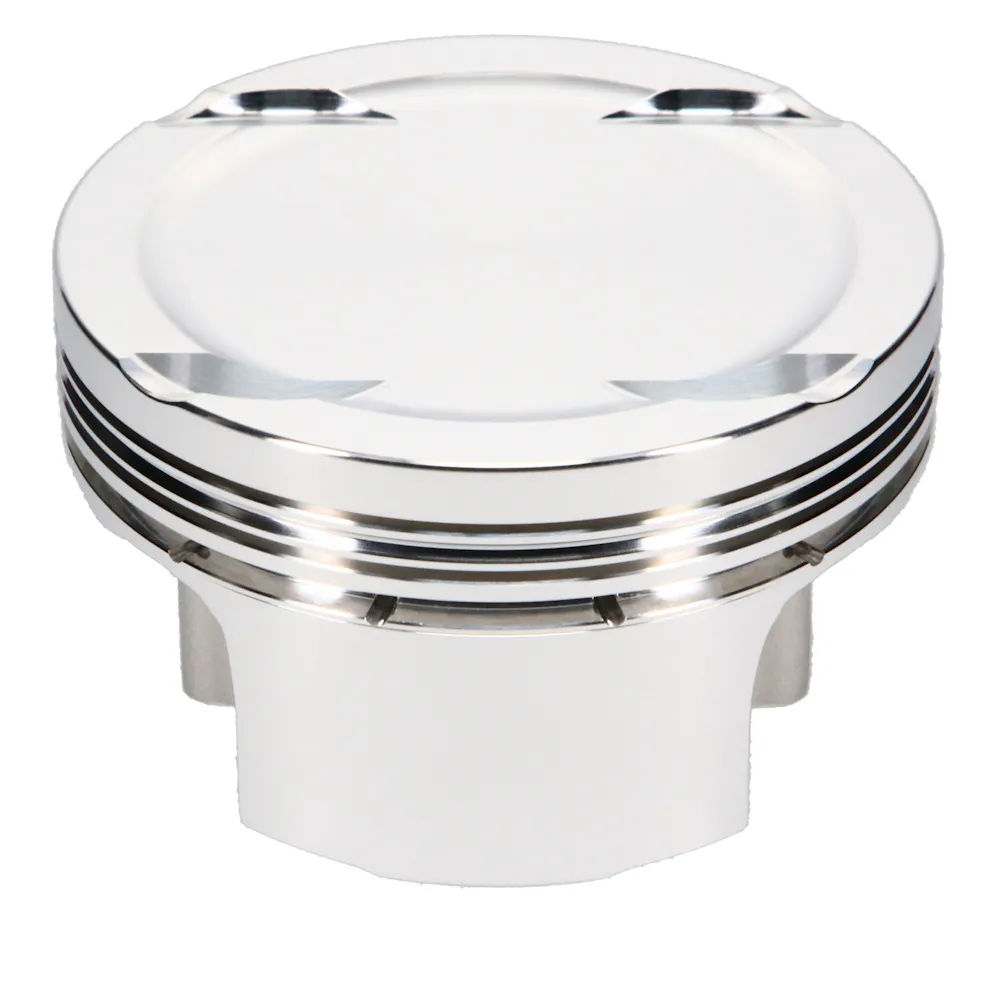

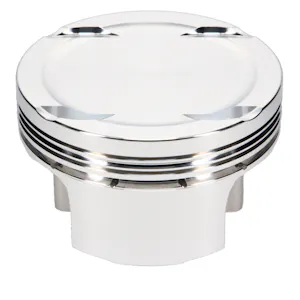

Description: NISSAN VG30 KIT; JE, Nissan, VG30DETT, 3.445 in. Bore, 11.00:1, Dome, Single Piston
Description:
Description
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Features & benefits
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
Specifications
- GTIN
- 00193564015785
- Weight
- 1.4 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 5 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Add-On
- 866-063-MW
- Bore Diameter
- 87.50
- Bore Diameter - Web
- 87.50 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Single Replacement Pistons>Sport Compact
- Compression Height
- 1.255
- Cylinder Head
- NISSAN V6 4V
- Engine
- VG30DETT
- Engine - Web
- VG30DETT
- Engine Type
- ICE
- Forging Type
- FSR
- Industry
- Automotive
- Make
- NISSAN
- Make - Web
- Nissan
- Oil Ring Thickness
- 0.111
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Average Weight
- 328
- Piston Avg Wt
- 328
- Piston Head Type
- Dome
- Piston Material
- 2618
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.866
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 1
- Piston Qunatity
- 1
- Piston Series
- JE Pistons
- Piston Volume
- 7.00
- Product Market
- Sport Compact
- Product Type
- Engine Piston
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0480
- Title
- JE Pistons - Nissan, VG30DETT, 87.50 mm Bore, Piston
- Title - Web
- JE Pistons Nissan VG30DETT Piston - 87.50 mm Bore - 1.255 in. CH, 7.00 CC
- Top Compression Ring Thickness
- 0.0400
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.866
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Nissan VG30DETT
