JE Pistons / SRP · 312438

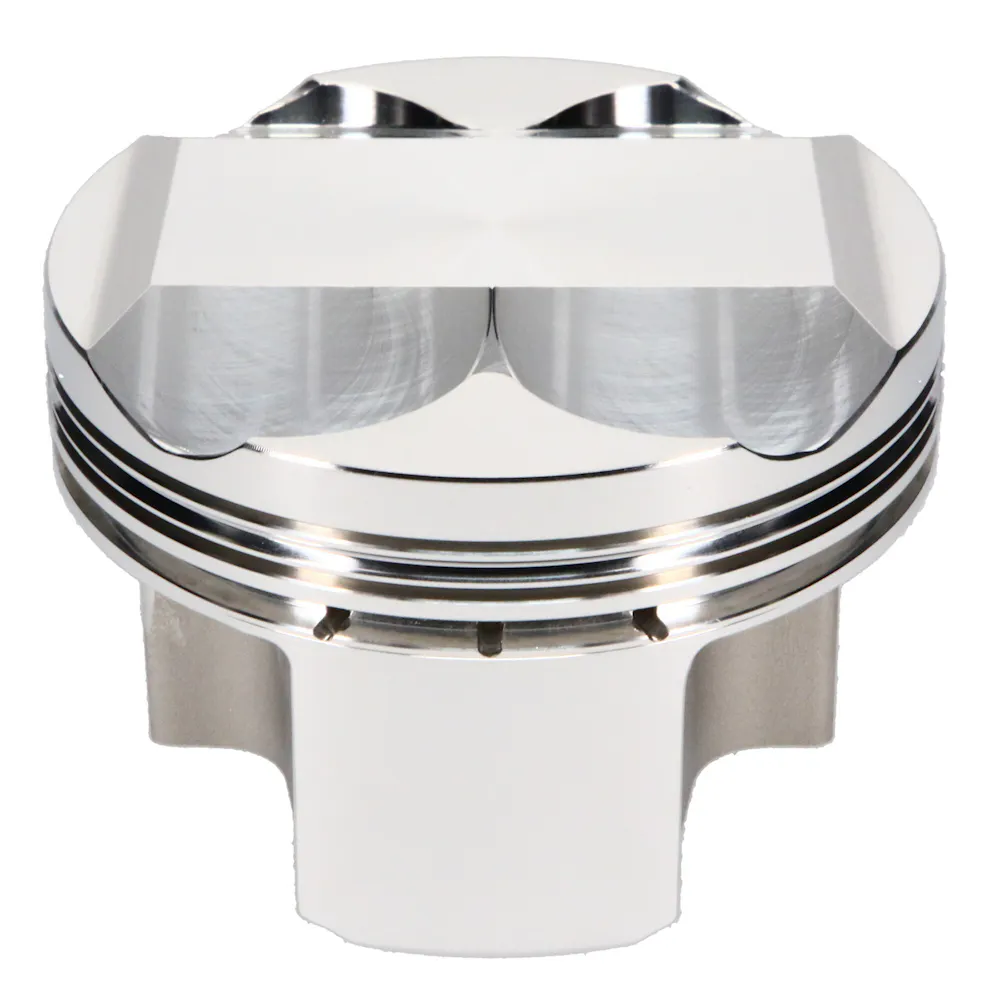

JE Pistons / SRP 312438

Part #: 312438
UPC: 193564041999

Log in for inventory
Notify me when this item is in stock.

Brand: JE Pistons / SRP Series: Dome Piston Sets
Log in to order

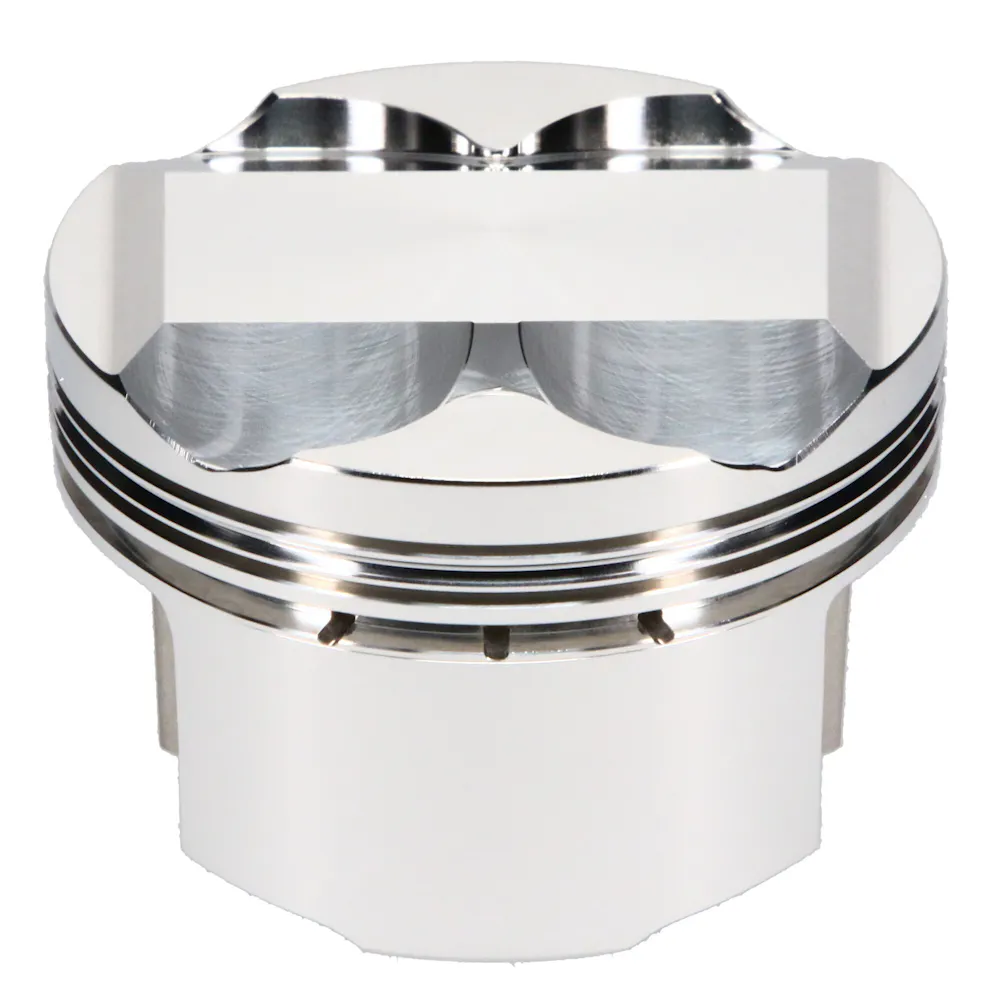

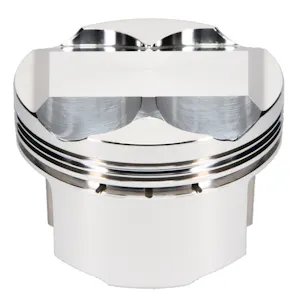

Description: Piston Set, 2618, Dome, 3.307 Bore, 0.984 CD, 0.708 Pin, Set of 4.; JE, Renault, F7R, 3.307 in. Bore, 12.70:1, Dome, 4 Cyl. Piston Kit

Description:

Proposition 65 WarningCancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

Accumulator Groove, and Pin Fit. Sport Compact, Import and European Pistons are engineered, forged and machined 100% in the USA

Features & benefits

  • Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
  • Designed specifically for Renault F7R Engines. To provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
  • Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
  • Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.

Information

These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Specifications

GTIN
00193564041999
Weight
5.2 lb
Height
5 in
Length
5 in
Width
9 in
EO
Offroad
Life cycle
Available to Order
Warehouse brand code
JEP
AAIA brand code
BHXG

Attributes

3D Undercrown Milling
No
Accumulator Groove
Yes
Add-On
JG1001-3307
Anodize Top Ring Groove
No
Bore Diameter
84.00
Bore Diameter - Web
84.00 MM
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Category Hierarchy
Auto>JE Pistons>Piston Kits>European
Combo 2
No
Compression Height
0.984
Compression Ratio
0.50486111111111
Connecting Rod Length
5.906 IN
Contact Reduction
No
Cylinder Head
F7R
DVGP
No
Double Pin Oilers
No
EBAY Category ID
33623
EN Plating
No
Econo Undercrown Milling
No
Engine
F7R
Engine - Web
F7R
Engine Stroke
3.543
Engine Type
ICE
Exhaust Angle
25.5
Exhaust Depth
.122
Exhaust Diameter
1.200
Forging Type
FSR
Gas Distribution
No
Industry
Automotive
Intake Angle
24.5
Intake Depth
.190
Intake Diameter
1.400
Lateral Gas Ports
No
Make
Renault
Make - Web
Renault
Mill Undercrown
No
Oil Groove Width
0.11100
Oil Ring Thickness
0.111
Out of Stock Message
Please Allow Approximately 3 Weeks or Less for Shipping
Pin Fit
Yes
Piston Average Weight
289
Piston Avg Wt
289
Piston Head Type
Dome
Piston Material
2618
Piston Pin Length
2.250
Piston Pin Material
5115
Piston Pin Outside Diameter
0.708
Piston Pin Wall Thickness
0.120
Piston Quantity
4
Piston Qunatity
4
Piston Series
JE Pistons
Piston To Wall Clearance
-0.0032
Piston Volume
11.80
Product Market
European
Product Type
Engine Piston Kit
Ring Set - Recommended
HG1001-3307
Ring Set Included
Yes
Ring Set Part Number
HG1001-3307
Ringset Included
Yes
Skirt Coat
No
Smooth Crown Finish
No
Stroke
3.543
Thermal Crown
No
Title
JE Pistons - Renault, F7R, 84.00 mm Bore, Piston Kit
Title - Web
JE Pistons Renault F7R Piston Kit - 84.00 mm Bore - 0.984 in. CH, 11.80 CC
Top Compression Ring Thickness
0.0400
Top Groove Width
0.04000
Tuff Skirt
No
Ultra Dome
No
Ultra Groove
No
Ultra Groove Plus Gas Port
No
Vertical Gas Ports
No
Wrist Pin Length
2.250
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.708
Wrist Pin Wall Thickness
0.120

Fitment status

This product is universal and will fit your application.

Application summary

Renault F7R CLIO
