JE Pistons / SRP · 295733S
Part #: 295733S
UPC: 193564017581
Log in for inventory
Notify me when this item is in stock.

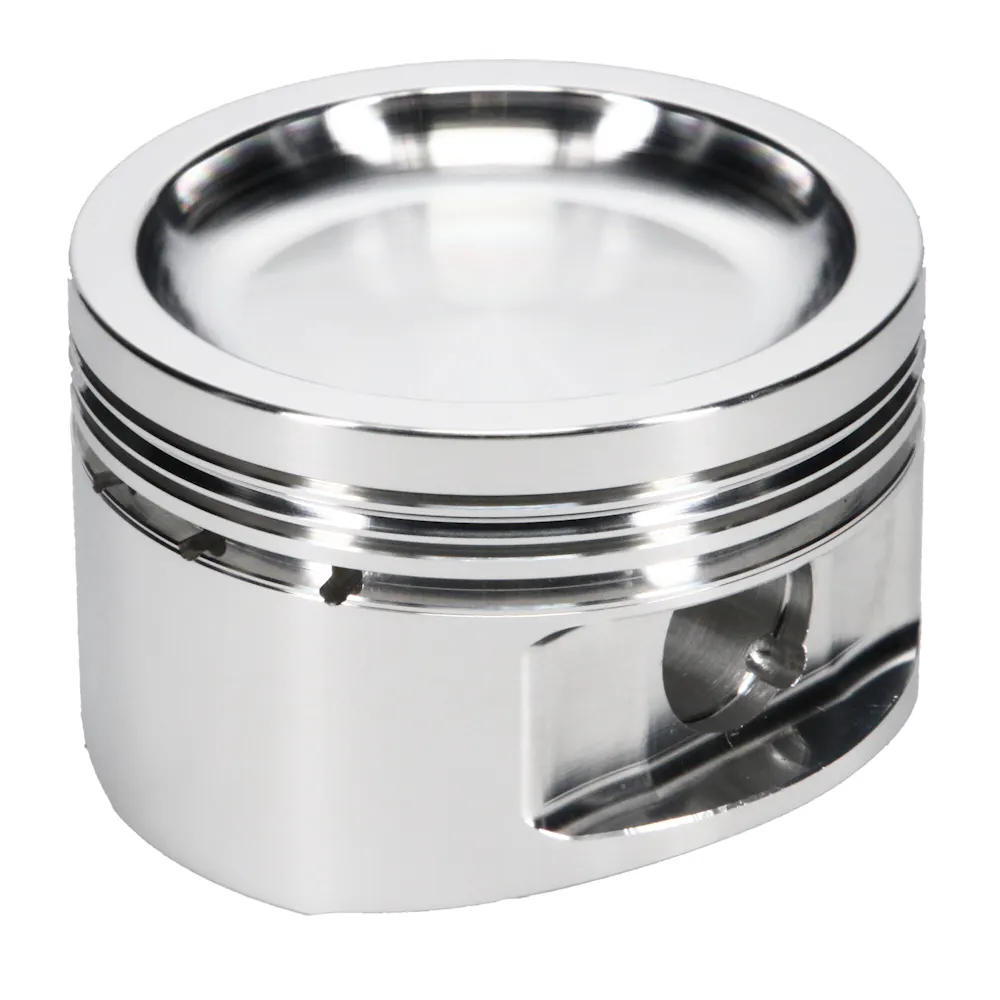

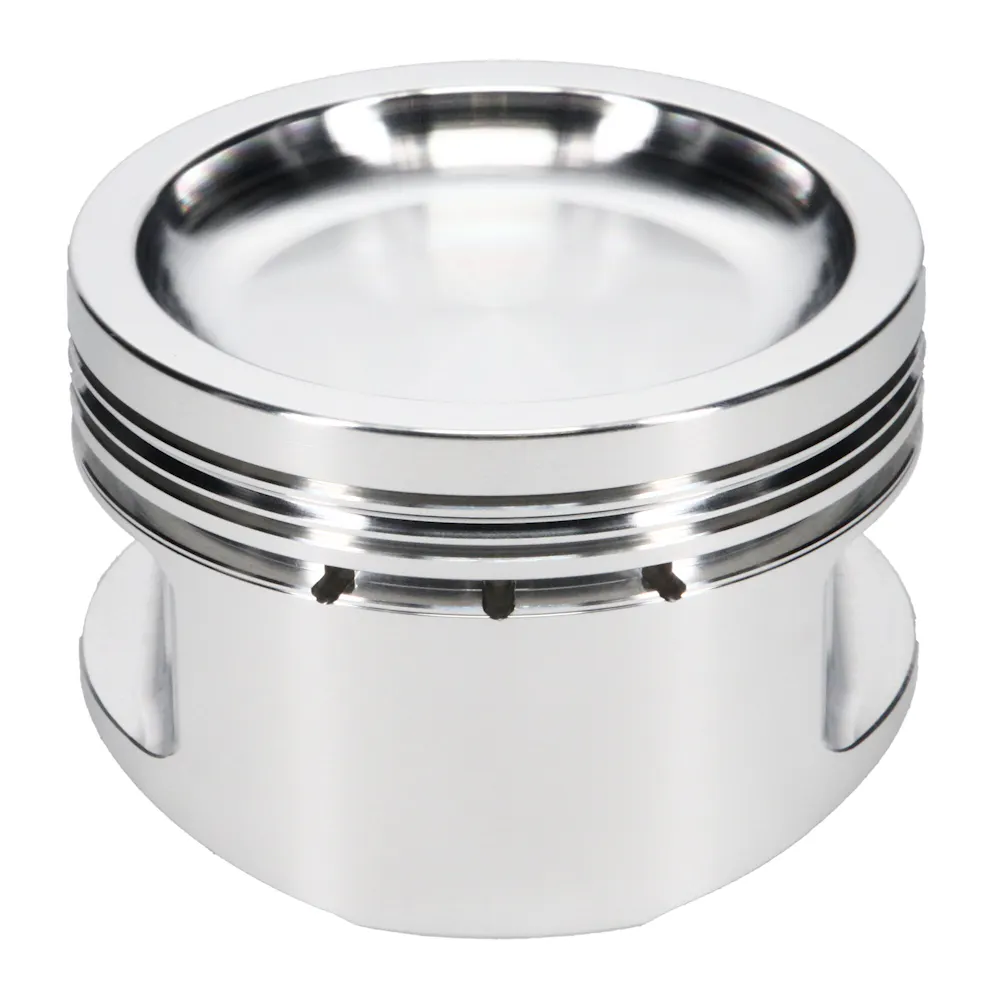

Description: VW 8V 9:0 TURBO KIT; JE, VW, JH 8V 2.0L, 3.248 in. Bore, 9.00:1, Inverted Dome/Dish, Single Piston
Description:
Description
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Features & benefits
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
Specifications
- GTIN
- 00193564017581
- Weight
- 1.3 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 5 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Add-On
- 827-063-MW
- Bore Diameter
- 82.50
- Bore Diameter - Web
- 82.50 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Single Replacement Pistons>European
- Compression Height
- 1.204
- Cylinder Head
- JH
- Engine
- JH 8V 2.0L
- Engine - Web
- JH 8V 2.0L
- Engine Type
- ICE
- Forging Type
- Round
- Industry
- Automotive
- Make
- VOLKSWAGEN
- Make - Web
- Volkswagen
- Oil Ring Thickness
- 0.111
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Average Weight
- 285
- Piston Avg Wt
- 285
- Piston Head Type
- Dish
- Piston Material
- 2618
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.827
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 1
- Piston Qunatity
- 1
- Piston Series
- JE Pistons
- Piston Volume
- -26.00
- Product Market
- European
- Product Type
- Engine Piston
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0480
- Title
- JE Pistons - Volkswagen, JH 8V 2.0L, 82.50 mm Bore, Piston
- Title - Web
- JE Pistons Volkswagen JH 8V 2.0L Piston - 82.50 mm Bore - 1.204 in. CH, -26.00 CC
- Top Compression Ring Thickness
- 0.0400
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.827
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Volkswagen 2.0L 8V 93-99
