JE Pistons / SRP · 258205
Part #: 258205
UPC: 193564031693
Log in for inventory
Notify me when this item is in stock.

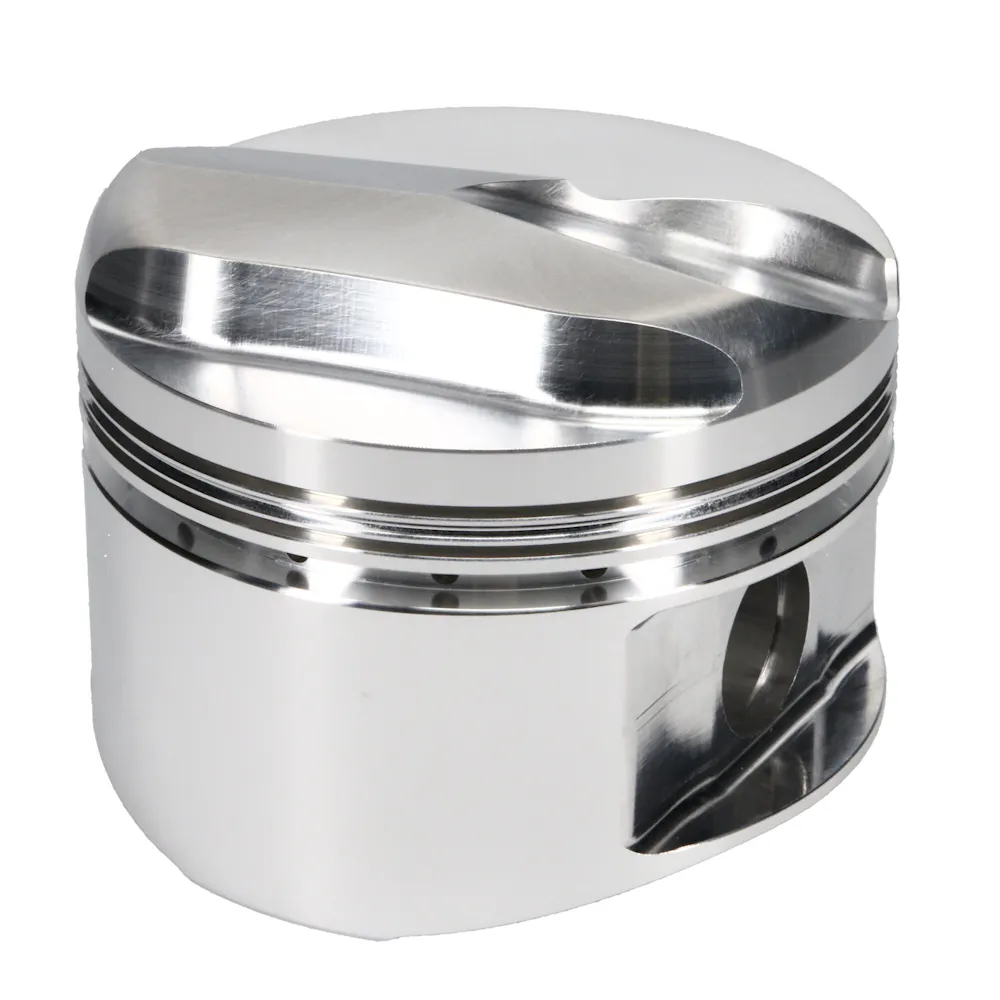

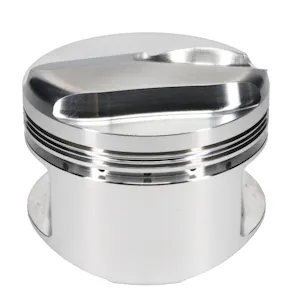

Description: Piston Set, 2618, Dome, 4.310 Bore, 1.648 CD, 0.990 Pin, Set of 8.; JE, Chevrolet, Big Block Chevrolet, 4.310 in. Bore, 1.648 CD, Dome, 8 Cyl. Piston Kit
Description:
Description
JE Auto forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Chevrolet Big Block Engines JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features
Features & benefits
- Designed specifically for Chevrolet Big Block Engines To provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, and locks
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
- Smooth Crown Finish: Deburs all areas around the valve pocket and dome area, to reduces stress risers and prevent hot spots.
- Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Information
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Specifications
- GTIN
- 00193564031693
- Weight
- 16.4 lb
- Height
- 6 in
- Length
- 26 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.06400
- 3D Undercrown Milling
- No
- Accumulator Groove
- Yes
- Add-On
- J100F8-4310-5
- Anodize Top Ring Groove
- No
- Bore Diameter
- 4.310
- Bore Diameter - Web
- 4.310 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>Domestic
- Combo 2
- No
- Compression Height
- 1.648
- Compression Ratio
- 0.54513888888889
- Connecting Rod Length
- 6.135 IN
- Contact Reduction
- No
- Cylinder Head
- CLOSED CHMBR
- DVGP
- No
- Double Pin Oilers
- Yes
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- Big Block
- Engine - Web
- Big Block
- Engine Detail
- CLOSED CHMBR
- Engine Displacement
- 454
- Engine Family
- Big Block
- Engine Stroke
- 4.000
- Engine Type
- ICE
- Exhaust Angle
- 16
- Exhaust Depth
- ^.110
- Forging Type
- Round
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 25
- Intake Depth
- .280
- Intake Diameter
- 2.400
- Lateral Gas Ports
- No
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Mill Undercrown
- No
- Oil Groove Width
- 0.18800
- Oil Ring Thickness
- 0.188
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Average Weight
- 658
- Piston Avg Wt
- 658
- Piston Head Type
- Dome
- Piston Material
- 2618
- Piston Pin Length
- 2.930
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.990
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 8
- Piston Qunatity
- 8
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.004999
- Piston Volume
- 33.00
- Product Market
- Domestic
- Product Type
- Engine Piston Kit
- Ring Set Included
- No
- Ringset Included
- No
- Second Compression Ring Thickness
- 0.0640
- Skirt Coat
- No
- Smooth Crown Finish
- Yes
- Stroke
- 4.000
- Thermal Crown
- No
- Title
- JE Pistons - Chevrolet, Big Block, 4.310 in. Bore, Piston Kit
- Title - Web
- JE Pistons Chevrolet Big Block Piston Kit - 4.310 in. Bore - 1.648 in. CH, 33.00 CC
- Top Compression Ring Thickness
- 0.0640
- Top Groove Width
- 0.06400
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.930
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.990
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Chevrolet Big Block 427

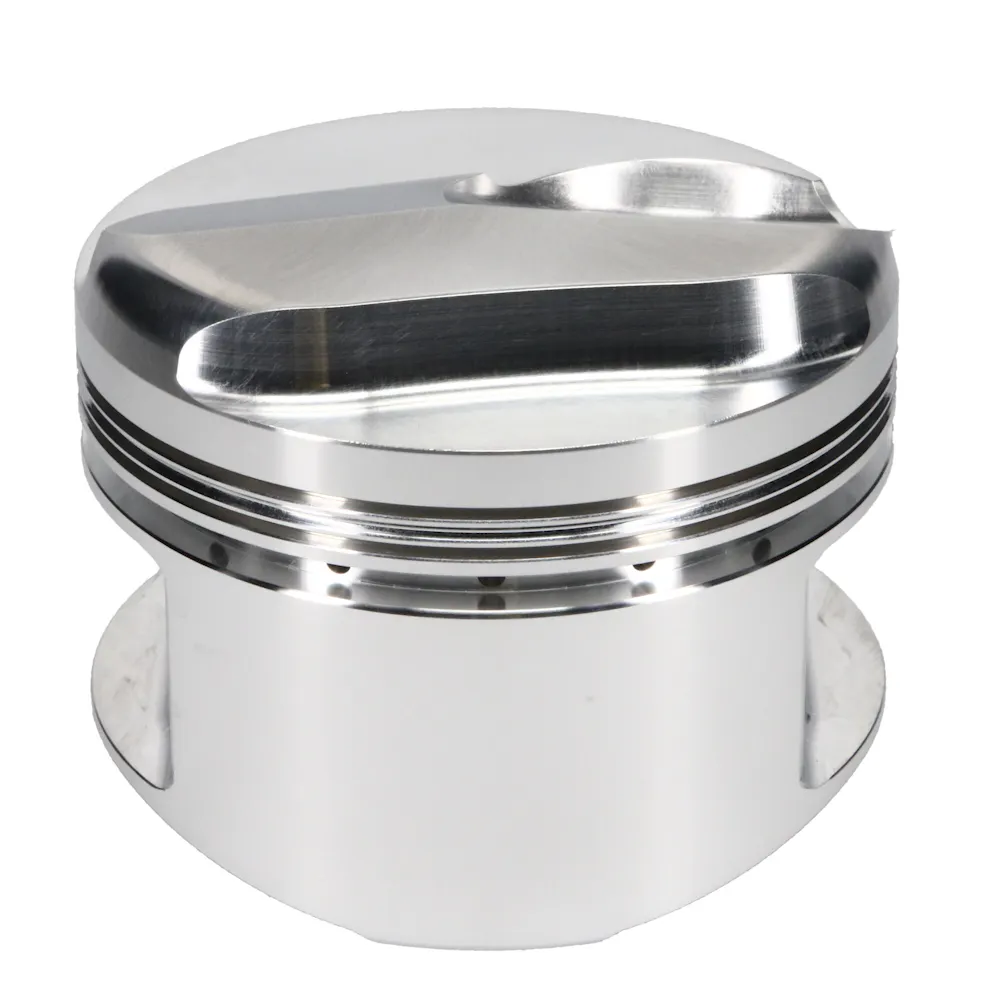

JE Pistons / SRP 258205
