JE Pistons / SRP · 255773S
Part #: 255773S
UPC: 193564014078
Log in for inventory
Notify me when this item is in stock.
Description: MAZDA 1.8L BP KIT; JE, Mazda, BP Series, 3.287 in. Bore, 9.00:1, Flat Top, Single Piston
Description:
Description
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Features & benefits
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
Specifications
- GTIN
- 00193564014078
- Weight
- 1 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 5 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Add-On
- 787-050-MW
- Bore Diameter
- 83.50
- Bore Diameter - Web
- 83.50 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Single Replacement Pistons>Sport Compact
- Compression Height
- 1.205
- Cylinder Head
- 1.8 BP MIATA
- Engine
- BP SERIES
- Engine - Web
- BP Series
- Engine Type
- ICE
- Forging Type
- Round
- Industry
- Automotive
- Make
- MAZDA
- Make - Web
- Mazda
- Oil Ring Thickness
- 0.111
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Average Weight
- 294
- Piston Avg Wt
- 294
- Piston Head Type
- Flat
- Piston Material
- 2618
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.787
- Piston Pin Wall Thickness
- 0.180
- Piston Quantity
- 1
- Piston Qunatity
- 1
- Piston Series
- JE Pistons
- Piston Volume
- -2.00
- Product Market
- Sport Compact
- Product Type
- Engine Piston
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0480
- Title
- JE Pistons - Mazda, BP Series, 83.50 mm Bore, Piston
- Title - Web
- JE Pistons Mazda BP Series Piston - 83.50 mm Bore - 1.205 in. CH, -2.00 CC
- Top Compression Ring Thickness
- 0.0400
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.787
- Wrist Pin Wall Thickness
- 0.180
Fitment status
This product is universal and will fit your application.
Application summary
Mazda 1.8L BP Miata
Resources

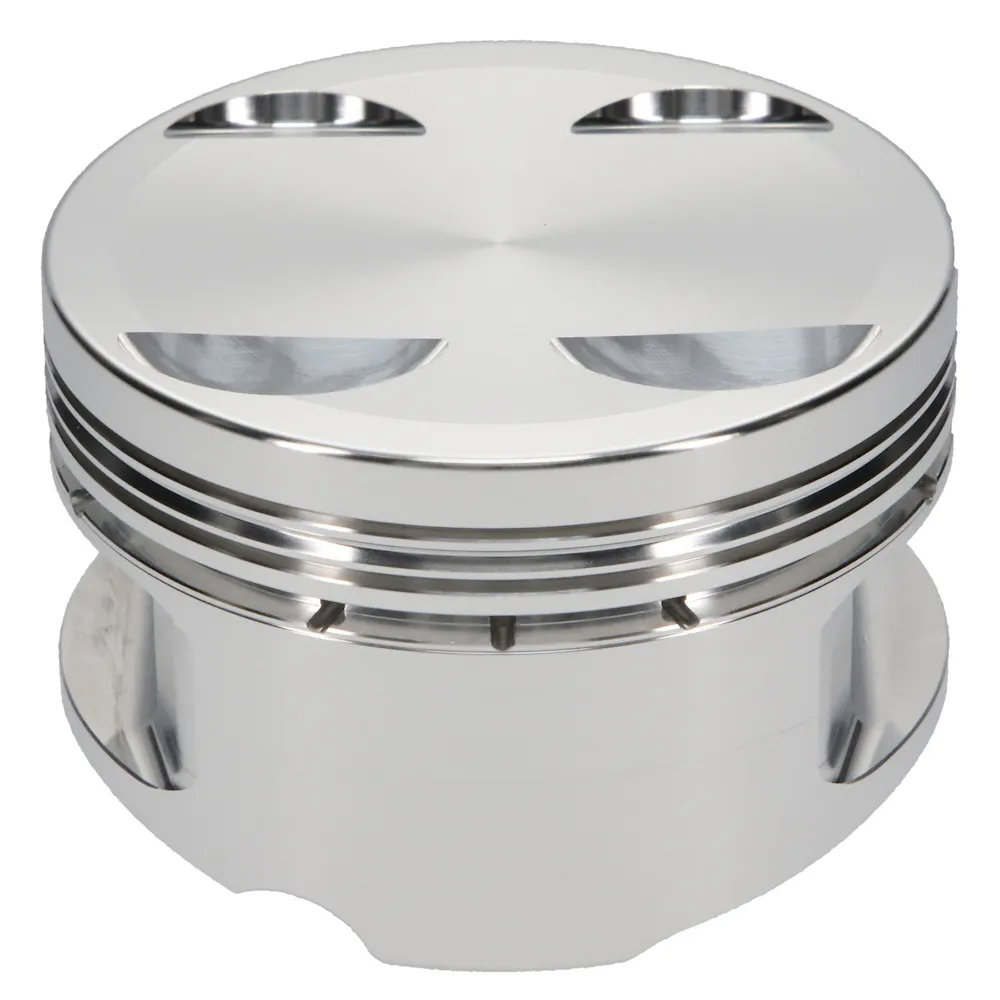

JE Pistons / SRP 255773S
