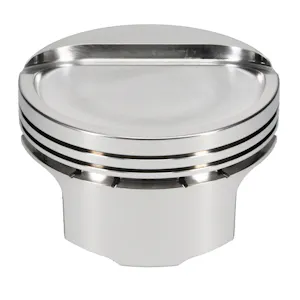

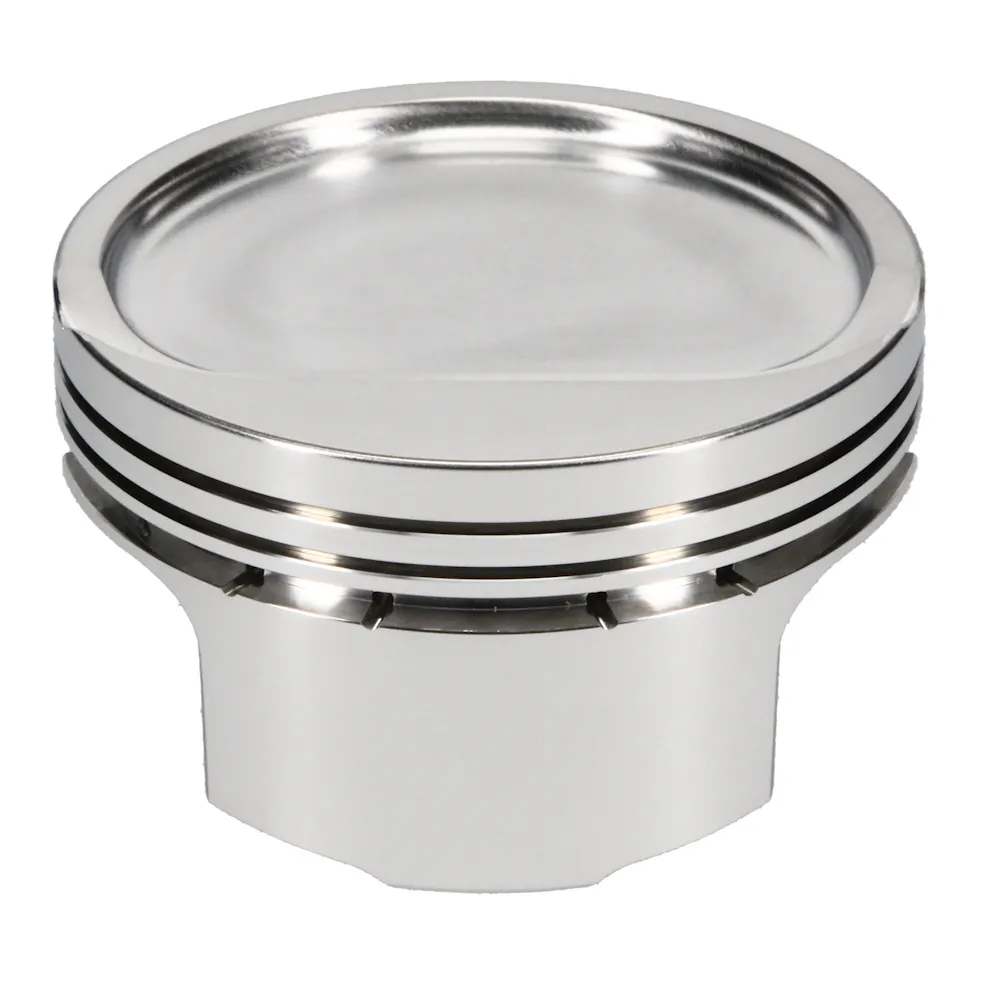

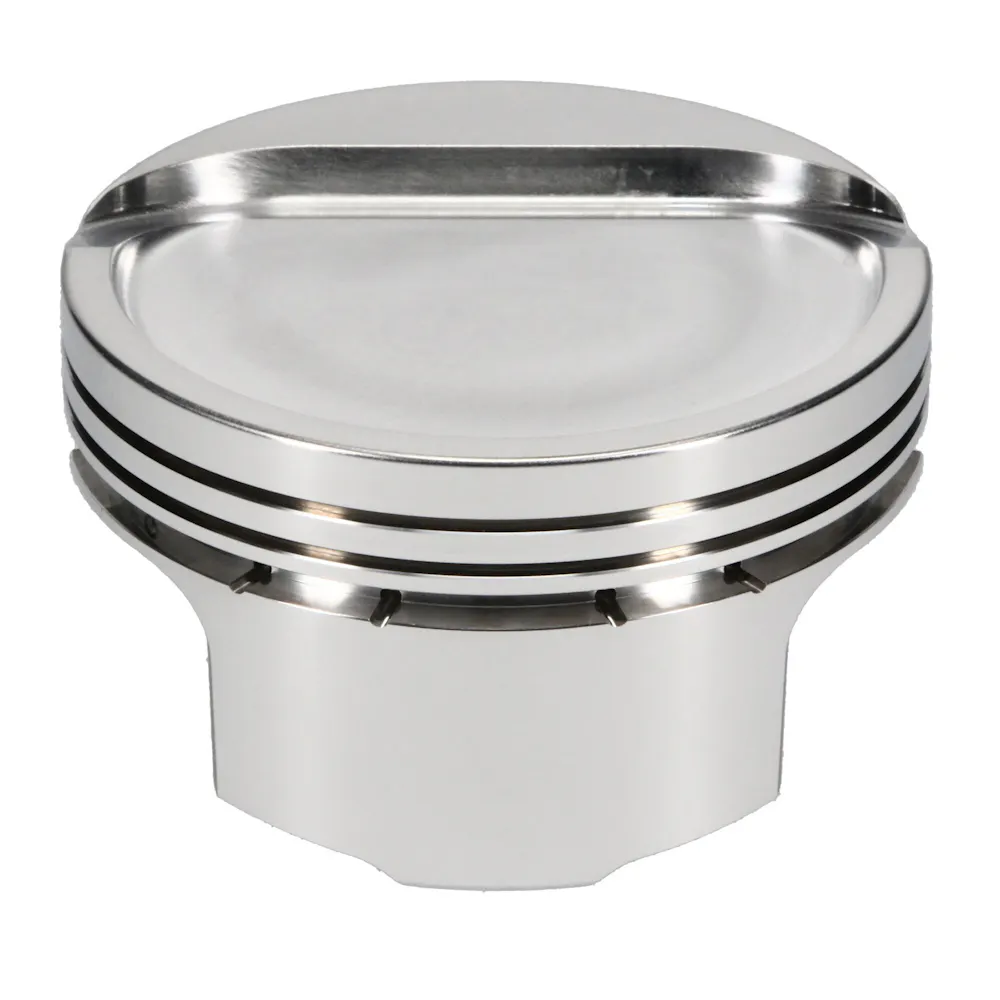

JE Pistons / SRP · 254276S
Part #: 254276S
UPC: 193564263599
Log in for inventory
Notify me when this item is in stock.
Description: 6.0LS2 -29cc INV DOM; SRP, Chevrolet, LS Gen III/IV, 4.005 in. Bore, 1.115 CD, Inverted Dome/Dish, Single Piston
Description:
Description
JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminum alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)
Features & benefits
- Durable 4032 alloy
- Round style forging with forged side relief
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made in the USA by JE Pistons
Specifications
- GTIN
- 00193564263599
- Weight
- 1.3 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 5 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Add-On
- 927-073-MW
- Bore Diameter
- 4.005
- Bore Diameter - Web
- 4.005 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>SRP Pistons>SRP>Single Replacement Pistons
- Compression Height
- 1.115
- Cylinder Head
- LSX/L92 12 DEG
- Engine
- LS Gen III/IV
- Engine - Web
- LS Gen III/IV
- Engine Type
- ICE
- Forging Type
- FSR
- Industry
- Automotive
- Make
- CHEVROLET
- Make - Web
- Chevrolet
- Oil Ring Thickness
- 0.149
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Average Weight
- 392
- Piston Avg Wt
- 392
- Piston Head Type
- Dish
- Piston Material
- 4032
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.927
- Piston Pin Wall Thickness
- 0.150
- Piston Series
- SRP
- Piston Volume
- -29.00
- Product Market
- Domestic
- Product Type
- Engine Piston
- Ring Set Included
- No
- Ringset Included
- No
- Second Compression Ring Thickness
- 0.0600
- Title
- SRP - Chevrolet, LS Gen III/IV, 4.005 in. Bore, Piston
- Title - Web
- SRP Chevrolet LS Gen III/IV Piston - 4.005 in. Bore - 1.115 in. CH, -29.00 CC
- Top Compression Ring Thickness
- 0.0600
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.927
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Chevrolet LS2
