JE Pistons / SRP · 253733L
Part #: 253733L
UPC: 193564209559
Log in for inventory
Notify me when this item is in stock.

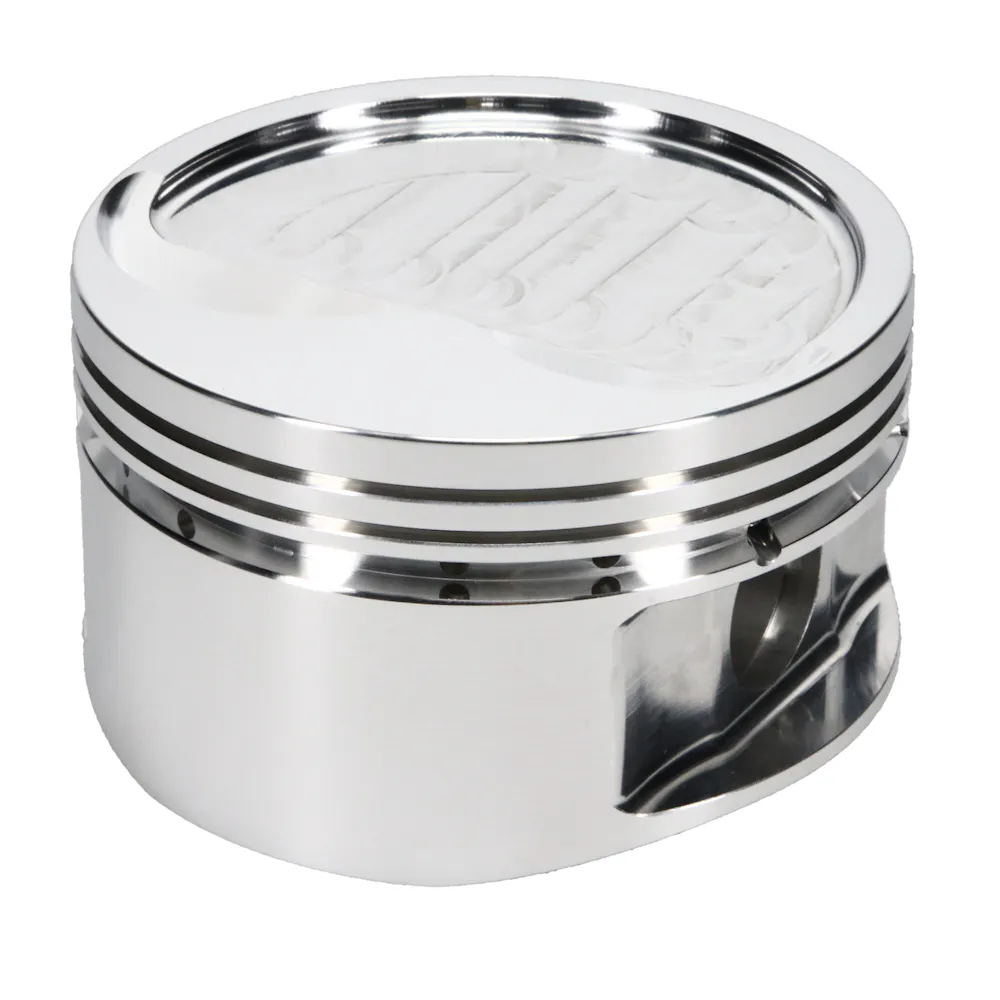

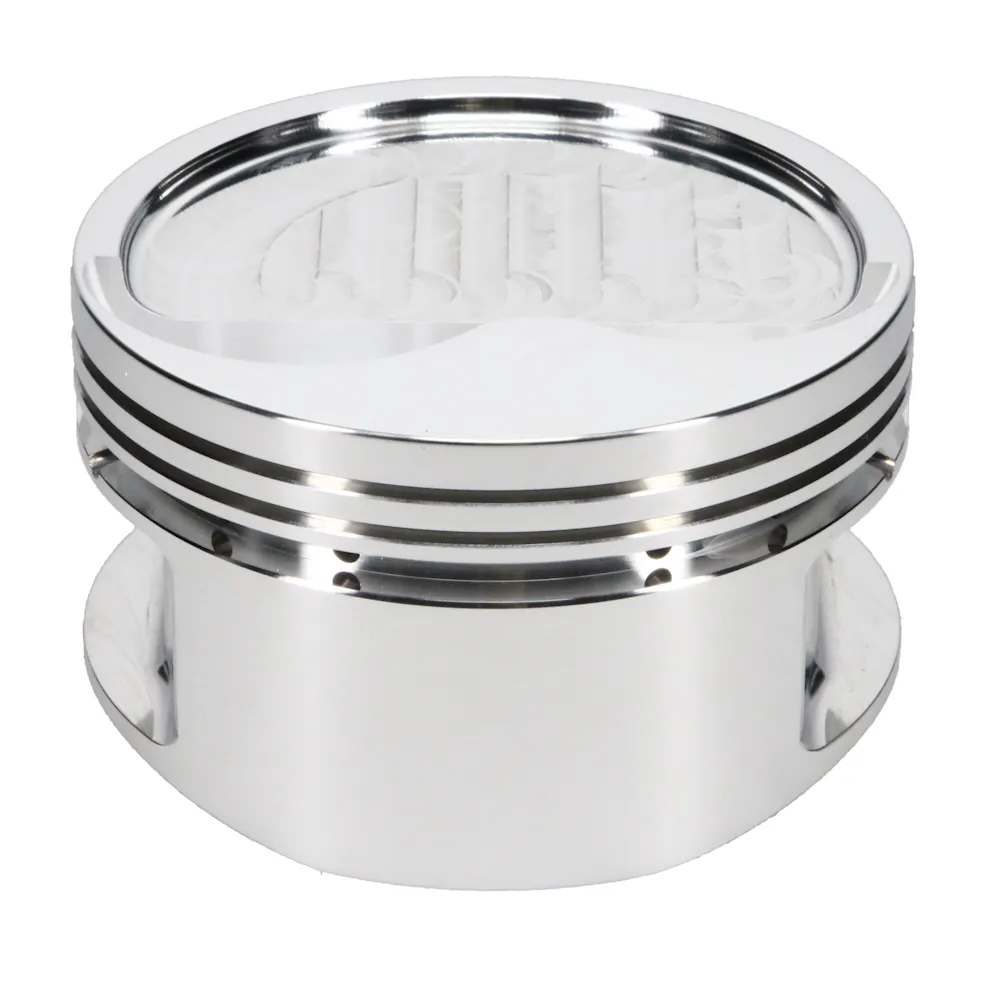

Description: NASCAR CANADA CHRY; JE, Chrysler, Small Block Chrysler, 4.040 in. Bore, 1.665 CD, Inverted Dome/Dish, Left Piston
Description:
Description
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Features & benefits
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
Specifications
- GTIN
- 00193564209559
- Weight
- 1.5 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 5 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- Add-On
- 927-042-CS
- Bore Diameter
- 4.040
- Bore Diameter - Web
- 4.040 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Single Replacement Pistons>Domestic
- Compression Height
- 1.665
- Cylinder Head
- 360 WEDGE
- Engine
- Small Block
- Engine - Web
- Small Block
- Engine Type
- ICE
- Forging Type
- Round
- Industry
- Automotive
- Make
- CHRYSLER
- Make - Web
- Chrysler
- Oil Ring Thickness
- 0.188
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Average Weight
- 504
- Piston Avg Wt
- 504
- Piston Head Type
- Dish
- Piston Material
- 2618
- Piston Orientation
- Left
- Piston Pin Length
- 2.500
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.927
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 1
- Piston Qunatity
- 1
- Piston Series
- JE Pistons
- Piston Volume
- -11.00
- Product Market
- Domestic
- Product Type
- Engine Piston
- Ring Set Included
- No
- Ringset Included
- No
- Second Compression Ring Thickness
- 0.0640
- Title
- JE Pistons - Chrysler, Small Block, 4.040 in. Bore, Piston
- Title - Web
- JE Pistons Chrysler Small Block Piston - 4.040 in. Bore - 1.665 in. CH, -11.00 CC
- Top Compression Ring Thickness
- 0.0640
- Wrist Pin Length
- 2.500
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.927
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Chrysler W-2 NASCAR Canada
