JE Pistons / SRP · 252607
Part #: 252607
UPC: 193564043009
Log in for inventory
Notify me when this item is in stock.

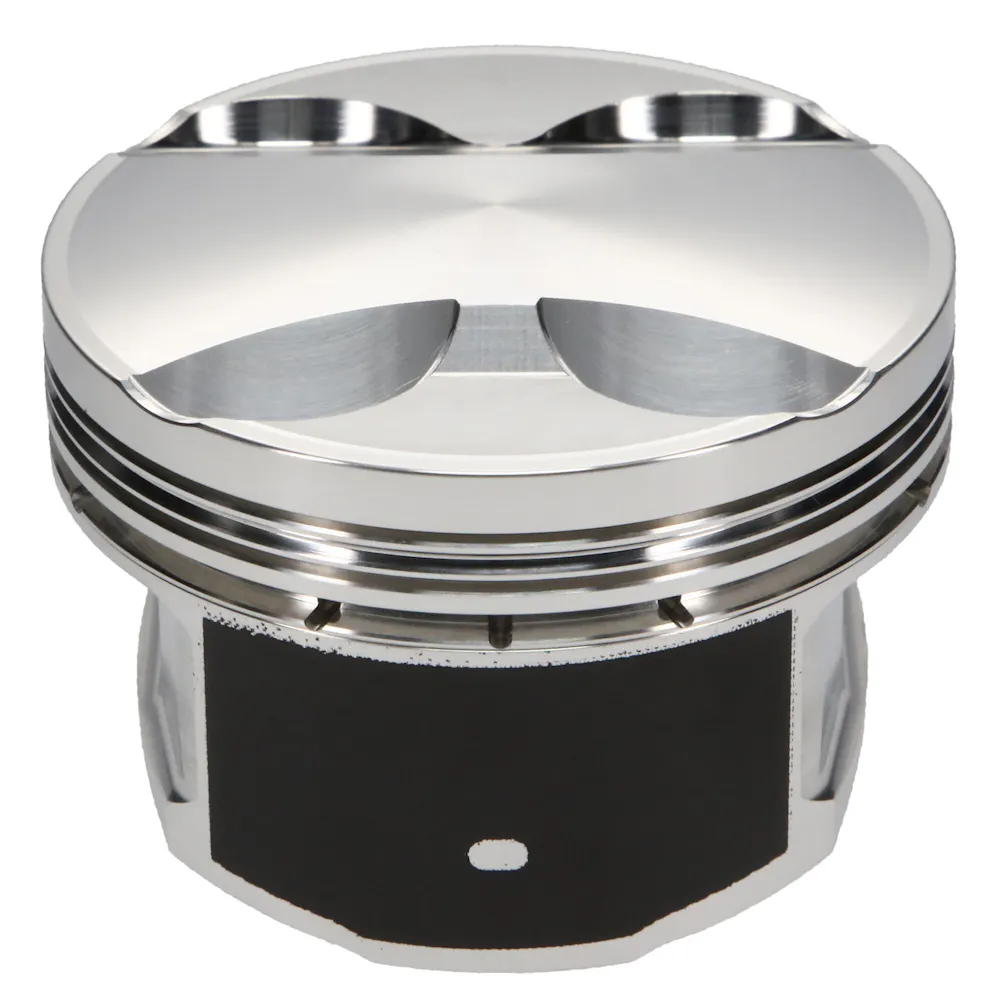

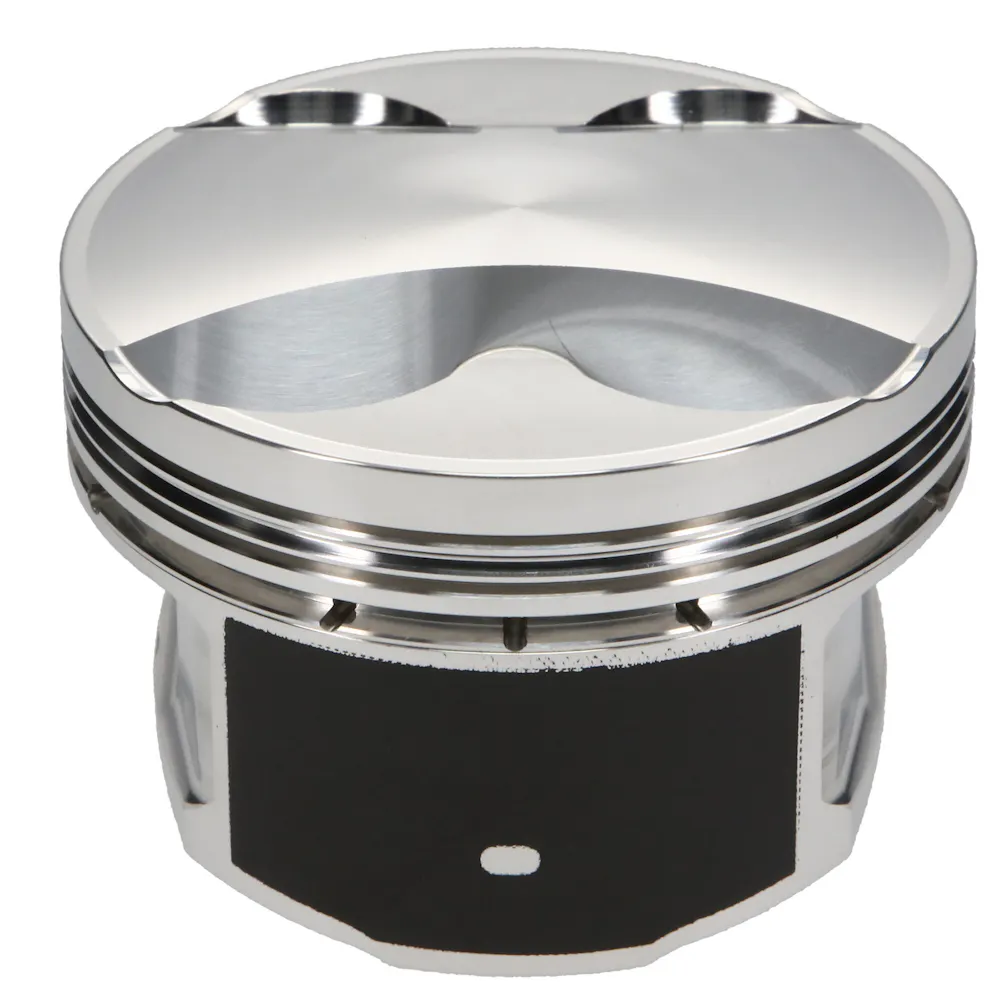

Description: Piston Set, 2618, Dome, 3.425 Bore, 1.181 CD, 0.905 Pin, Set of 4.; JE, Honda, F Series, 3.425 in. Bore, 11.50:1, Dome, 4 Cyl. Piston Kit
Description:
Description
Accumulator Groove, Double Pin Oilers, Pin Fit, and Skirt Coat. Sport Compact, Import and European Pistons are engineered, forged and machined 100% in the USA
Features & benefits
- Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
- Designed specifically for Honda F20C Engines. To provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
- Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
- Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
- Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
Specifications
- GTIN
- 00193564043009
- Weight
- 5.2 lb
- Height
- 5 in
- Length
- 9 in
- Width
- 9 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.04800
- 3D Undercrown Milling
- No
- Accumulator Groove
- Yes
- Add-On
- JG1001-3425
- Anodize Top Ring Groove
- No
- Bore Diameter
- 87.00
- Bore Diameter - Web
- 87.00 MM
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>Sport Compact
- Combo 2
- No
- Compression Height
- 1.181
- Compression Ratio
- 0.46180555555556
- Connecting Rod Length
- 6.024 IN
- Contact Reduction
- No
- Cylinder Head
- F20C1
- DVGP
- No
- Double Pin Oilers
- Yes
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- F Series
- Engine - Web
- F Series
- Engine Displacement
- 2000
- Engine Stroke
- 3.307
- Engine Type
- ICE
- Exhaust Angle
- 13
- Exhaust Depth
- .116
- Exhaust Diameter
- 1.300
- Forging Type
- Round
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 13
- Intake Depth
- .154
- Intake Diameter
- 1.570
- Lateral Gas Ports
- No
- Make
- Honda
- Make - Web
- Honda
- Mill Undercrown
- No
- Oil Groove Width
- 0.11100
- Oil Ring Thickness
- 0.111
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Average Weight
- 320
- Piston Avg Wt
- 320
- Piston Head Type
- Dome
- Piston Material
- 2618
- Piston Pin Length
- 2.250
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.905
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 4
- Piston Qunatity
- 4
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.003699
- Piston Volume
- 5.50
- Product Market
- Sport Compact
- Product Type
- Engine Piston Kit
- Ring Set - Recommended
- JG1001-3425
- Ring Set Included
- Yes
- Ring Set Part Number
- JG1001-3425
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0480
- Skirt Coat
- Yes
- Smooth Crown Finish
- No
- Stroke
- 3.307
- Thermal Crown
- No
- Title
- JE Pistons - Honda, F Series, 87.00 mm Bore, Piston Kit
- Title - Web
- JE Pistons Honda F Series Piston Kit - 87.00 mm Bore - 1.181 in. CH, 5.50 CC
- Top Compression Ring Thickness
- 0.0400
- Top Groove Width
- 0.04000
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.250
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.905
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Honda F20C1 S2000
