JE Pistons / SRP · 232470
Part #: 232470
UPC: 193564046994
Log in for inventory
Notify me when this item is in stock.

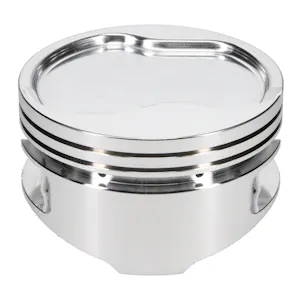

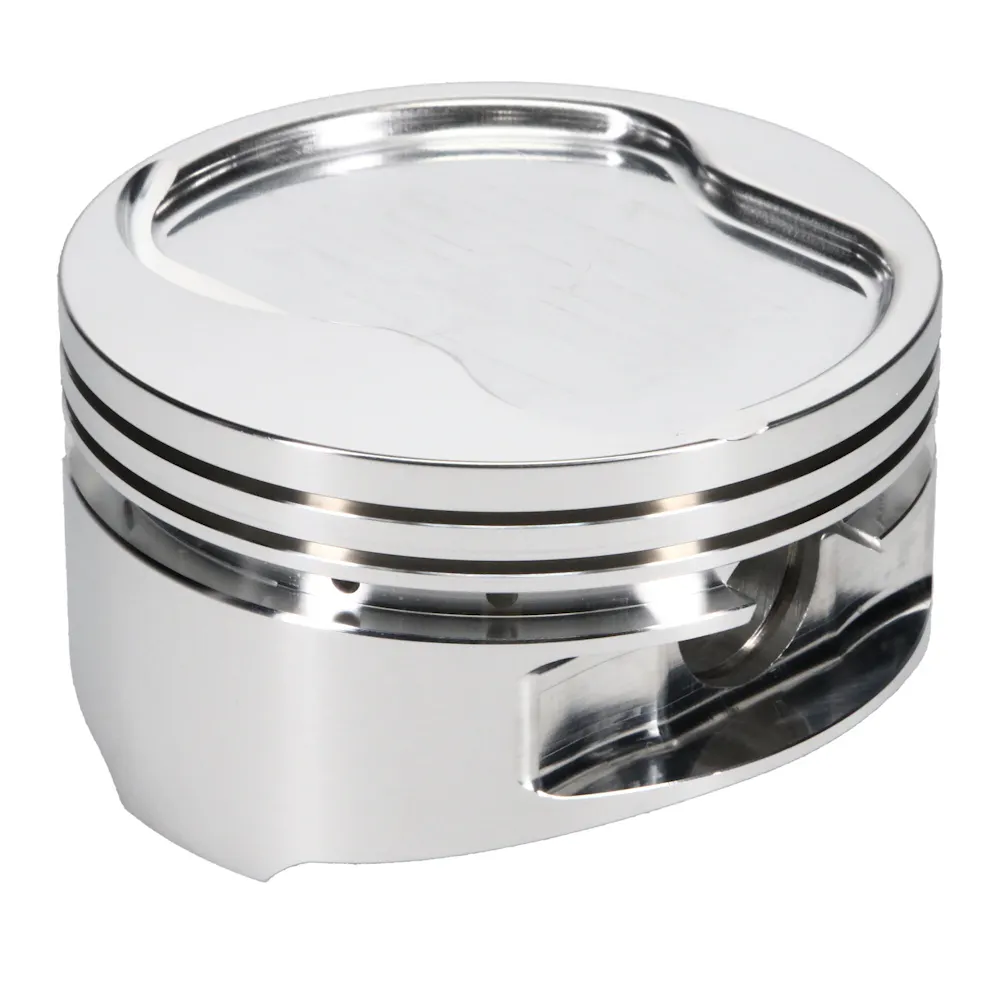

Description: Piston Set, 2618, Inv Dome/Dish, 4.030 Bore, 1.100 CD, 0.927 Pin, Set of 8.; 4.030 in. Bore - 1.100 CD - (-11.0 cc) - 8 Cyl. Piston Kit
Description:
Description
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Features & benefits
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
Information
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Specifications
- GTIN
- 00193564046994
- Weight
- 13 lb
- Height
- 6 in
- Length
- 26 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.06400
- Add-On
- J10008-4030-5
- Bore Diameter
- 4.030
- Bore Diameter - Web
- 4.030 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>Domestic
- Compression Height
- 1.100
- Connecting Rod Length
- 5.400 IN
- Cylinder Head
- TWISTED WEDGE SMALL BLOCK FORD
- EBAY Category ID
- 33623
- Engine
- Small Block
- Engine - Web
- Small Block
- Engine Detail
- Small Block
- Engine Family
- Small Block
- Engine Stroke
- 3.400
- Engine Type
- ICE
- Exhaust Angle
- 17
- Exhaust Depth
- .170
- Forging Type
- Round
- Industry
- Automotive
- Intake Angle
- 15
- Intake Depth
- .250
- Make
- Ford
- Make - Web
- Ford
- Oil Groove Width
- 0.21800
- Oil Rail Support Required Part Number
- Yes
- Oil Rail Support Required. Part Number:
- 4030-183
- Oil Ring Thickness
- 0.218
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Piston Average Weight
- 430
- Piston Avg Wt
- 430
- Piston Head Type
- Dish
- Piston Material
- 2618
- Piston Pin Length
- 2.750
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.927
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 8
- Piston Qunatity
- 8
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.004
- Piston Volume
- -11.00
- Product Market
- Domestic
- Product Type
- Engine Piston Kit
- Ring Set Included
- No
- Ringset Included
- No
- Second Compression Ring Thickness
- 0.0640
- Stroke
- 3.400
- Title
- JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston Kit
- Title - Web
- JE Pistons Heavy Duty Inverted Dome Piston Kit - Ford 331/347 Twisted Series
- Top Compression Ring Thickness
- 0.0640
- Top Groove Width
- 0.06400
- Wrist Pin Length
- 2.750
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.927
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Ford Small Block 302

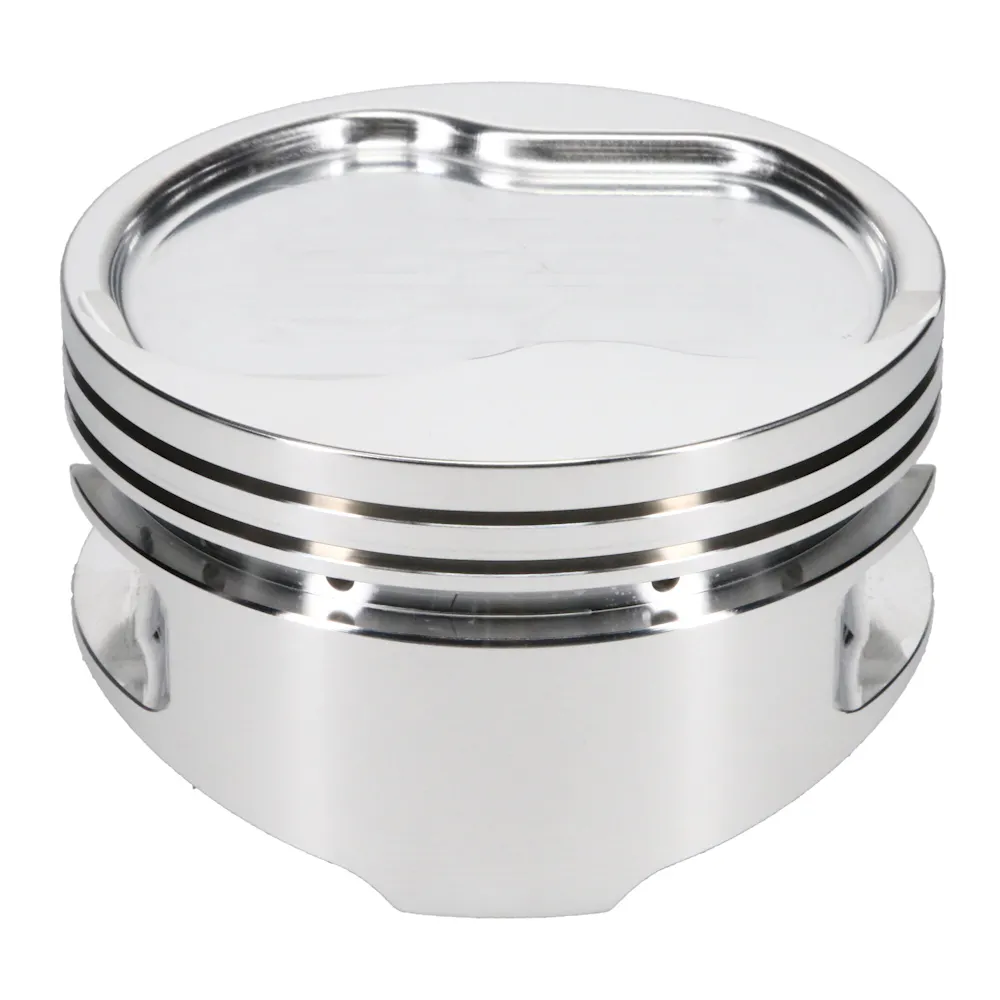

JE Pistons / SRP 232470
