JE Pistons / SRP · 170855
Part #: 170855
UPC: 193564035004
Log in for inventory
Notify me when this item is in stock.

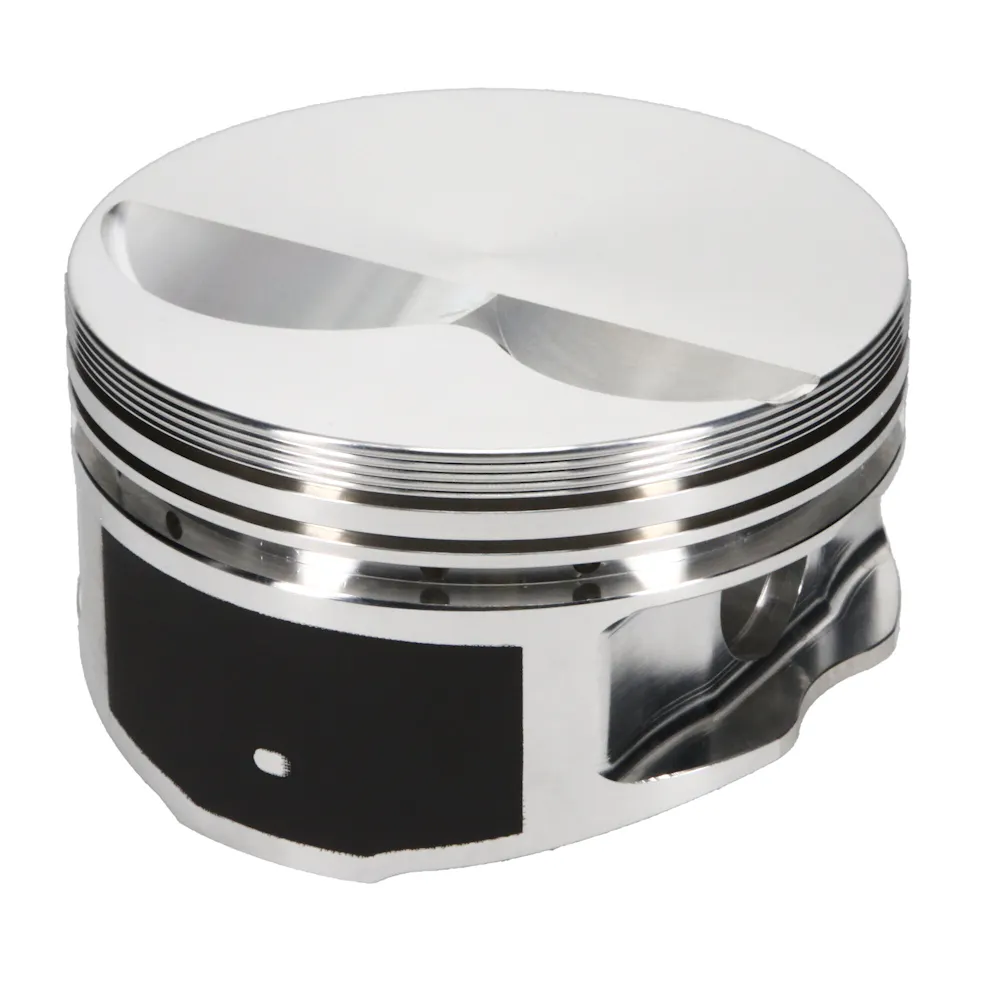

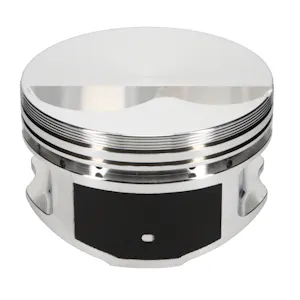

Description: Piston Set, 2618, Flat Top, 4.030 Bore, 1.175 CD, 0.927 Pin, Set of 8.; 4.030 in. Bore - 1.175 CD - (-5.0 cc) - 8 Cyl. Piston Kit
Description:
Description
Pin Fit. JE Auto Pistons are engineered, forged and machined 100% in the USA
Features & benefits
- Designed specifically for Ford Small Block Engines To provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, and locks
- Made 100% in the USA
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Information
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Specifications
- GTIN
- 00193564035004
- Weight
- 12.6 lb
- Height
- 6 in
- Length
- 26 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.06400
- 3D Undercrown Milling
- No
- Accumulator Groove
- No
- Add-On
- J10008-4030-5
- Anodize Top Ring Groove
- No
- Bore Diameter
- 4.030
- Bore Diameter - Web
- 4.030 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>Domestic
- Combo 2
- No
- Compression Height
- 1.175
- Contact Reduction
- No
- Cylinder Head
- SMALL BLOCK FORD 20 DEG
- DVGP
- No
- Double Pin Oilers
- No
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- Small Block
- Engine - Web
- Small Block
- Engine Detail
- Small Block
- Engine Displacement
- 350 Small block
- Engine Family
- Small Block
- Engine Type
- ICE
- Exhaust Angle
- 20
- Exhaust Depth
- S
- Forging Type
- Round
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 20
- Intake Depth
- .260
- Lateral Gas Ports
- No
- Make
- Ford
- Make - Web
- Ford
- Mill Undercrown
- No
- Oil Groove Width
- 0.21800
- Oil Rail Support Required Part Number
- Yes
- Oil Rail Support Required. Part Number:
- 4030-183
- Oil Ring Thickness
- 0.218
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Average Weight
- 451
- Piston Avg Wt
- 451
- Piston Head Type
- Flat
- Piston Material
- 2618
- Piston Pin Length
- 2.750
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.927
- Piston Pin Wall Thickness
- 0.150
- Piston Quantity
- 8
- Piston Qunatity
- 8
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.0045
- Piston Volume
- -5.00
- Product Market
- Domestic
- Product Type
- Engine Piston Kit
- Ring Set Included
- No
- Ringset Included
- No
- Second Compression Ring Thickness
- 0.0640
- Skirt Coat
- No
- Smooth Crown Finish
- No
- Thermal Crown
- No
- Title
- JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston Kit
- Title - Web
- JE Pistons Heavy Duty Flat Top Piston Kit - Ford 302 Stroker
- Top Compression Ring Thickness
- 0.0640
- Top Groove Width
- 0.06400
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.750
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.927
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Ford Small Block 302/351 Windsor

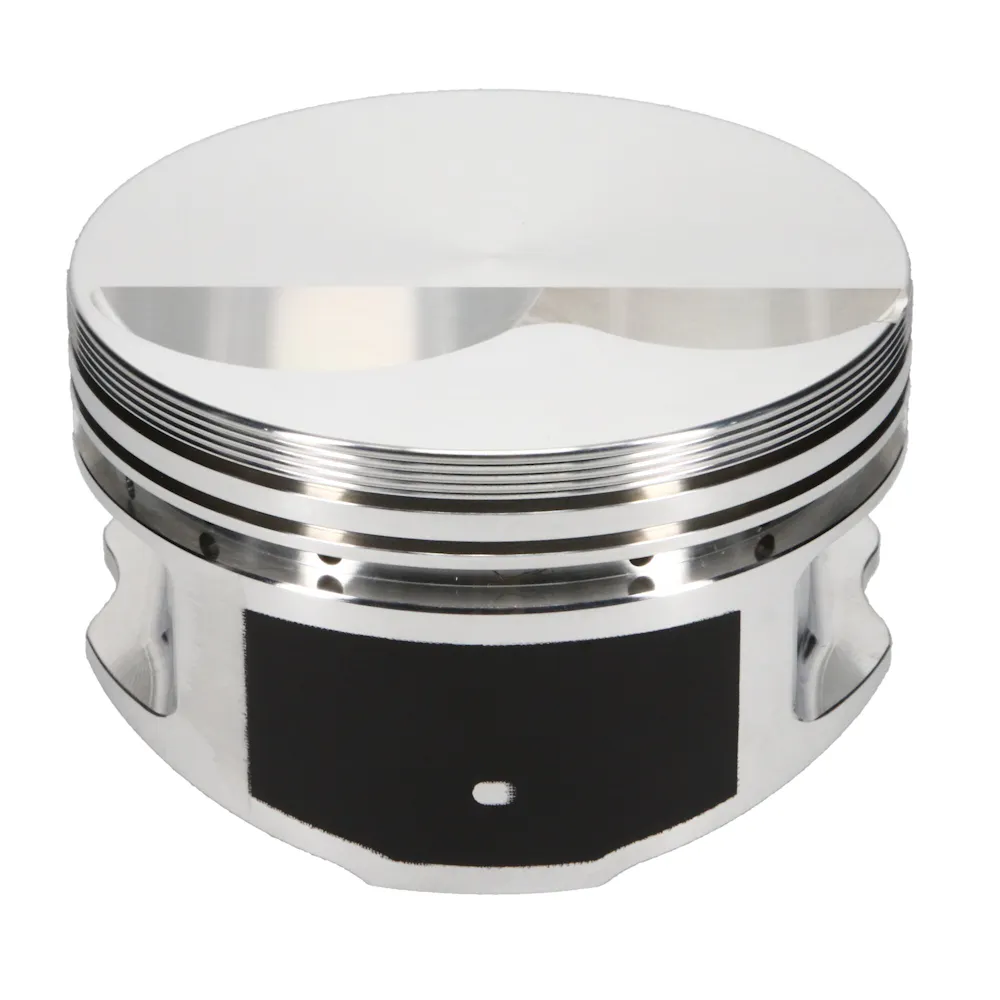

JE Pistons / SRP 170855
