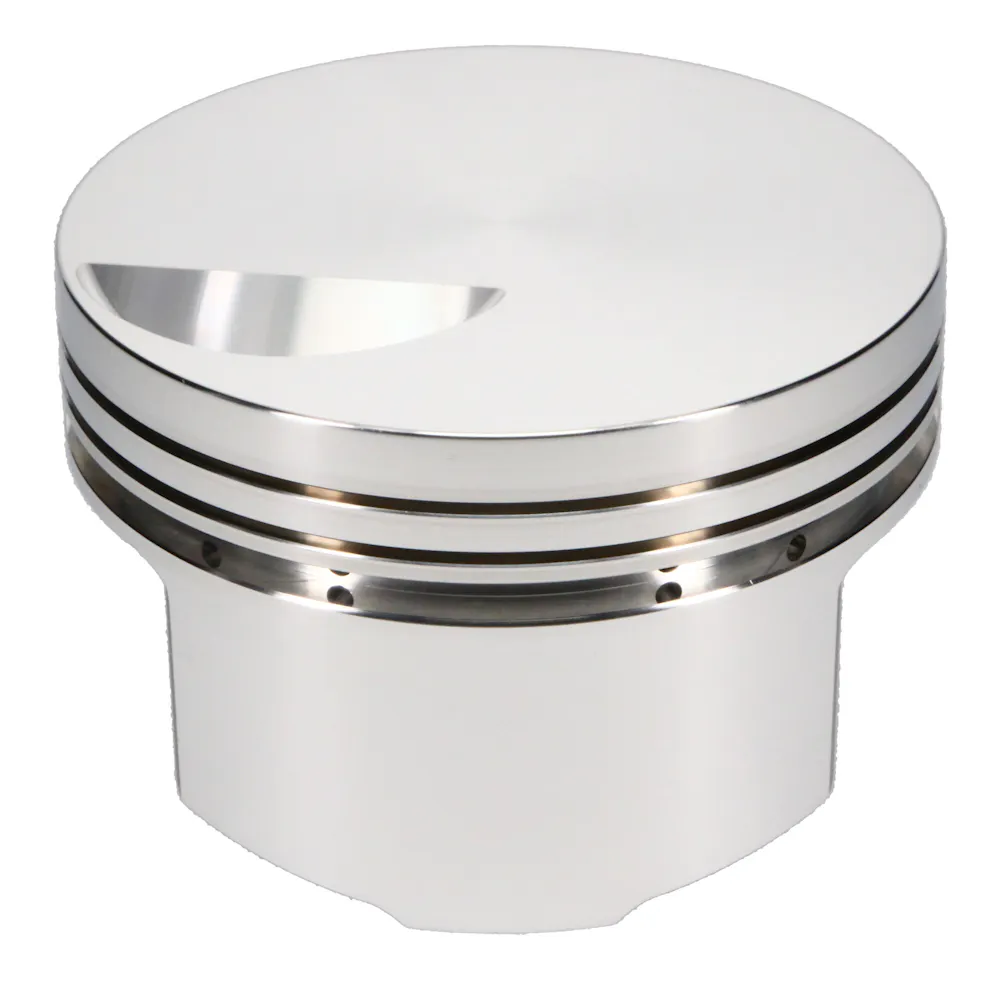

JE Pistons / SRP · 142972
Part #: 142972
UPC: 193564249968
Log in for inventory
Notify me when this item is in stock.
Description: Piston Set, 4032, Flat Top, 4.280 Bore, 1.395 CD, 0.990 Pin, Set of 8.; SRP, Chevrolet, Big Block Chevrolet, 4.280 in. Bore, 1.395 CD, Flat Top, 8 Cyl. Piston Kit
Description:
Description
Pins, Wire Locks, and Pin Fit.
Features & benefits
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion, SRP Pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics.
- Designed specifically for Chevrolet Big Block Engines to provide optimized performance durability
- Includes high-quality wrist pins, forced wrist pin oiling and locks
- Made 100% in the USA
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Information
These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.
Specifications
- GTIN
- 00193564249968
- Weight
- 14.8 lb
- Height
- 6 in
- Length
- 26 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.06400
- 3D Undercrown Milling
- No
- Accumulator Groove
- No
- Add-On
- S100S8-4280-5
- Anodize Top Ring Groove
- No
- Bore Diameter
- 4.280
- Bore Diameter - Web
- 4.280 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>SRP Pistons>SRP>Piston Kits
- Combo 2
- No
- Compression Height
- 1.395
- Connecting Rod Length
- 6.385 IN
- Contact Reduction
- No
- Cylinder Head
- OPEN CHAMBER
- DVGP
- No
- Double Pin Oilers
- No
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- Big Block
- Engine - Web
- Big Block
- Engine Detail
- OPEN CHAMBER
- Engine Displacement
- 454
- Engine Family
- Big Block
- Engine Stroke
- 4.000
- Engine Type
- ICE
- Exhaust Angle
- 0
- Forging Type
- FSR
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 25
- Intake Depth
- .290
- Intake Diameter
- 2.501
- Lateral Gas Ports
- No
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Mill Undercrown
- No
- Oil Groove Width
- 0.18800
- Oil Ring Thickness
- 0.188
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Average Weight
- 556
- Piston Avg Wt
- 556
- Piston Head Type
- Flat
- Piston Material
- 4032
- Piston Pin Length
- 2.930
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.990
- Piston Pin Wall Thickness
- 0.150
- Piston Series
- SRP
- Piston To Wall Clearance
- -0.003499
- Piston Volume
- -3.00
- Product Market
- Domestic
- Product Type
- Engine Piston Kit
- Ring Set Included
- No
- Ringset Included
- No
- Second Compression Ring Thickness
- 0.0640
- Skirt Coat
- No
- Smooth Crown Finish
- No
- Stroke
- 4.000
- Thermal Crown
- No
- Title
- SRP - Chevrolet, Big Block, 4.280 in. Bore, Piston Kit
- Title - Web
- SRP Chevrolet Big Block Piston Kit - 4.280 in. Bore - 1.395 in. CH, -3.00 CC
- Top Compression Ring Thickness
- 0.0640
- Top Groove Width
- 0.06400
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.930
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.990
- Wrist Pin Wall Thickness
- 0.150
Fitment status
This product is universal and will fit your application.
Application summary
Chevrolet Big Block 454
