JE Pistons / SRP · 118560
Part #: 118560
UPC: 193564035011
Log in for inventory
Notify me when this item is in stock.

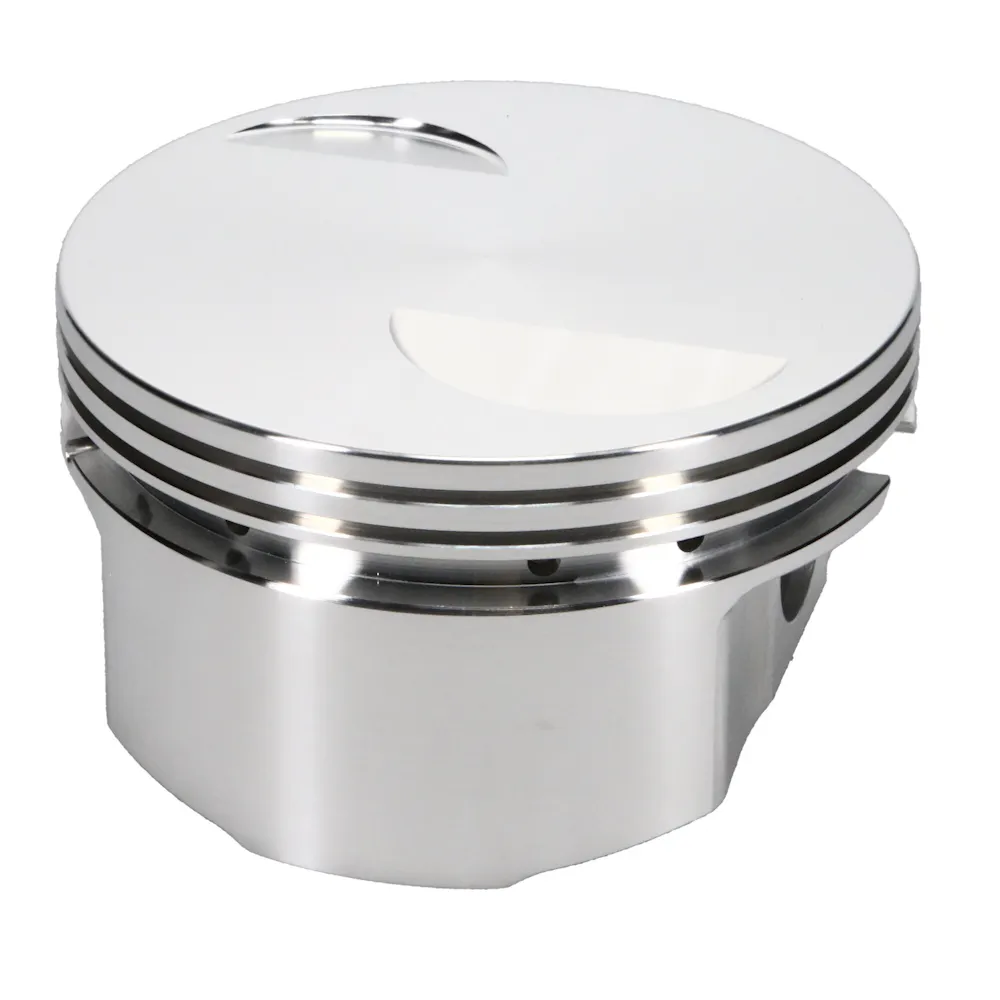

Description: Piston Set, 2618, Flat Top, 3.820 Bore, 1.090 CD, 0.927 Pin, Set of 4.; 3.820 in. Bore - 1.090 CD - (-2.0 cc) - 8 Cyl. Piston Kit
Description:
Description
Pin Fit. JE Auto Pistons are engineered, forged and machined 100% in the USA
Features & benefits
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for Ford Pinto 2300cc Engines To provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, and locks
- Made 100% in the USA
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Information
JE designs are specifically engineered for extreme upplications up to, and including, professional competition
Specifications
- GTIN
- 00193564035011
- Weight
- 5.5 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 9 in
- EO
- Offroad
- Life cycle
- Available to Order
- Warehouse brand code
- JEP
- AAIA brand code
- BHXG
Attributes
- 2nd Groove Width
- 0.06400
- 3D Undercrown Milling
- No
- Accumulator Groove
- No
- Add-On
- J100F1-3820-5
- Anodize Top Ring Groove
- No
- Bore Diameter
- 3.820
- Bore Diameter - Web
- 3.820 IN
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>JE Pistons>Piston Kits>Domestic
- Combo 2
- No
- Compression Height
- 1.090
- Connecting Rod Length
- 5.700 IN
- Contact Reduction
- No
- Cylinder Head
- PINTO
- DVGP
- No
- Double Pin Oilers
- No
- EBAY Category ID
- 33623
- EN Plating
- No
- Econo Undercrown Milling
- No
- Engine
- Pinto
- Engine - Web
- Pinto
- Engine Displacement
- 302 SB
- Engine Stroke
- 3.126
- Engine Type
- ICE
- Exhaust Angle
- 23
- Exhaust Depth
- ^.063
- Forging Type
- Round
- Gas Distribution
- No
- Industry
- Automotive
- Intake Angle
- 35
- Intake Depth
- .285
- Intake Diameter
- 2.450
- Lateral Gas Ports
- No
- Make
- Ford
- Make - Web
- Ford
- Mill Undercrown
- No
- Oil Groove Width
- 0.21800
- Oil Rail Support Required Part Number
- Yes
- Oil Rail Support Required. Part Number:
- 3812-173
- Oil Ring Thickness
- 0.218
- Out of Stock Message
- Please Allow Approximately 3 Weeks or Less for Shipping
- Pin Fit
- Yes
- Piston Average Weight
- 349
- Piston Avg Wt
- 349
- Piston Head Type
- Flat
- Piston Material
- 2618
- Piston Pin Length
- 2.500
- Piston Pin Material
- 5115
- Piston Pin Outside Diameter
- 0.927
- Piston Pin Wall Thickness
- 0.130
- Piston Quantity
- 4
- Piston Qunatity
- 4
- Piston Series
- JE Pistons
- Piston To Wall Clearance
- -0.004
- Piston Volume
- -2.00
- Product Market
- Domestic
- Product Type
- Engine Piston Kit
- Ring Set - Recommended
- J100F1-3820-5
- Ring Set Included
- Yes
- Ring Set Part Number
- J100F1-3820-5
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 0.0640
- Skirt Coat
- No
- Smooth Crown Finish
- No
- Stroke
- 3.126
- Thermal Crown
- No
- Title
- JE Pistons - Ford, Pin.to, 3.820 in. Bore, Piston Kit
- Title - Web
- JE Pistons Flat Top Piston Kit - Pinto / Mini Stock
- Top Compression Ring Thickness
- 0.0640
- Top Groove Width
- 0.06400
- Tuff Skirt
- No
- Ultra Dome
- No
- Ultra Groove
- No
- Ultra Groove Plus Gas Port
- No
- Vertical Gas Ports
- No
- Wrist Pin Length
- 2.500
- Wrist Pin Material
- 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Outer Diameter
- 0.927
- Wrist Pin Wall Thickness
- 0.130
Fitment status
This product is universal and will fit your application.
Application summary
Ford Pinto 2300

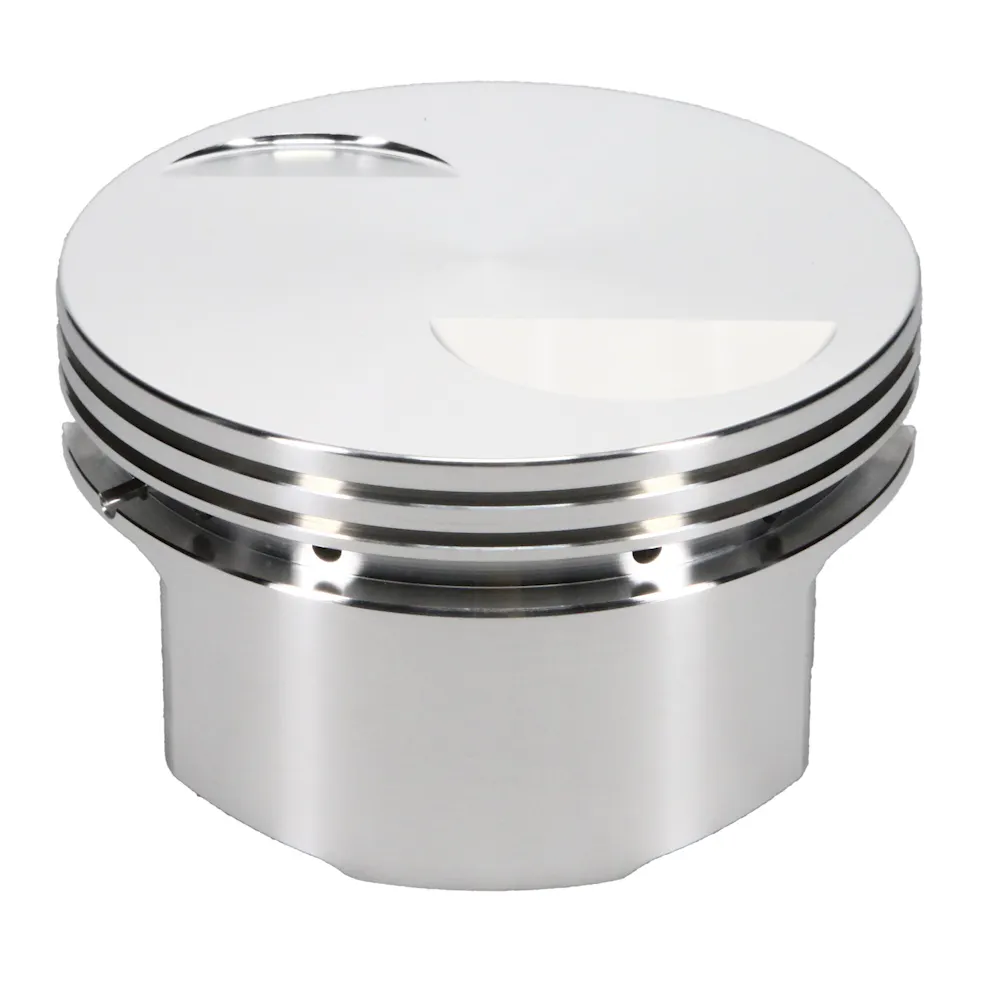

JE Pistons / SRP 118560
