Icon Forged Pistons · SIC943L.030

Part #: SIC943L.030
UPC: 800745192653

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Single Dish Pistons-Left

Log in to order

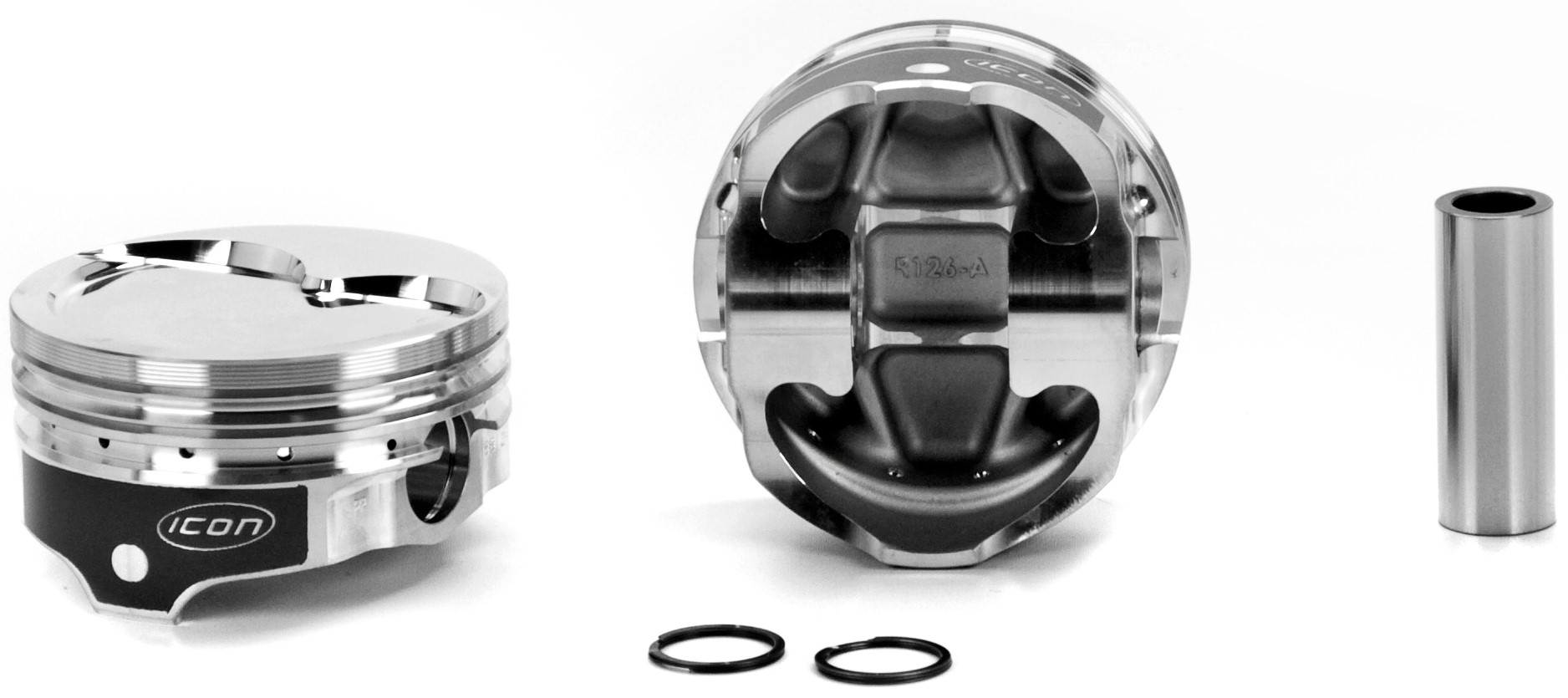

Description: ICON Forged Piston - Pontiac 495 Stroker 6.7 Rod +16.8cc DISH 2V

Description

ICON Forged Piston - Pontiac 495 Stroker 6.7 Rod +16.8cc DISH 2V

Features & benefits

Centered pin. Uses BBC wrist pin diameter. Standard bore based off 4.125 - 030 will net 4.155 bore.

Specifications

GTIN: 00800745192653
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC943
Bore (in): 4.125
Bore (mm): 104.8
Compression Ratio: 72-11.3, 87-9.9
Crown (cc): +16.8cc
Crown Type: DISH 2V
Eng. Disp Liters: 8.1
Eng. Disp. In.: 495
Engine Family: Pontiac V8
Engine Manufacturer: Pontiac
Exhaust Valve Depth/diameter: .206/1.780
Intake Valve Depth/diameter: .210/2.230
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 10.25
Oversize: .030
Oversizes: .030 .040 .060 .065 .070 .075 .085
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: .990x3.000
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.7
Rod (mm): 170.18
Sold As: SINGLE
Stroke (in): 4.5
Stroke (mm): 114.3
Top Land: .250
Year Range: -

Fitment status

This product is universal and will fit your application.
