Icon Forged Pistons · IC9994CKTS.005

Part #: IC9994CKTS.005
UPC: 800745266286

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: FHR Series Dish Piston & Ring Kits

Log in to order

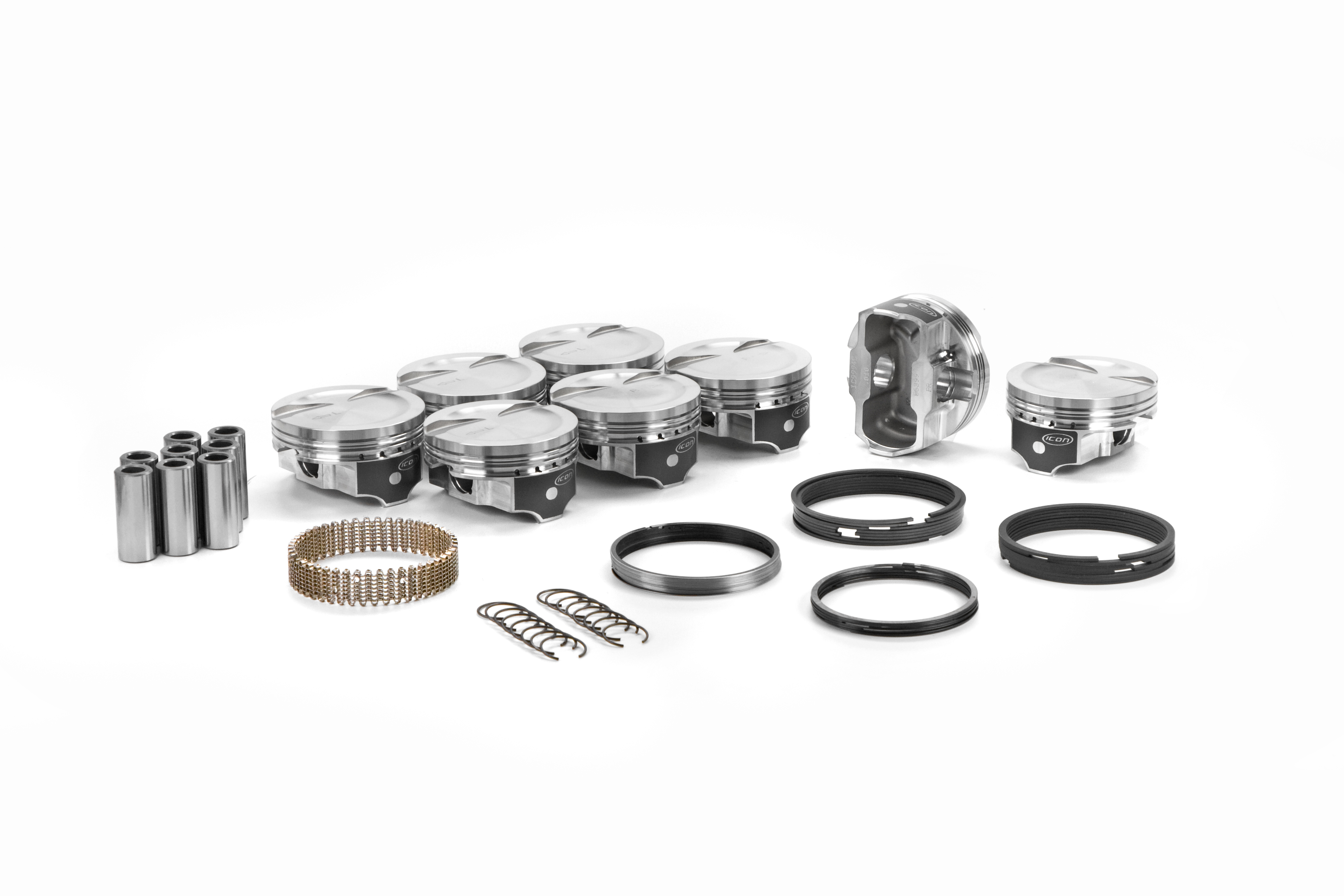

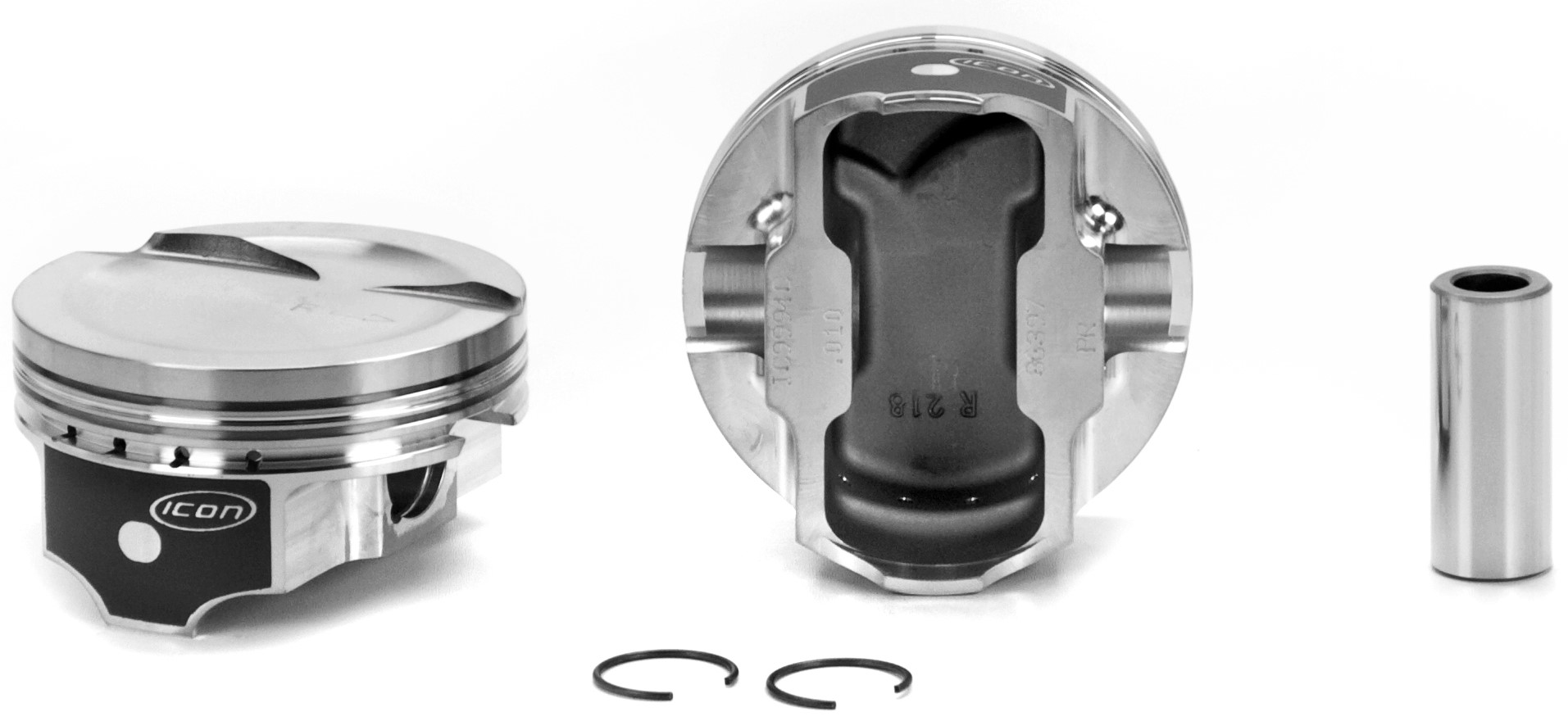

Description: ICON Piston - GM LS1, LS6 5.7L w/4.00 stroke, 10cc Dish. Kit with Rings

Description

ICON Piston - GM LS1, LS6 5.7L w/4.00 stroke, 10cc Dish. Kit with Rings

Features & benefits

.030 offset pin. Right and left bank pistons. Fits 15 degree valve angle heads. Use LS1, LS6 type block.

Specifications

GTIN: 00800745266286
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 4032
Base Number: IC9994C
Bore (in): 3.898
Bore (mm): 99
Crown (cc): +10cc
Crown Type: DISH 2V
Eng. Disp Liters: 6.3
Eng. Disp. In.: 383
Engine Family: Chevrolet SB V8 Gen III/IV (LS1/LS6 5.7L Block)
Engine Manufacturer: GM
Make For Engine Family: General Motors
Oe Deck Height: 9.240
Oversize: .005
Oversizes: .005 .010
Pin Configuration: Offset
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: .9270x2.250x.180C-SCR415H
Pin Type: Press or Floating
Ring Pack: 1.5mm, 1.5mm, 3.0mm
Rod (in): 6.125
Rod (mm): 155.600
Sold As: KIT W/RINGS
Stroke (in): 4.000
Stroke (mm): 101.6
Top Land: .265

Fitment status

This product is universal and will fit your application.
