Icon Forged Pistons · IC9988CKTS.010

Part #: IC9988CKTS.010
UPC: 800745255976

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Coated Piston and Ring Kits

Log in to order

Description: ICON Forged Coated Piston Kit - GM LS1, LS6 5.7L with 3.622 stroke with Rings

Description

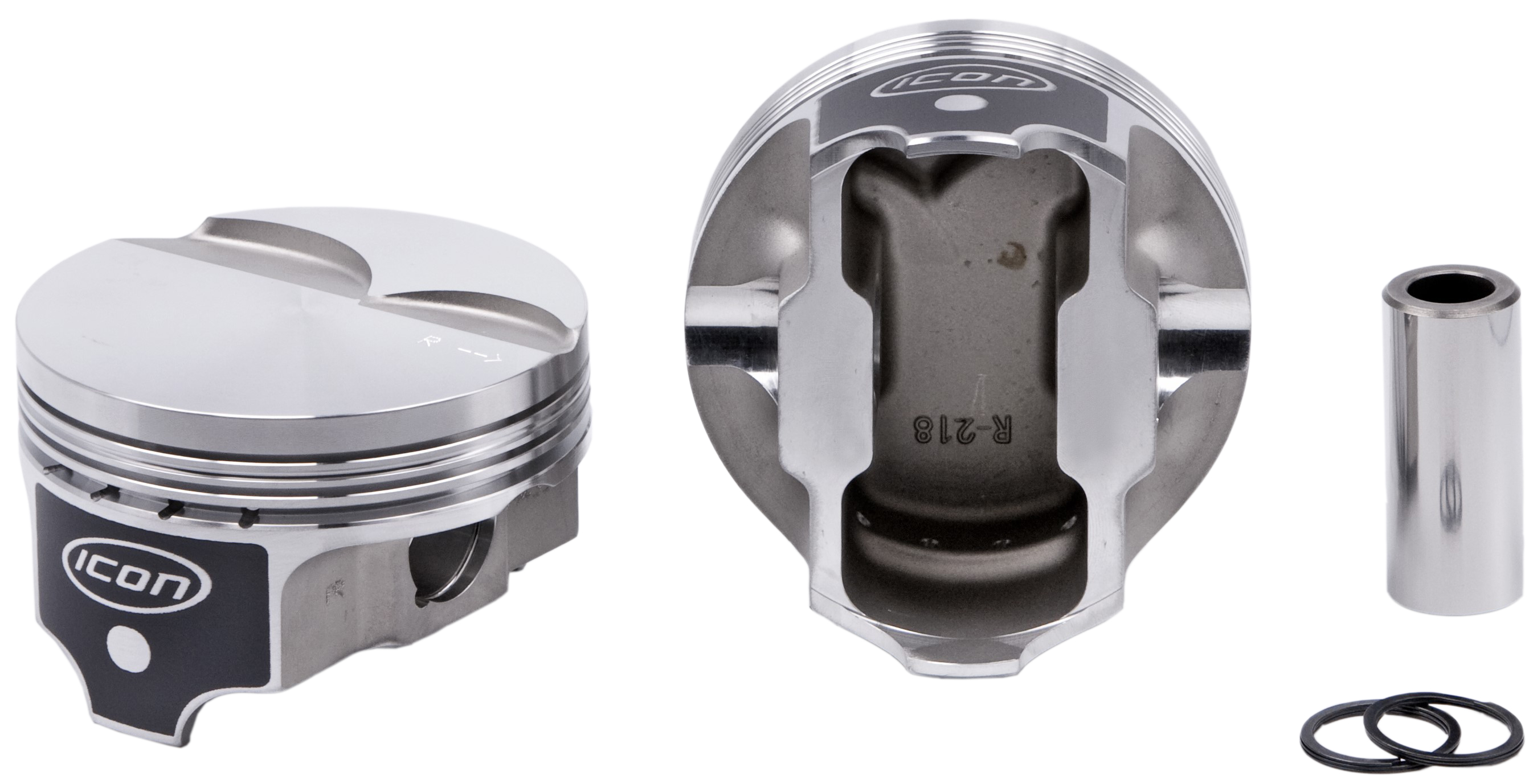

ICON Forged Coated Piston Kit - GM LS1, LS6 5.7L with 3.622 stroke with Rings

Features & benefits

.030 offset pin. Right and left bank pistons. Fits 15 degree angle heads. Stock 6.098 LS rod.

Specifications

GTIN: 00800745255976
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 4032
Base Number: IC9988C
Bore (in): 3.898
Bore (mm): 99
Crown (cc): +3.2cc
Crown Type: FLAT TOP 2V
Eng. Disp Liters: 5.7
Eng. Disp. In.: 346
Engine Family: Chevrolet SB V8 Gen III/IV (LS1/LS6 5.7L Block)
Engine Manufacturer: GM
Exhaust Valve Depth/diameter: .149/1.730
Intake Valve Depth/diameter: .196/2.326
Make For Engine Family: General Motors
Oe Deck Height: 9.240
Oversize: .010
Oversizes: STD .005 .010
Pin Configuration: Offset
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: .9450x2.250x180C-SCR415H
Pin Type: Press or Floating
Ring Pack: 1.5mm, 1.5mm, 3.0mm
Rod (in): 6.098
Rod (mm): 154.900
Sold As: KIT W/RINGS
Stroke (in): 3.622
Stroke (mm): 92.0
Top Land: .275
