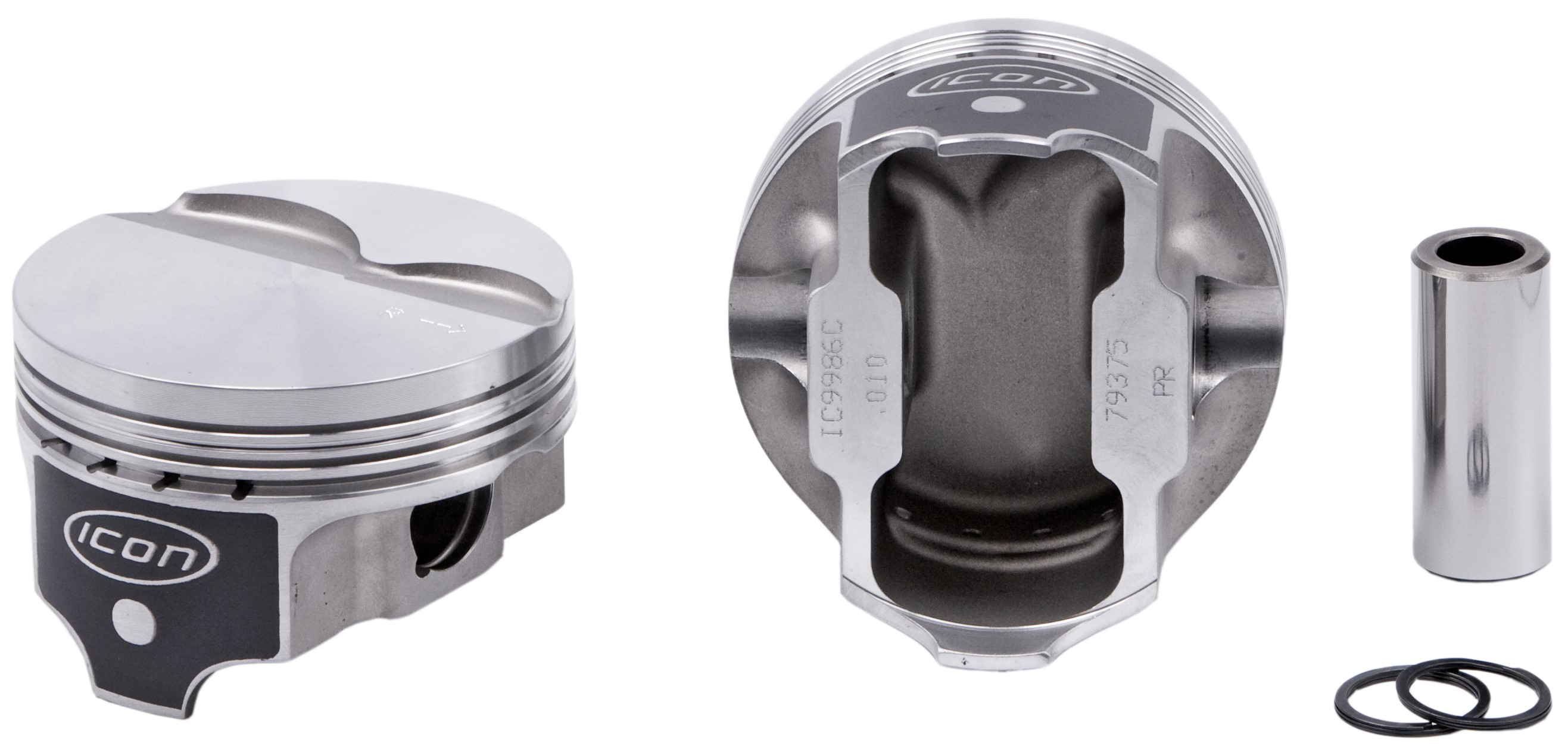

Icon Forged Pistons · IC9986CKTS.005

Part #: IC9986CKTS.005
UPC: 800745255815

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Coated Piston and Ring Kits

Log in to order

Description: ICON Forged Piston Kit - GM LS327 5.3L with 3.622 stroke with Rings

Description

ICON Forged Piston Kit - GM LS327 5.3L with 3.622 stroke with Rings

Features & benefits

.030 offset pin. Right and left bank pistons. .005 piston uses a .010 over File to Fit ring set. Fits 15 degree valve angle heads.

Specifications

GTIN: 00800745255815
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 4032
Base Number: IC9986C
Bore (in): 3.78
Bore (mm): 96
Crown (cc): +2.9cc
Crown Type: FLAT TOP 2V
Eng. Disp Liters: 5.3
Eng. Disp. In.: 327
Engine Family: Chevrolet SB V8 Gen III/IV (LS 4.8/5.3L Block)
Engine Manufacturer: GM
Exhaust Valve Depth/diameter: .149/1.750
Intake Valve Depth/diameter: .190/2.186
Make For Engine Family: General Motors
Oe Deck Height: 9.240
Oversize: .005
Oversizes: STD .005 .010 .020 .030 .040
Pin Configuration: Offset
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: .9270x2.250x.180C-SCR415H
Pin Type: Press or Floating
Ring Pack: 1.5mm, 1.5mm, 3.0mm
Rod (in): 6.125
Rod (mm): 155.600
Sold As: KIT W/RINGS
Stroke (in): 3.622
Stroke (mm): 92.0
Top Land: .275

Fitment status

This product is universal and will fit your application.
