Icon Forged Pistons · IC9958KTM.STD
Part #: IC9958KTM.STD
UPC: 800745243522
Log in for inventory
Notify me when this item is in stock.
Description: ICON FHR Piston - Chevy 427, Rod 6.135, CC Solid Dome 28.2cc 1V Kit with Rings
Description:
Description

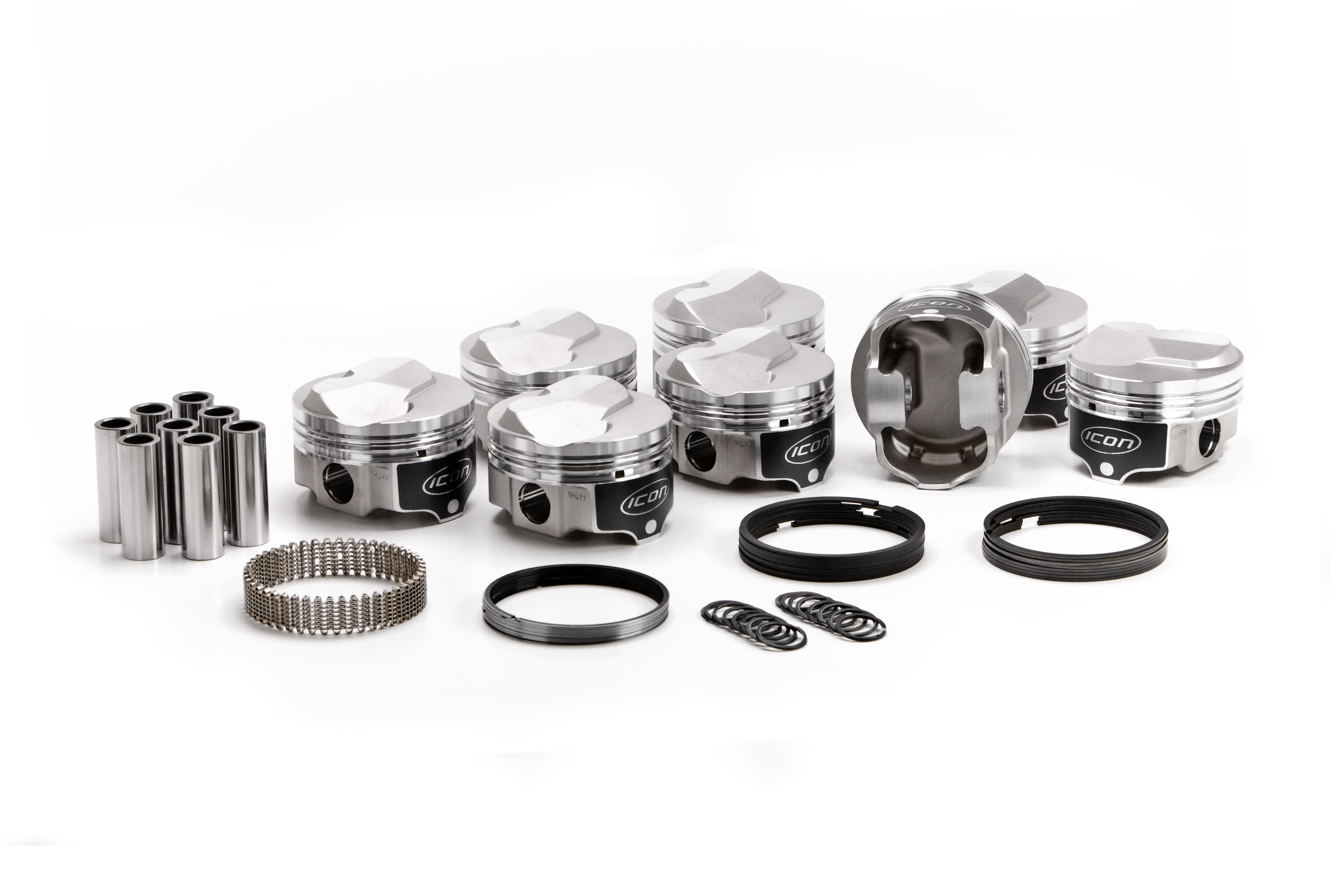

ICON FHR Piston - Chevy 427, Rod 6.135, CC Solid Dome 28.2cc 1V Kit with Rings
Features & benefits
- Centered pin. Closed chamber design. Production runs after 12/16 supplied with spiral locks. Fits Edelbrock 110cc heads.
Application summary
| Year | Make / model |
|---|---|
| 1968-1969 | Chevrolet Bel Air |
| 1968-1969 | Chevrolet Biscayne |
| 1969 | Chevrolet Brookwood |
| 1969 | Chevrolet Camaro |
| 1968-1969 | Chevrolet Caprice |
| 1968-1969 | Chevrolet Corvette |
| 1969 | Chevrolet Estate |
| 1968-1969 | Chevrolet Impala |
| 1969 | Chevrolet Kingswood |
| 1969 | Chevrolet Townsman |
| 1969-1974 | Iso Grifo |
| 1968-1969 | Pontiac Laurentian |
| 1968-1969 | Pontiac Parisienne |
| 1968-1969 | Pontiac Strato-Chief |
Specifications
- GTIN
- 00800745243522
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 4032
- Base Number
- IC9958
- Bore (in)
- 4.25
- Bore (mm)
- 108.0
- Compression Ratio
- 96.5-12.4, 105-11.3, 119-9.8
- Crown (cc)
- -28.2cc
- Crown Type
- .450" SOLID DOME
- Eng. Disp Liters
- 7.0
- Eng. Disp. In.
- 427
- Engine Family
- Chevrolet BB V8 Mark IV
- Engine Manufacturer
- Chevrolet
- Lock
- PRG110-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.8
- Oversize
- STD
- Oversizes
- STD .030 .040 .060 .070 .100
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- .990x2.750
- Pin Type
- Press or Floating
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 6.135
- Rod (mm)
- 155.829
- Sold As
- KIT W/RINGS
- Stroke (in)
- 3.76
- Stroke (mm)
- 95.5
- Top Land
- .340
- Year From
- 1963
- Year Range
- 1963-2015
- Year To
- 2015
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1968-1969 Chevrolet Bel Air; 1968-1969 Chevrolet Biscayne; 1969 Chevrolet Brookwood; 1969 Chevrolet Camaro; 1968-1969 Chevrolet Caprice; 1968-1969 Chevrolet Corvette; 1969 Chevrolet Estate; 1968-1969 Chevrolet Impala; 1969 Chevrolet Kingswood; 1969 Chevrolet Townsman; 1969-1974 Iso Grifo; 1968-1969 Pontiac Laurentian; 1968-1969 Pontiac Parisienne; 1968-1969 Pontiac Strato-Chief

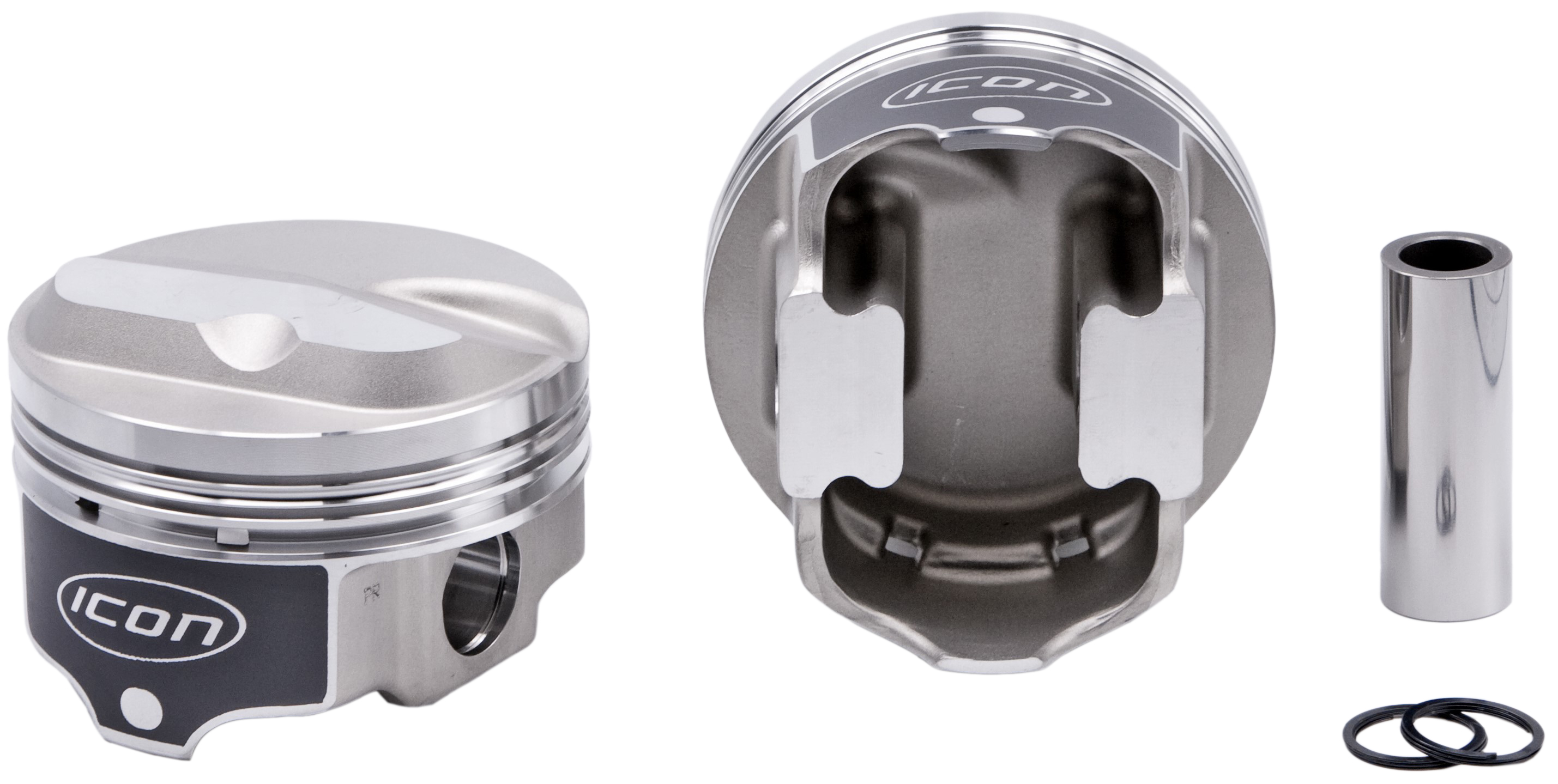

Icon Forged Pistons IC9958KTM.STD
