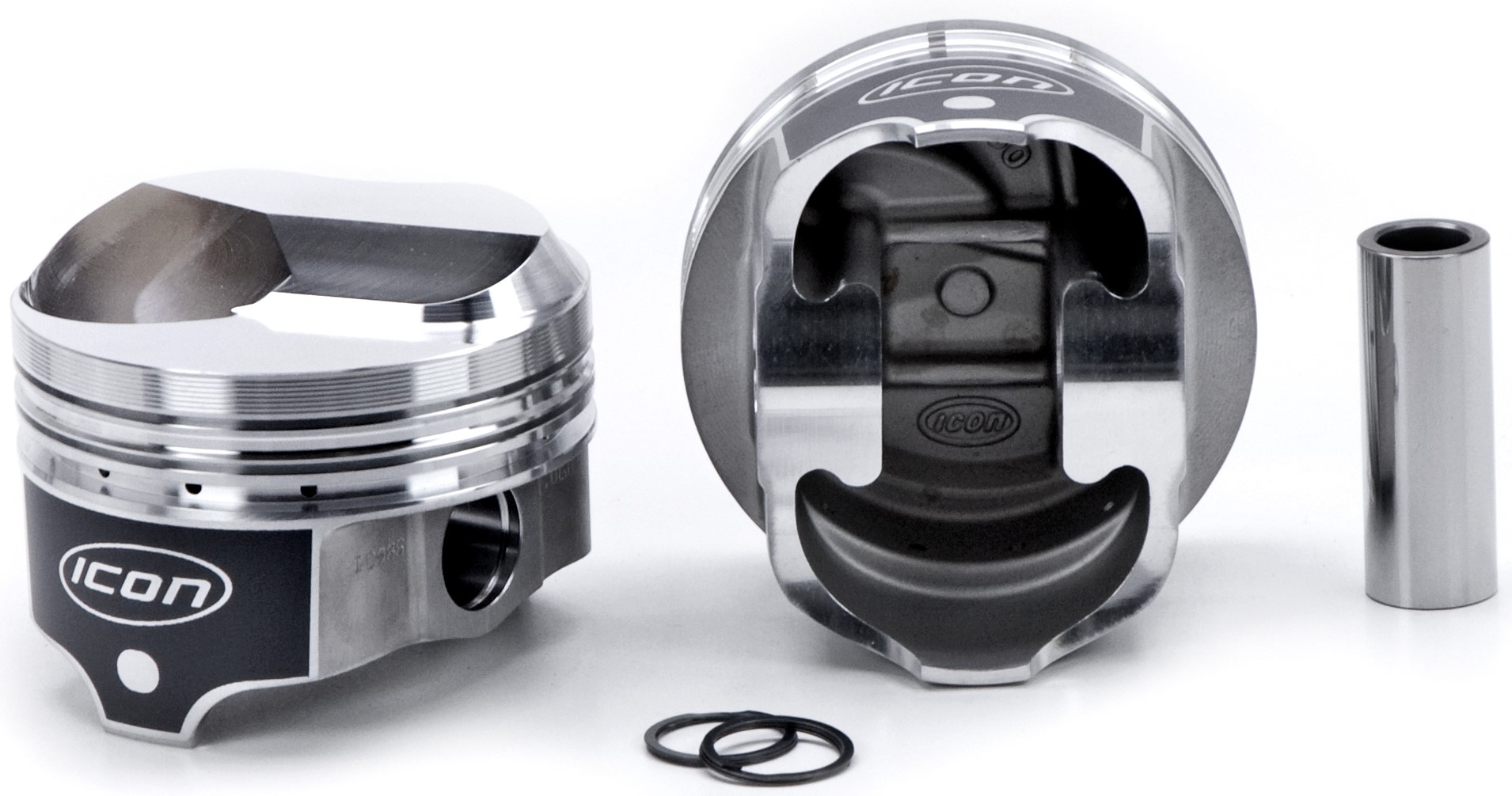

Icon Forged Pistons · IC988.040

Part #: IC988.040
UPC: 800745240200

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Hollow Dome Piston Sets

Log in to order

Description: ICON Forged Piston - Chevy 427 Rod 6.135 oc Hollow Dome .425 -38cc 1V

Description

ICON Forged Piston - Chevy 427 Rod 6.135 oc Hollow Dome .425 -38cc 1V

Features & benefits

Hollow dome. Centered pin. Will fit AFR, RHS, Trick Flow, World, Edelbrock, Brodix, Dart and OE Chevy open chamber heads that are 118cc's or larger. Always check piston to chamber and valves to assure you have adequate operating clearance.

Specifications

GTIN: 00800745240200
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC988
Bore (in): 4.25
Bore (mm): 108.0
Compression Ratio: 119-10.8
Crown (cc): -38cc
Crown Type: .425" HOLLOW DOME 1V
Eng. Disp Liters: 7.0
Eng. Disp. In.: 427
Engine Family: Chevrolet BB V8 Mark IV
Engine Manufacturer: Chevrolet
Intake Valve Depth/diameter: .275/2.420
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 9.8
Oversize: .040
Oversizes: STD .030 .040 .060 .070 .100 .125
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: .990x2.750
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.135
Rod (mm): 155.829

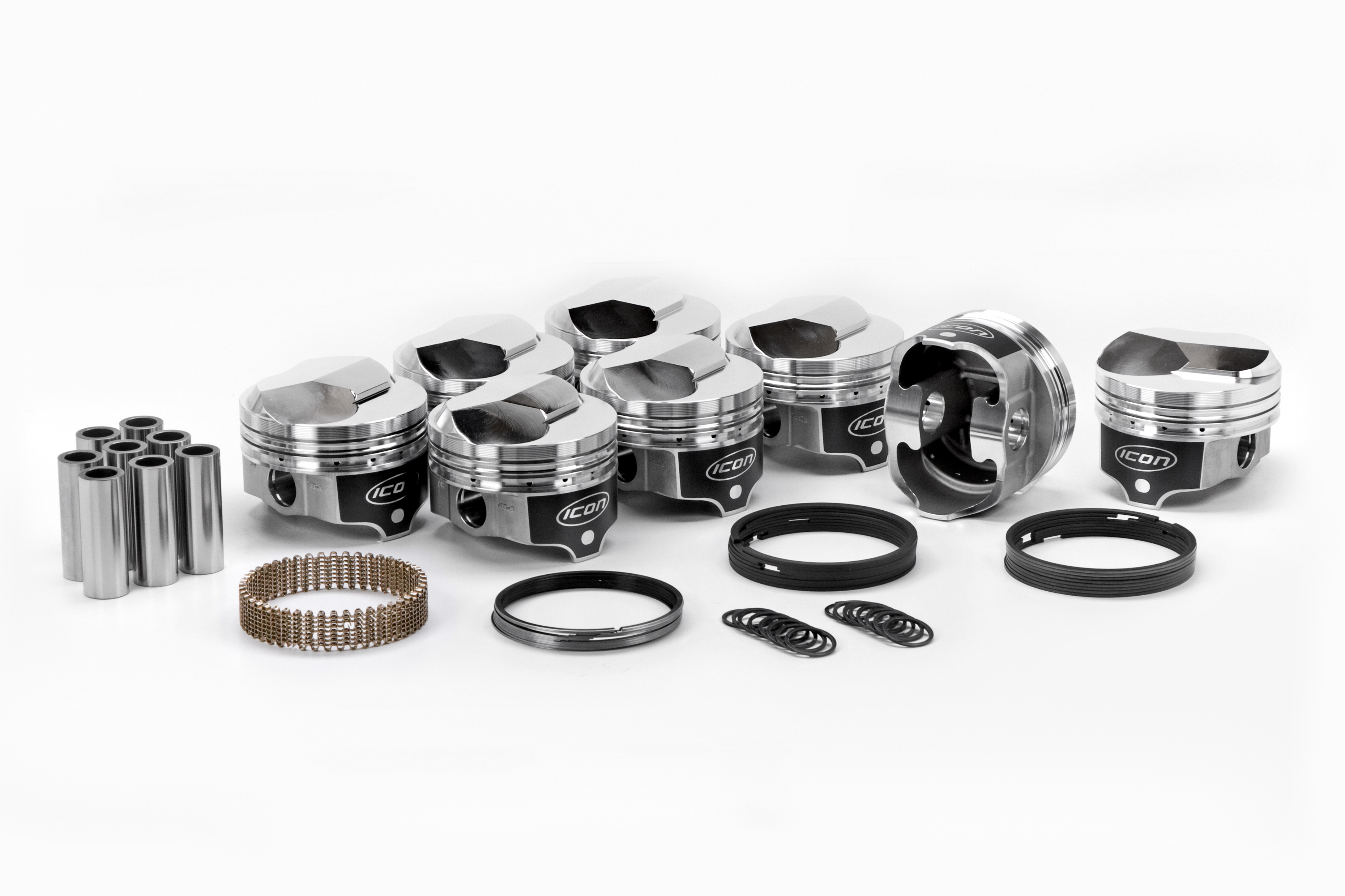

Sold As: PISTON SET
Stroke (in): 3.76
Stroke (mm): 95.5
Top Land: .360
Year From: 1963
Year Range: 1963-2015
Year To: 2015

Fitment status

This product is universal and will fit your application.

Resources

Retail View

Warehouse	In Stock
