Icon Forged Pistons · IC971KTD.045

Part #: IC971KTD.045
UPC: 800745202901

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Flat Top Piston and Ring Kits

Log in to order

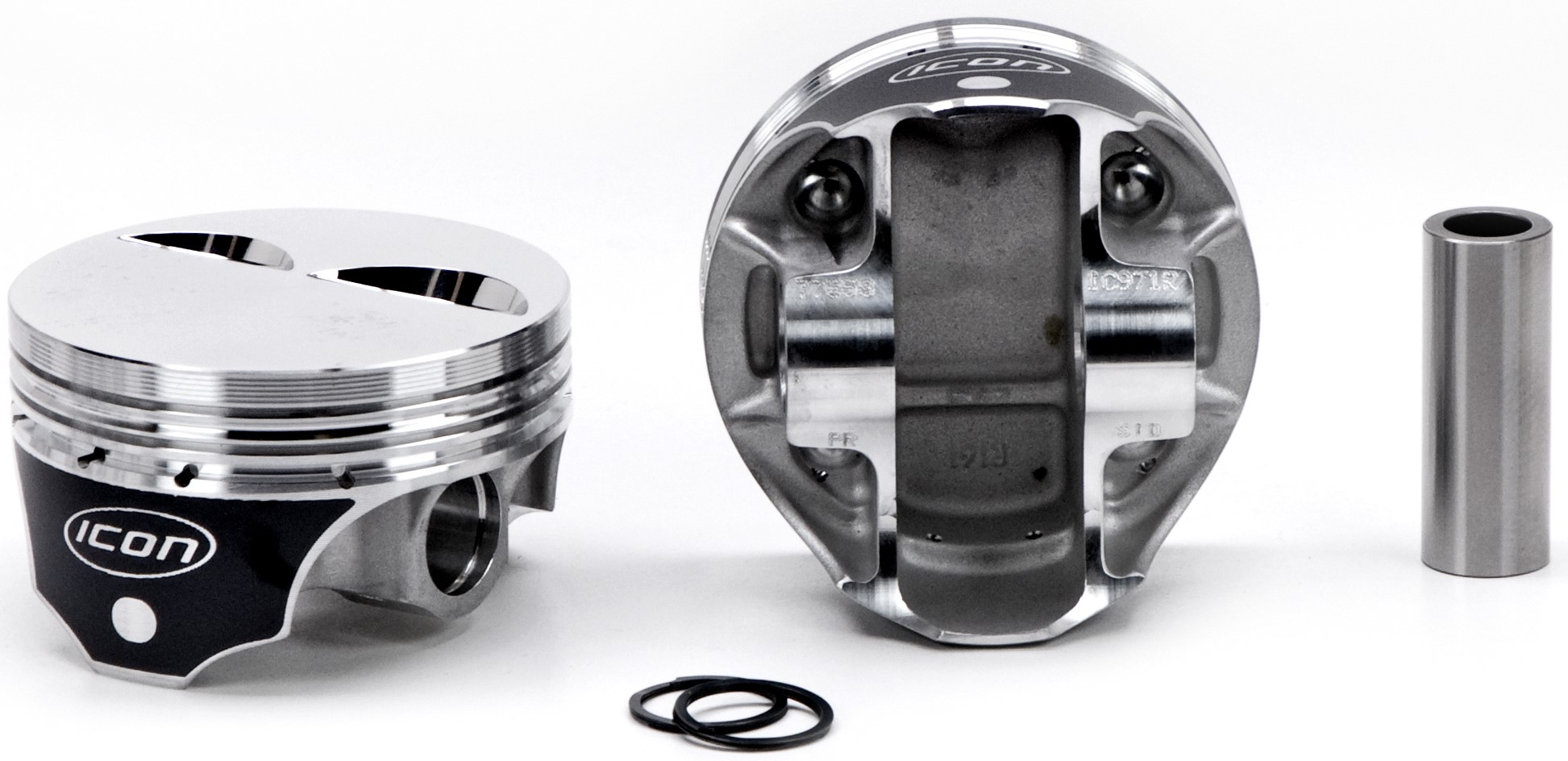

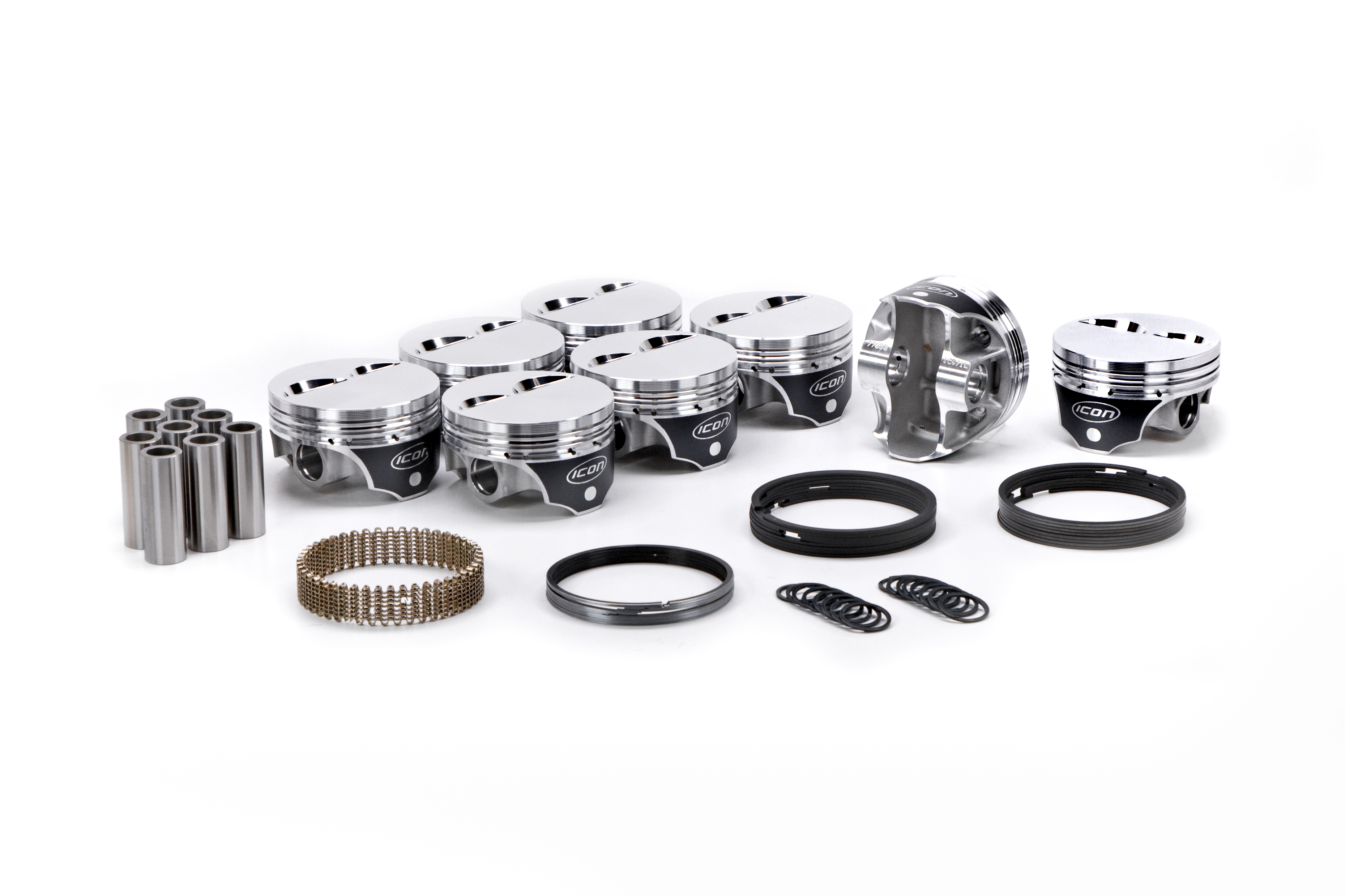

Description: ICON Forged Piston- Chevy 350, Rod 5.700, Flat Top +2.1cc 2V Kit with Rings

Description

ICON Forged Piston- Chevy 350, Rod 5.700, Flat Top +2.1cc 2V Kit with Rings

Features & benefits

Centered pin. Shallow valve reliefs. Deep valve reliefs for Flat Milled heads with 23 degree valve angles. Comes with Spirolox style lockrings. Check clearance.

Specifications

GTIN: 00800745202901
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC971
Bore (in): 4
Bore (mm): 101.6
Compression Ratio: 58-11.6, 64-10.7, 76-9.4
Crown (cc): +2.1cc
Crown Type: FLAT TOP 2V
Eng. Disp Liters: 5.7
Eng. Disp. In.: 350
Engine Family: Chevrolet SB V8 Gen I
Engine Manufacturer: Chevrolet
Exhaust Valve Depth/diameter: .157/1.880
Intake Valve Depth/diameter: .209/2.080
Lock: PRJ100-3
Make For Engine Family: General Motors
Oe Deck Height: 9.025
Oversize: .045
Oversizes: STD .030 .040 .045 .060
Pin Configuration: Centered
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: .927x2.500
Pin Type: Press or Floating
Ring Pack: 1.5mm, 1.5mm, 3.0mm
Rod (in): 5.7
Rod (mm): 144.78
Sold As: KIT W/RINGS
Stroke (in): 3.48
Stroke (mm): 88.4
Top Land: .277
Year From: 1958
Year Range: 1958-2007
Year To: 2007

Fitment status

This product is universal and will fit your application.
