Icon Forged Pistons · IC970KTD.040

Part #: IC970KTD.040
UPC: 800745203175

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Solid Dome Piston and Ring Kits

Log in to order

Description: ICON Forged Piston- Chevy 383, Rod 6.000, Sld Dome -11.1cc 2V Kit with Rings

Description

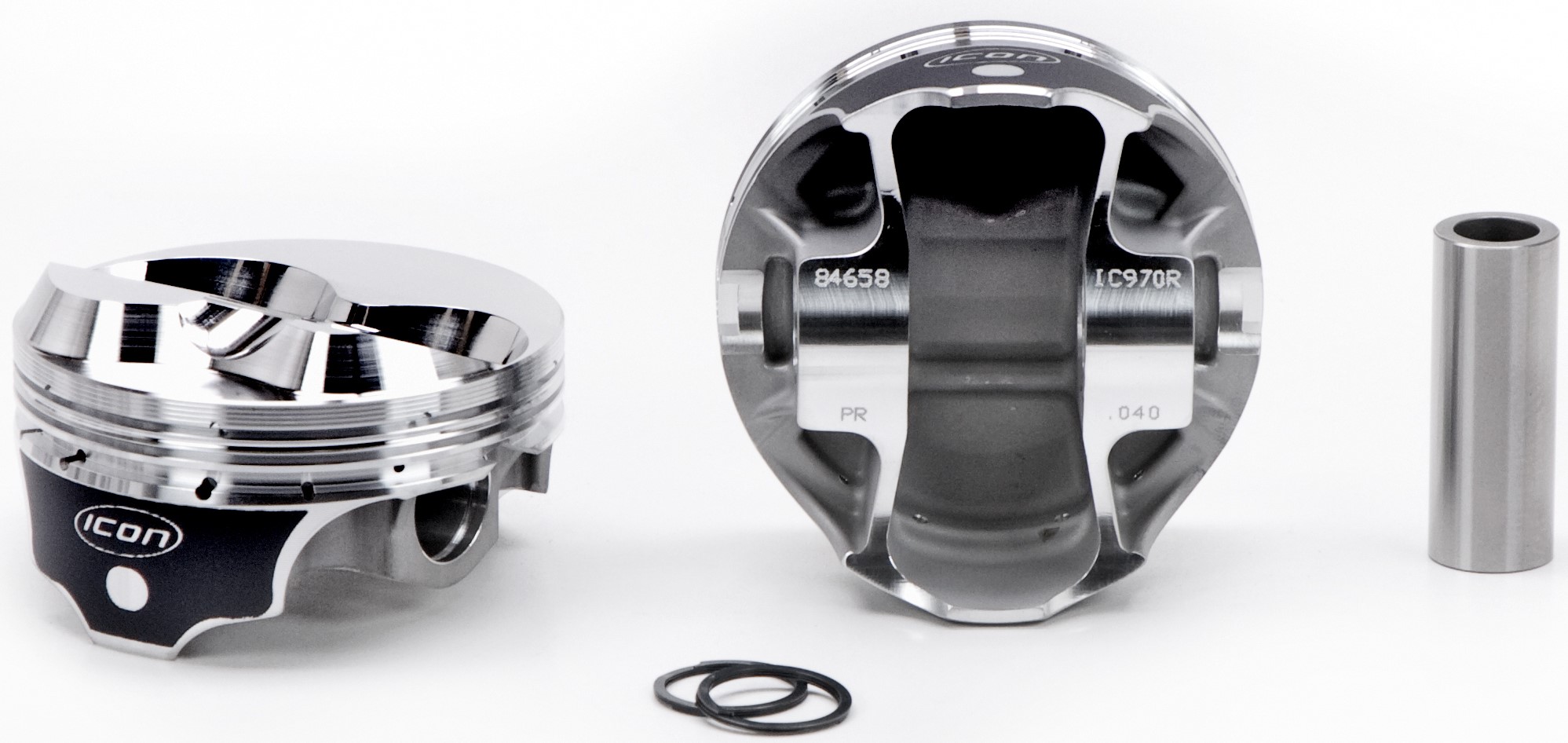

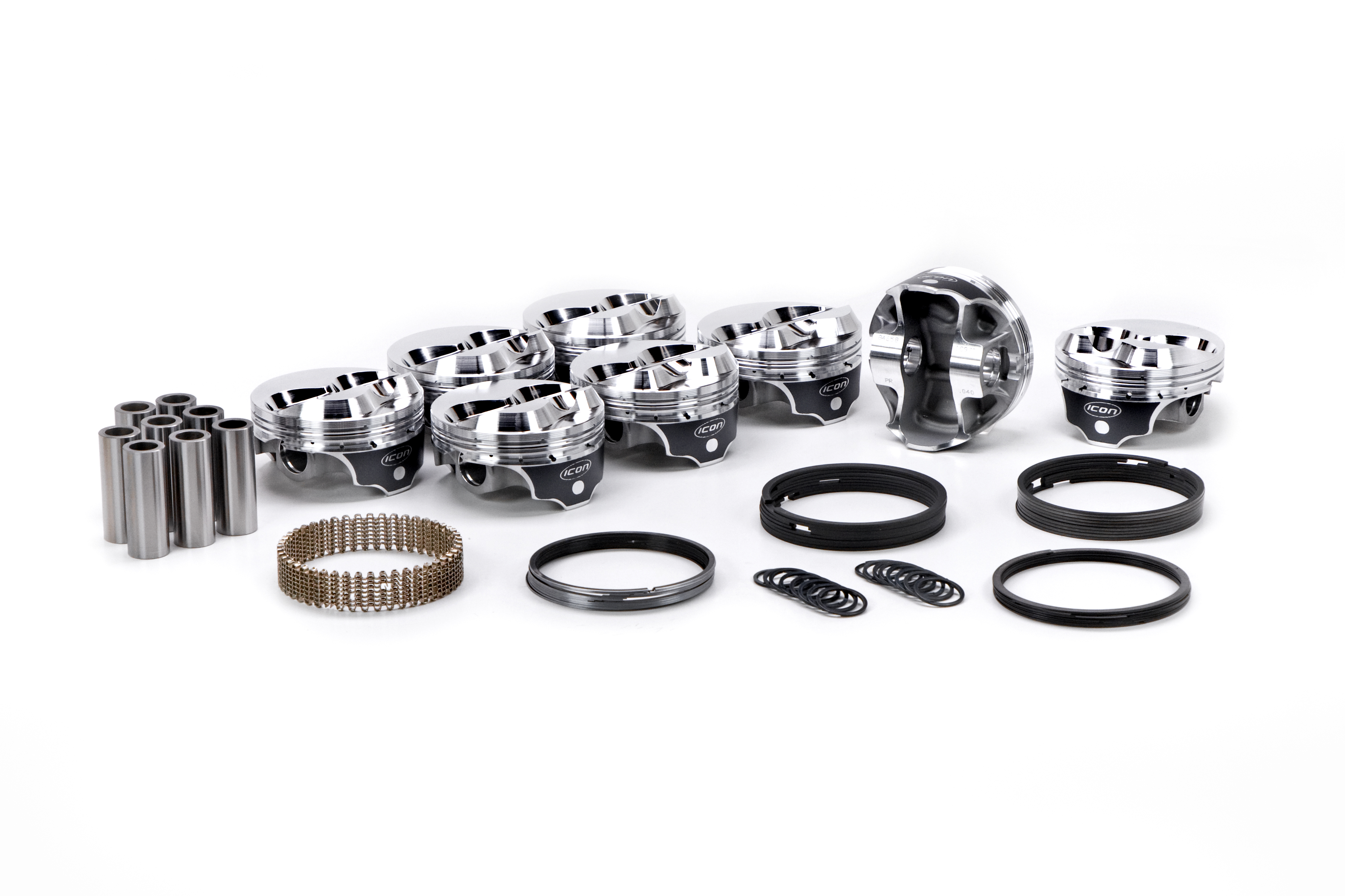

ICON Forged Piston- Chevy 383, Rod 6.000, Sld Dome -11.1cc 2V Kit with Rings

Features & benefits

Centered pin. Lateral gas ports. Comes with Spirol lock style lockrings. Fits aftermarket 64cc cylinder heads. Always check dome and valve reliefs for correct clearance. Made from 350 Chevy.

Specifications

GTIN: 00800745203175
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC970
Bore (in): 4
Bore (mm): 101.6
Compression Ratio: 64-13.8
Crown (cc): -11cc
Crown Type: .400" SOLID DOME -11cc 2V
Eng. Disp Liters: 6.3
Eng. Disp. In.: 383
Engine Family: Chevrolet SB V8 Gen I
Engine Manufacturer: Chevrolet
Exhaust Valve Depth/diameter: .300/1.880
Intake Valve Depth/diameter: .300/2.200
Lock: PRJ100-3
Make For Engine Family: General Motors
Oe Deck Height: 9.025
Oversize: .040
Oversizes: STD .030 .040 .060
Pin Configuration: Centered
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: .927x2.500
Pin Type: Press or Floating
Ring Pack: 1.5mm, 1.5mm, 3.0mm
Rod (in): 6
Rod (mm): 152.4
Sold As: KIT W/RINGS
Stroke (in): 3.75
Stroke (mm): 95.3
Top Land: .221
Year Range: -

Fitment status

This product is universal and will fit your application.
