Icon Forged Pistons · IC959KTD.078

Part #: IC959KTD.078
UPC: 800745245847

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Wedge Piston and Ring Kits

Log in to order

Description: ICON Forged Piston-Chevy 409 Rod 6.010 Wedge 91.34cc V2 Kit with Rings

Description

ICON Forged Piston-Chevy 409 Rod 6.010 Wedge 91.34cc V2 Kit with Rings

Features & benefits

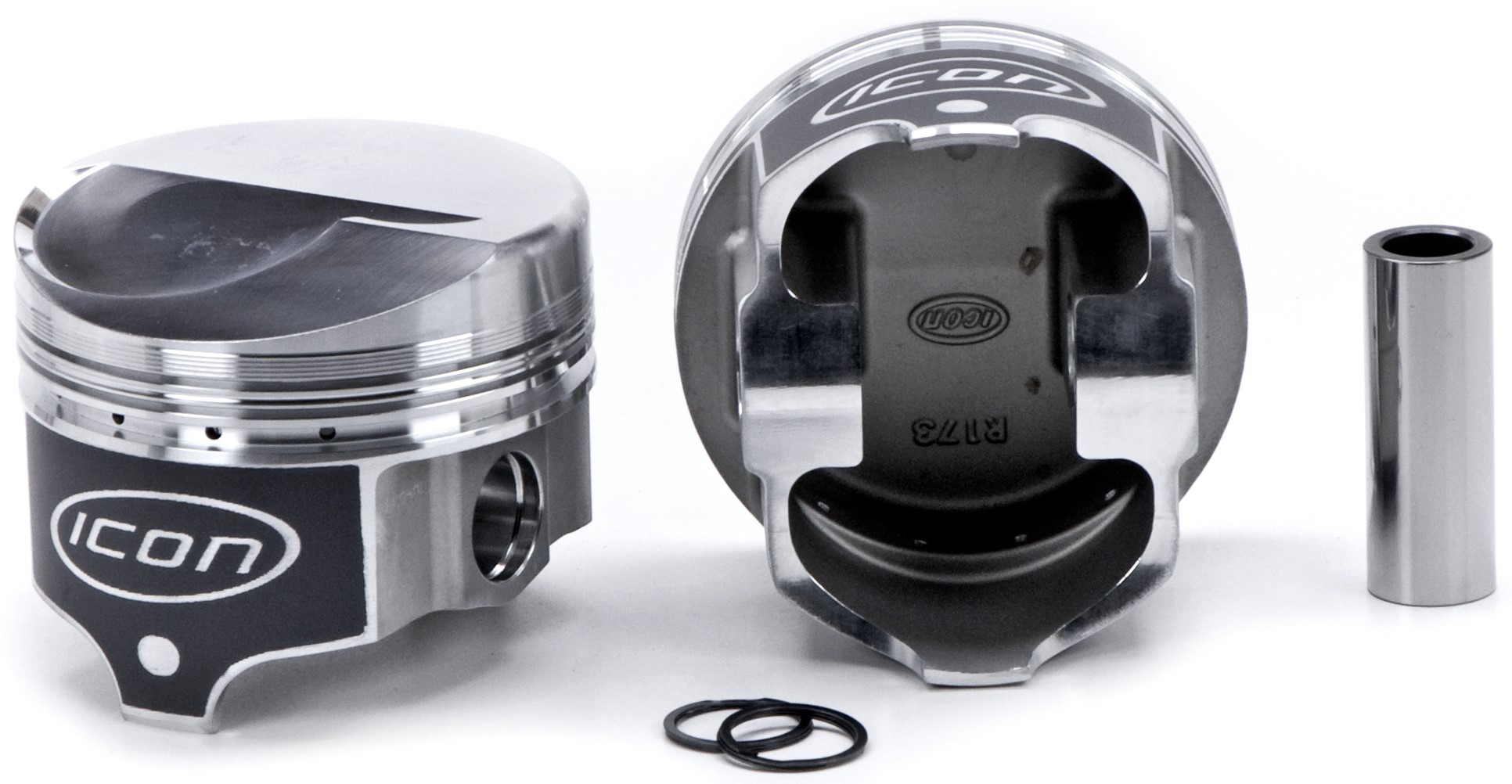

Centered pin. CH is to dome peak. Uses BB 440 Chrysler ring set. Oversizes based on a stock Chrysler 440 4.320 bore size.

Specifications

GTIN: 00800745245847
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC959
Bore (in): 4.3125
Bore (mm): 109.5
Compression Ratio: 10.0
Crown (cc): -89.1cc
Crown Type: DOME 2V
Eng. Disp Liters: 6.7
Eng. Disp. In.: 409
Engine Family: Chevrolet BB V8 W-Head
Engine Manufacturer: Chevrolet
Exhaust Valve Depth/diameter: .135/2.062
Intake Valve Depth/diameter: .135/2.320
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 9.6
Oversize: .078
Oversizes: .038 .048 .068 .078
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: .990x2.750
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.01
Rod (mm): 152.654
Sold As: KIT W/RINGS
Stroke (in): 3.5
Stroke (mm): 88.9
Top Land: .198
Year From: 1961
Year Range: 1961-1965
Year To: 1965

Fitment status

This product is universal and will fit your application.
