Icon Forged Pistons · IC888KTD.030

Part #: IC888KTD.030
UPC: 800745180667

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Flat Top Piston and Ring Kits

Log in to order

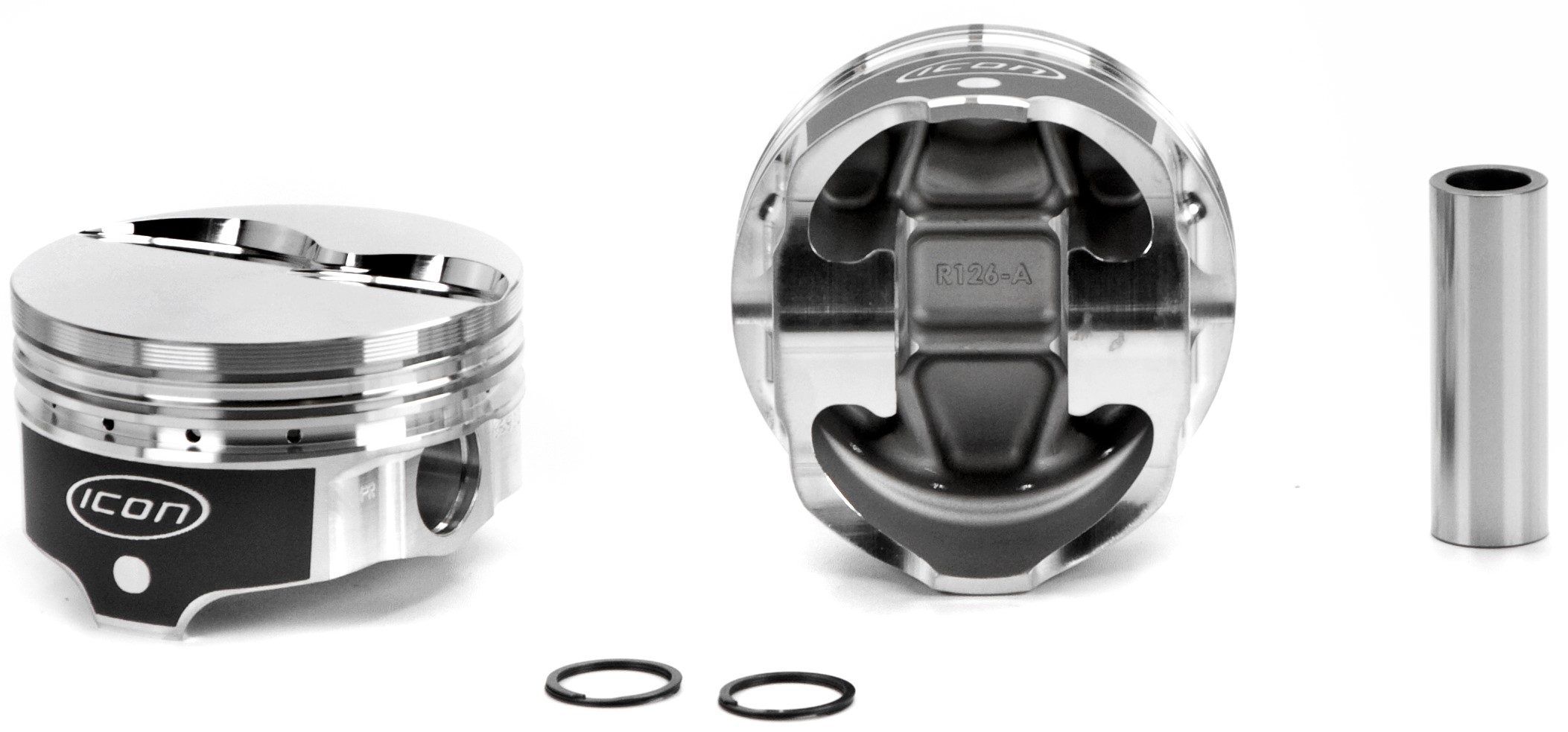

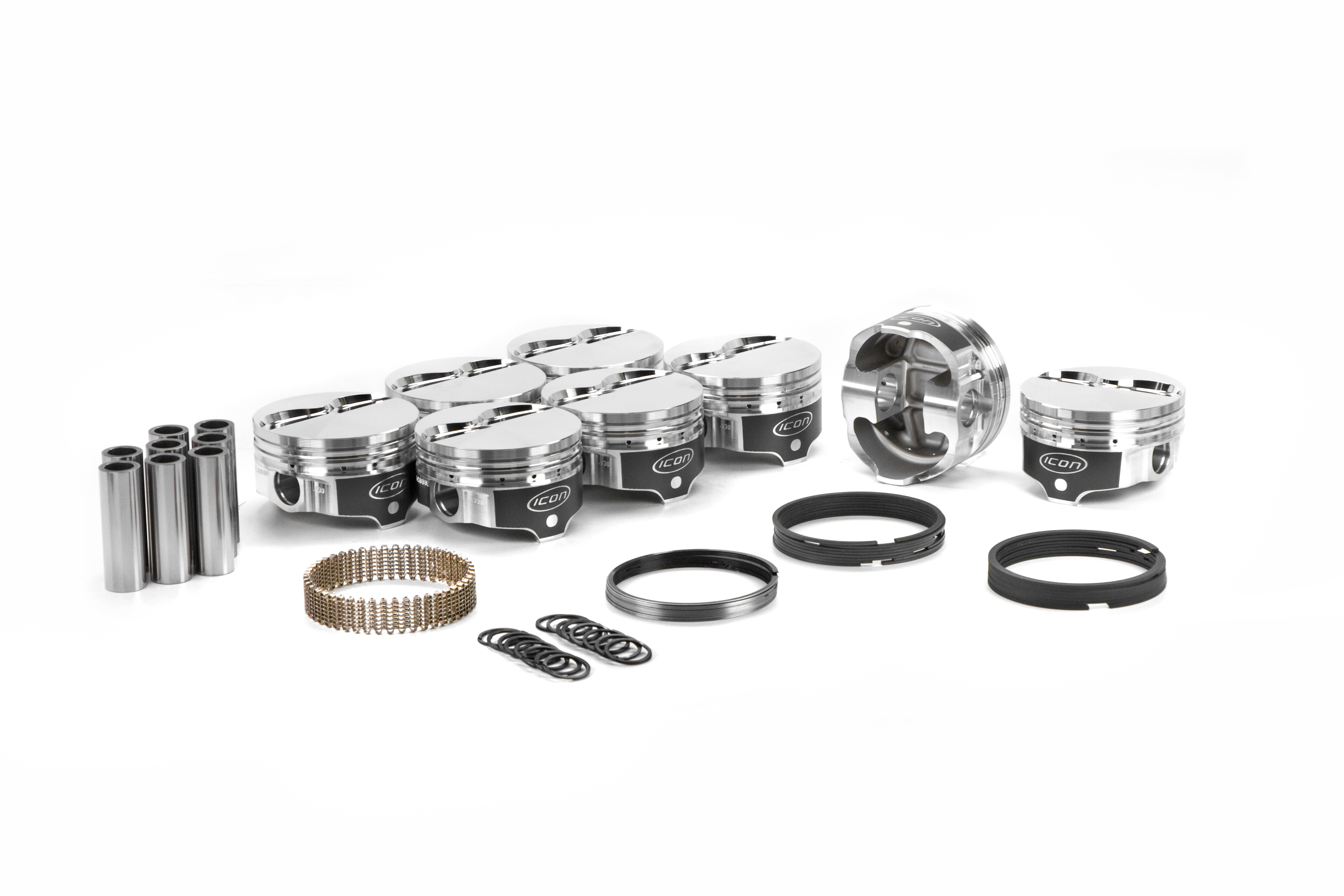

Description: ICON Forged Piston - Pont 455 Rod 6.630 Flat Top +5.5cc 2V Kit with Rings

Description

ICON Forged Piston - Pont 455 Rod 6.630 Flat Top +5.5cc 2V Kit with Rings

Features & benefits

Centered pin. Use OE and Edelbrock style heads. Some stock rods may need to be narrowed and balance pad removed.

Specifications

GTIN: 00800745180667
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC888
Bore (in): 4.15
Bore (mm): 105.4
Compression Ratio: 71-12.1, 87-10.3, 96-9.6
Crown (cc): +5.5cc
Crown Type: FLAT TOP 2V
Eng. Disp Liters: 7.5
Eng. Disp. In.: 455
Engine Family: Pontiac V8
Engine Manufacturer: Pontiac
Exhaust Valve Depth/diameter: .220/1.960
Intake Valve Depth/diameter: .221/2.310
Lock: PRH107-3
Make For Engine Family: General Motors
Oe Deck Height: 10.25
Oversize: .030
Oversizes: STD .030 .040 .060
Pin Configuration: Centered
Pin Diameter (in): .980
Pin Diameter (mm): 24.9
Pin Number: .980x3.000
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.63
Rod (mm): 168.402
Sold As: KIT W/RINGS
Stroke (in): 4.21
Stroke (mm): 106.9
Top Land: .260
Year From: 1970
Year Range: 1970-1976
Year To: 1976

Fitment status

This product is universal and will fit your application.
