Icon Forged Pistons · IC872KTD.017
Part #: IC872KTD.017
UPC: 800745179760
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston - Ford 482FE Rod 6.700 Flat Top +7.5cc 2V Kit with Rings
Description:
Description

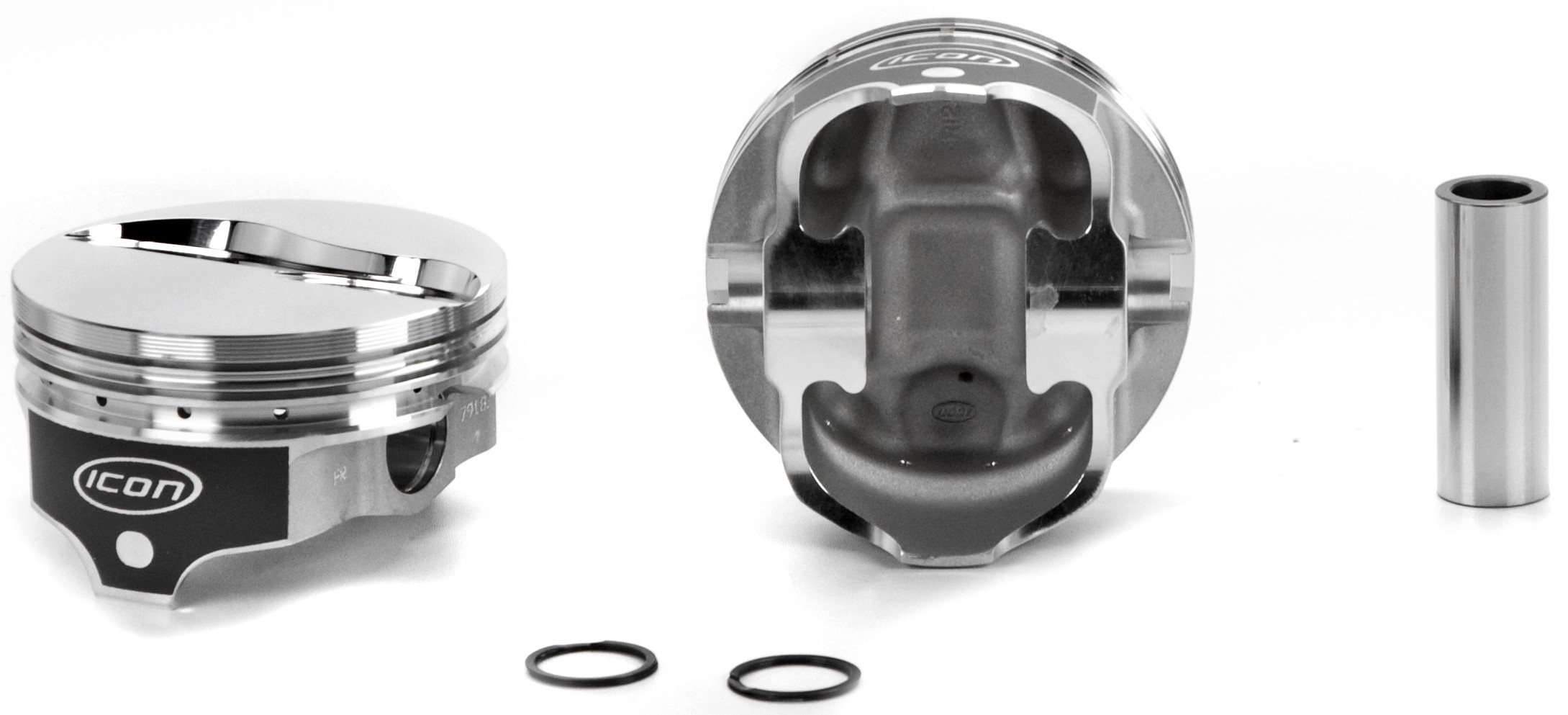

ICON Forged Piston - Ford 482FE Rod 6.700 Flat Top +7.5cc 2V Kit with Rings
Features & benefits
- Centered pin. For use with Ford/Edelbrock and Shelby type heads. Connecting rod small end width -1.250 max. Uses BBC wrist pin diameter. Ring sizes: .017(4250BD8-STD) .037(4250BD8.020) / .047 (4250BD8.030).
Specifications
- GTIN
- 00800745179760
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC872
- Bore (in)
- 4.233
- Bore (mm)
- 107.5
- Compression Ratio
- 72-12.2, 75-11.8, 88-10.5
- Crown (cc)
- +7.5cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 7.9
- Eng. Disp. In.
- 482
- Engine Family
- Ford BB V8 FE
- Engine Manufacturer
- Ford
- Exhaust Valve Depth/diameter
- .239/1.930
- Intake Valve Depth/diameter
- .261/2.450
- Lock
- PRG110-3
- Make For Engine Family
- Ford
- Oe Deck Height
- 10.17
- Oversize
- .017
- Oversizes
- .017 .037 .047
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- .990x2.750
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6.7
- Rod (mm)
- 170.18
- Sold As
- KIT W/RINGS
- Stroke (in)
- 4.25
- Stroke (mm)
- 108.0
- Top Land
- .250
- Year Range
- -
Fitment status
This product is universal and will fit your application.

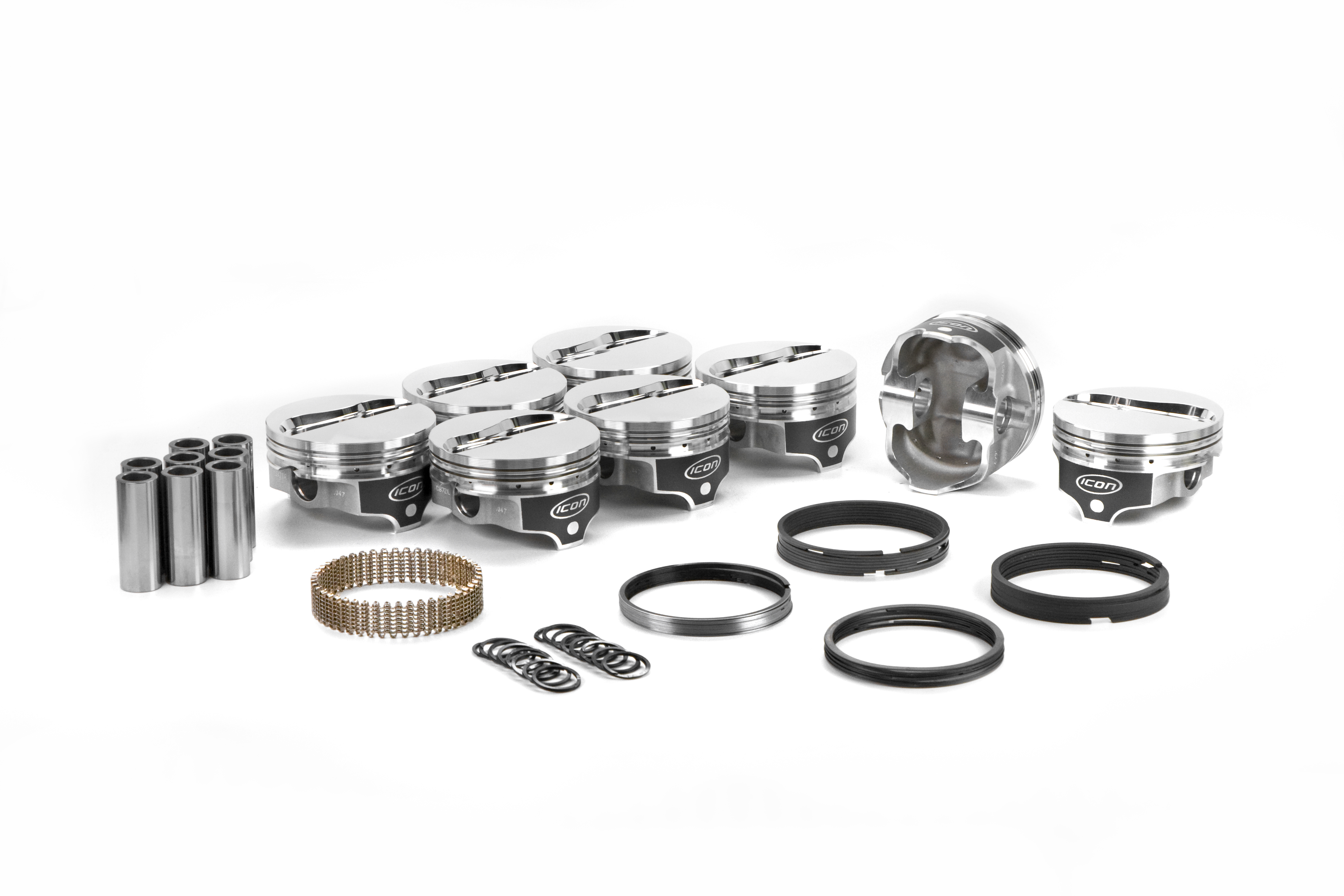

Icon Forged Pistons IC872KTD.017
