Icon Forged Pistons · IC859KTD.140

Part #: IC859KTD.140
UPC: 800745179340

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Piston and Ring Kits

Log in to order

Description: ICON Piston - Ford 520ci/8.5L (V8) Kit with Rings

Description

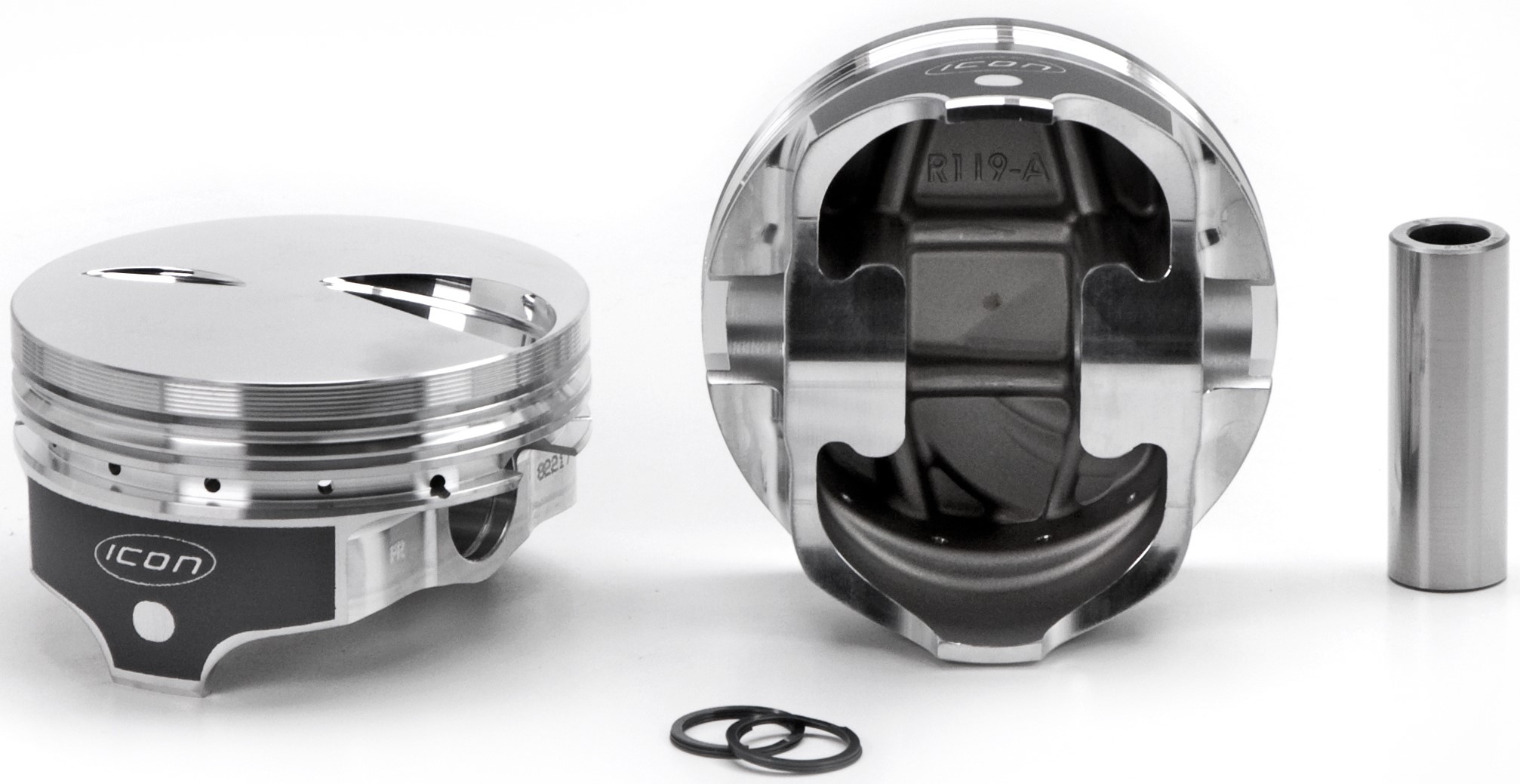

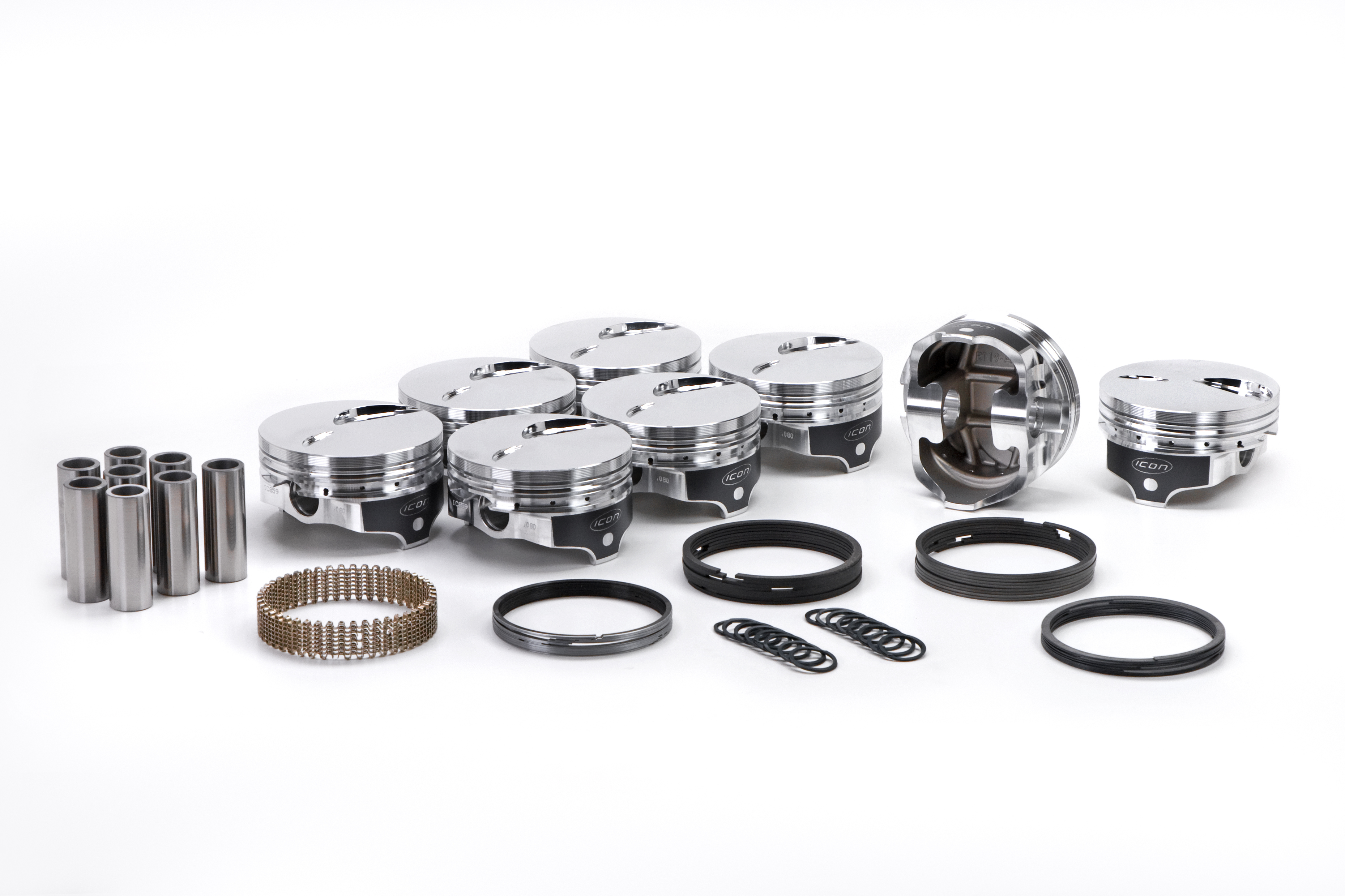

ICON Piston - Ford 520ci/8.5L (V8) Kit with Rings

Features & benefits

Centered pin. Use 460 block for use with Ford/Edelbrock type heads. Connecting rod small end width- 1.250 max. Uses (BBC) .9898 diameter wrist pin. Ring set for the .140 oversize is (4466BD8.034).

Specifications

GTIN: 00800745179340
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC859
Bore (in): 4.36
Bore (mm): 110.7
Compression Ratio: 72-13.5, 75-13.1, 88-11.5
Crown (cc): +3.4cc
Crown Type: FLAT TOP 2V
Eng. Disp Liters: 8.5
Eng. Disp. In.: 520
Engine Family: Ford BB V8 429/460
Engine Manufacturer: Ford
Exhaust Valve Depth/diameter: .078/1.940
Intake Valve Depth/diameter: .245/2.450
Lock: PRG110-3
Make For Engine Family: Ford
Oe Deck Height: 10.32
Oversize: .140
Oversizes: .030 .040 .060 .080 .090 .140
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: .990x2.750
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.8
Rod (mm): 172.72
Sold As: KIT W/RINGS
Stroke (in): 4.3
Stroke (mm): 109.2
Top Land: .300
Year Range: -

Fitment status

This product is universal and will fit your application.
