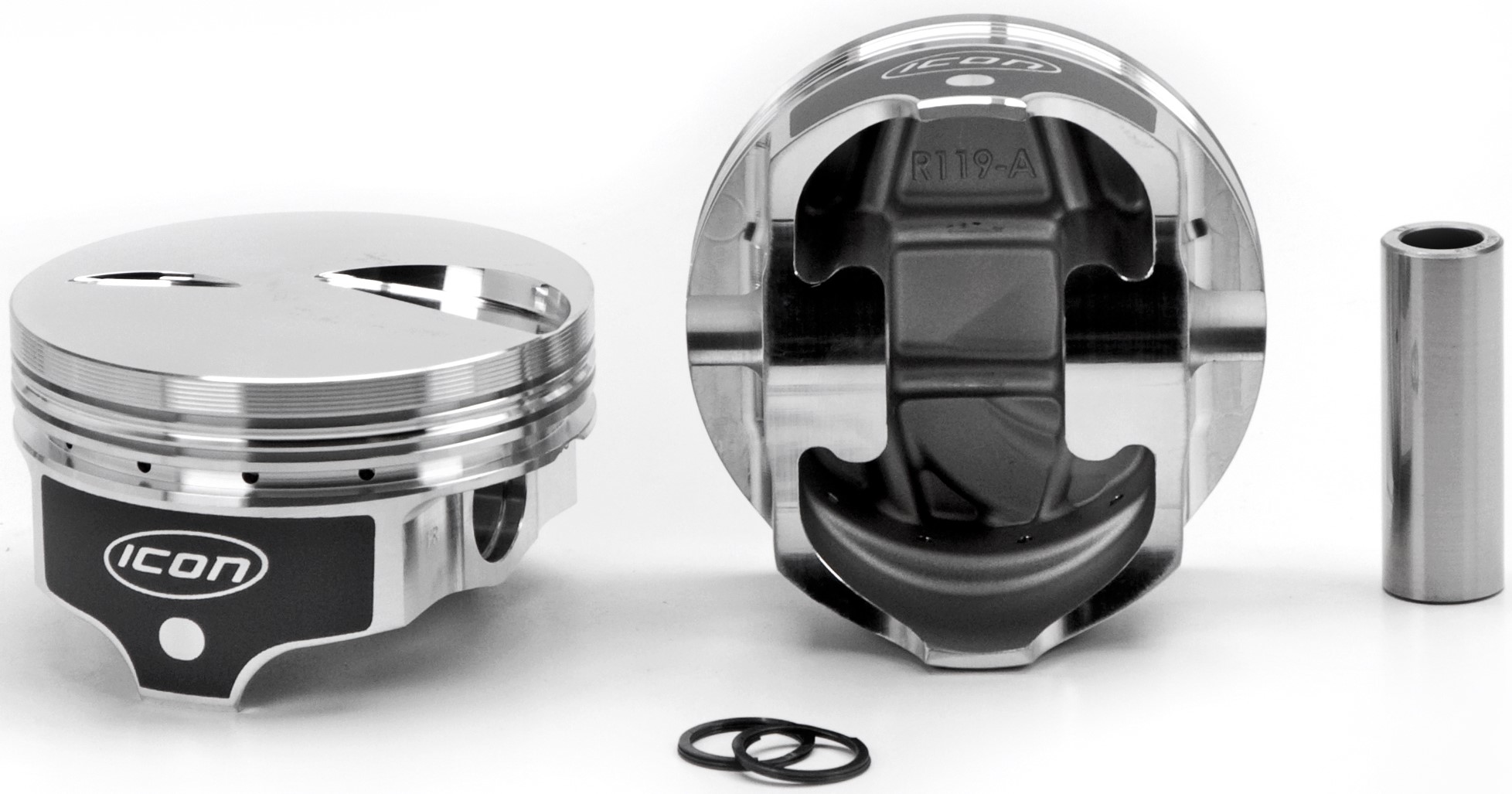

Icon Forged Pistons · IC858.030
Part #: IC858.030
UPC: 800745133755
Loading...
Notify me when this item is in stock.
Description: ICON Forged Piston - Ford 502 Rod 6.800 Flat Top +3.4cc 2V
Description:
Description
ICON Forged Piston - Ford 502 Rod 6.800 Flat Top +3.4cc 2V
Features & benefits
- Centered pin. For use with Ford/Edelbrock type heads. Connecting rod small end width - 1.250 max. Uses (BBC) .9898 diameter wrist pin. Ring set for the.140 oversize is (4466BD8.034).
Specifications
- GTIN
- 00800745133755
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC858
- Bore (in)
- 4.36
- Bore (mm)
- 110.7
- Compression Ratio
- 72-13.1, 75-12.7, 88-11.2
- Crown (cc)
- +3.4cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 8.2
- Eng. Disp. In.
- 502
- Engine Family
- Ford BB V8 429/460
- Engine Manufacturer
- Ford
- Exhaust Valve Depth/diameter
- .078/1.940
- Intake Valve Depth/diameter
- .245/2.450
- Lock
- PRG110-3
- Make For Engine Family
- Ford
- Oe Deck Height
- 10.32
- Oversize
- .030
- Oversizes
- .030 .040 .060 .080 .140
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- .990x2.750
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6.8
- Rod (mm)
- 172.72
- Sold As
- PISTON SET
- Stroke (in)
- 4.15
- Stroke (mm)
- 105.4
- Top Land
- .300
- Year Range
- -
Fitment status
This product is universal and will fit your application.
