Icon Forged Pistons · IC854KTD.060
Part #: IC854KTD.060
UPC: 800745179074
Log in for inventory
Notify me when this item is in stock.
Description: ICON Piston - Ford 545ci/8.9L (V8) Kit with Rings
Description:
Description

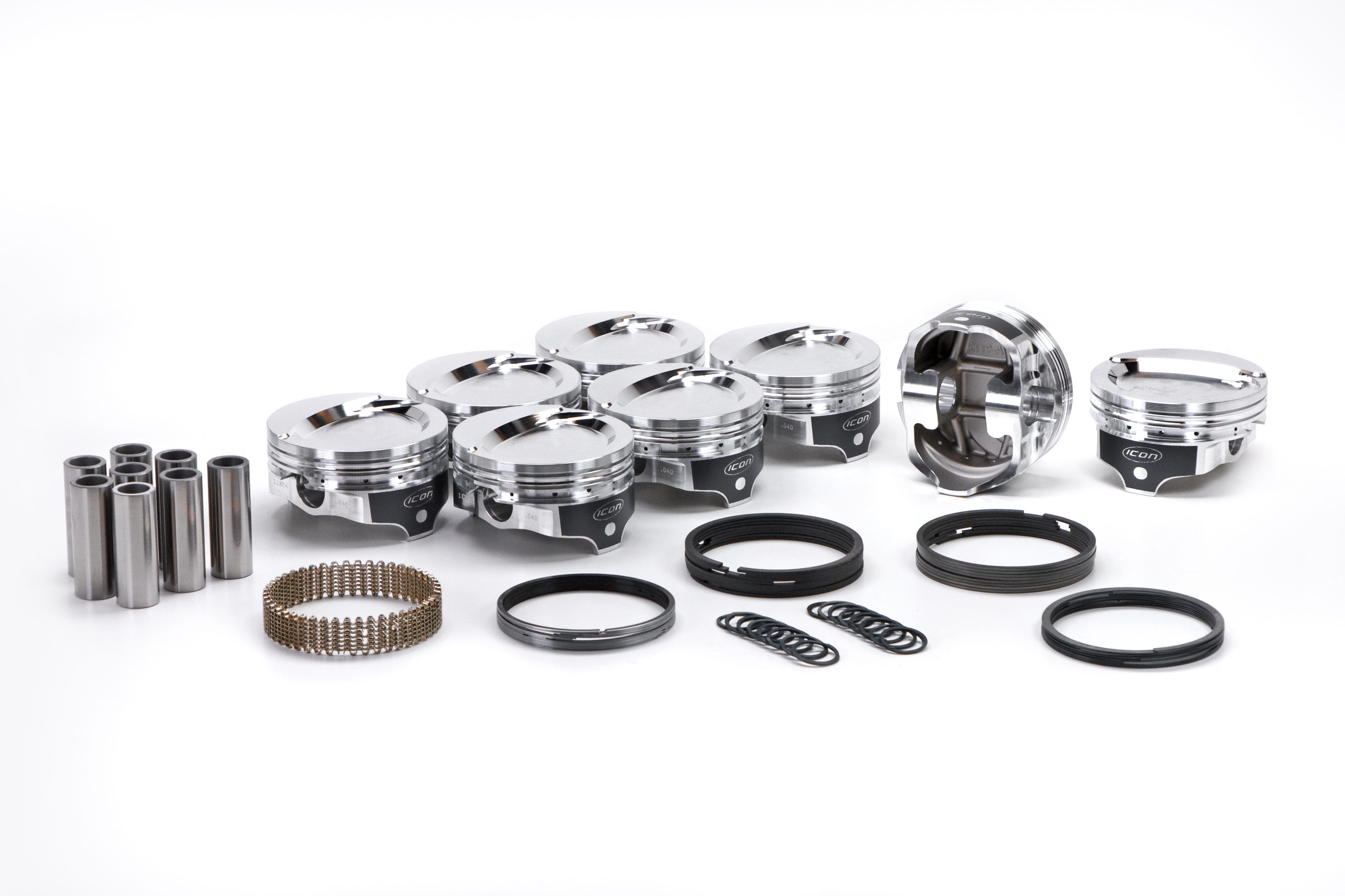

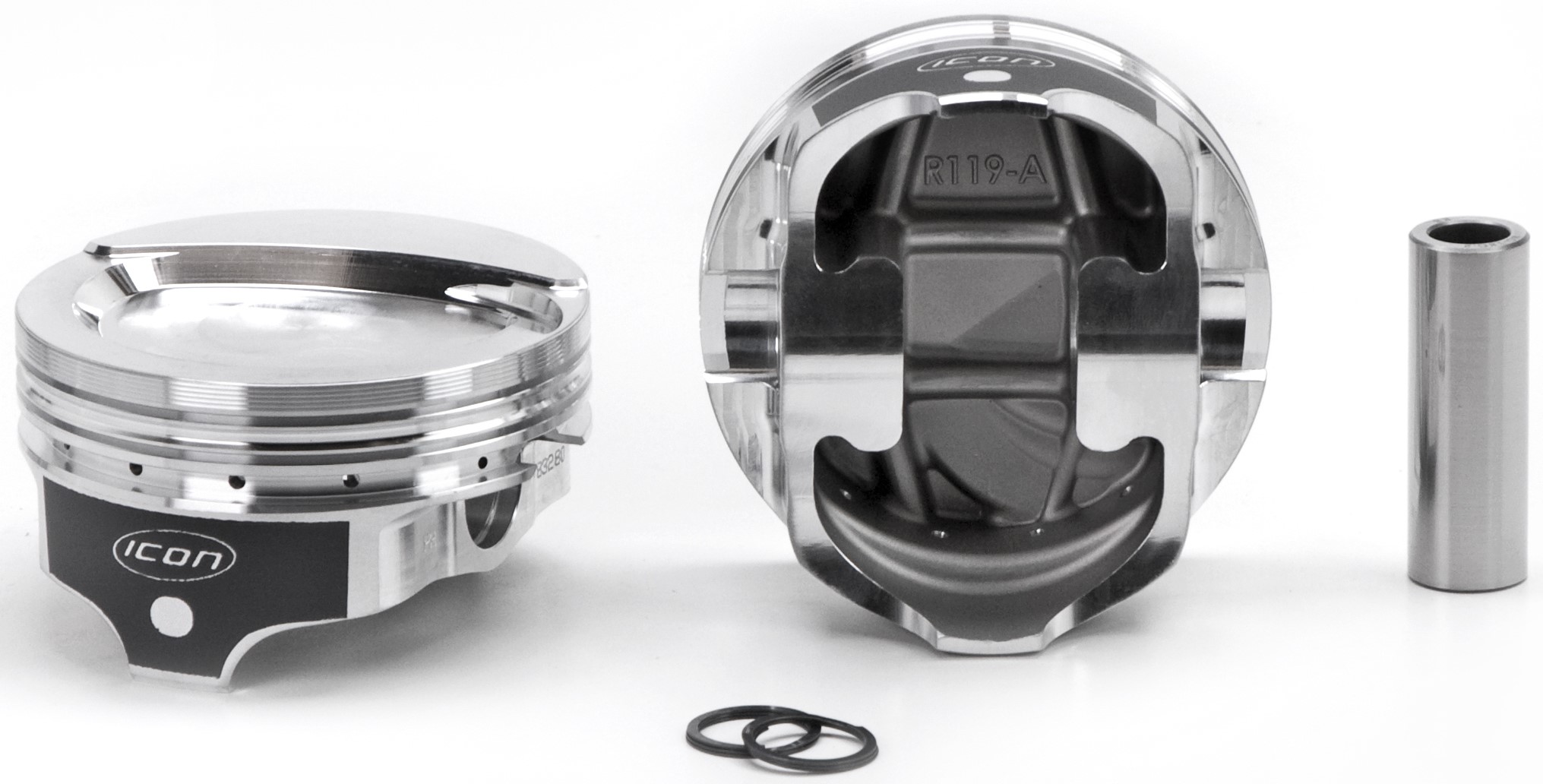

ICON Piston - Ford 545ci/8.9L (V8) Kit with Rings
Features & benefits
- Centered pin. Use 460 block. For use with Ford/Edelbrock type heads. Connecting rod small end width- 1.250 max. Uses (BBC) .9898 diameter wrist pin. Ring set for the .140 oversize is 4466BD8.034.
Specifications
- GTIN
- 00800745179074
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC854
- Bore (in)
- 4.36
- Bore (mm)
- 110.7
- Compression Ratio
- 72-10.2, 75-10.0, 88-9.2
- Crown (cc)
- +39cc
- Crown Type
- STEP DISH 1V
- Eng. Disp Liters
- 8.5
- Eng. Disp. In.
- 520
- Engine Family
- Ford BB V8 429/460
- Engine Manufacturer
- Ford
- Intake Valve Depth/diameter
- .245/2.450
- Lock
- PRG110-3
- Make For Engine Family
- Ford
- Oe Deck Height
- 10.32
- Oversize
- .060
- Oversizes
- .030 .040 .060 .080 .140
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- .990x2.750
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6.8
- Rod (mm)
- 172.72
- Sold As
- KIT W/RINGS
- Stroke (in)
- 4.3
- Stroke (mm)
- 109.2
- Top Land
- .328
- Year Range
- -
Fitment status
This product is universal and will fit your application.
