Icon Forged Pistons · IC848KTD.030

Part #: IC848KTD.030
UPC: 800745178657

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Piston and Ring Kits

Log in to order

Description: ICON Forged Piston - Ford 393W Rod 5.956 Step Dish +28cc 2V Kit with Rings

Description

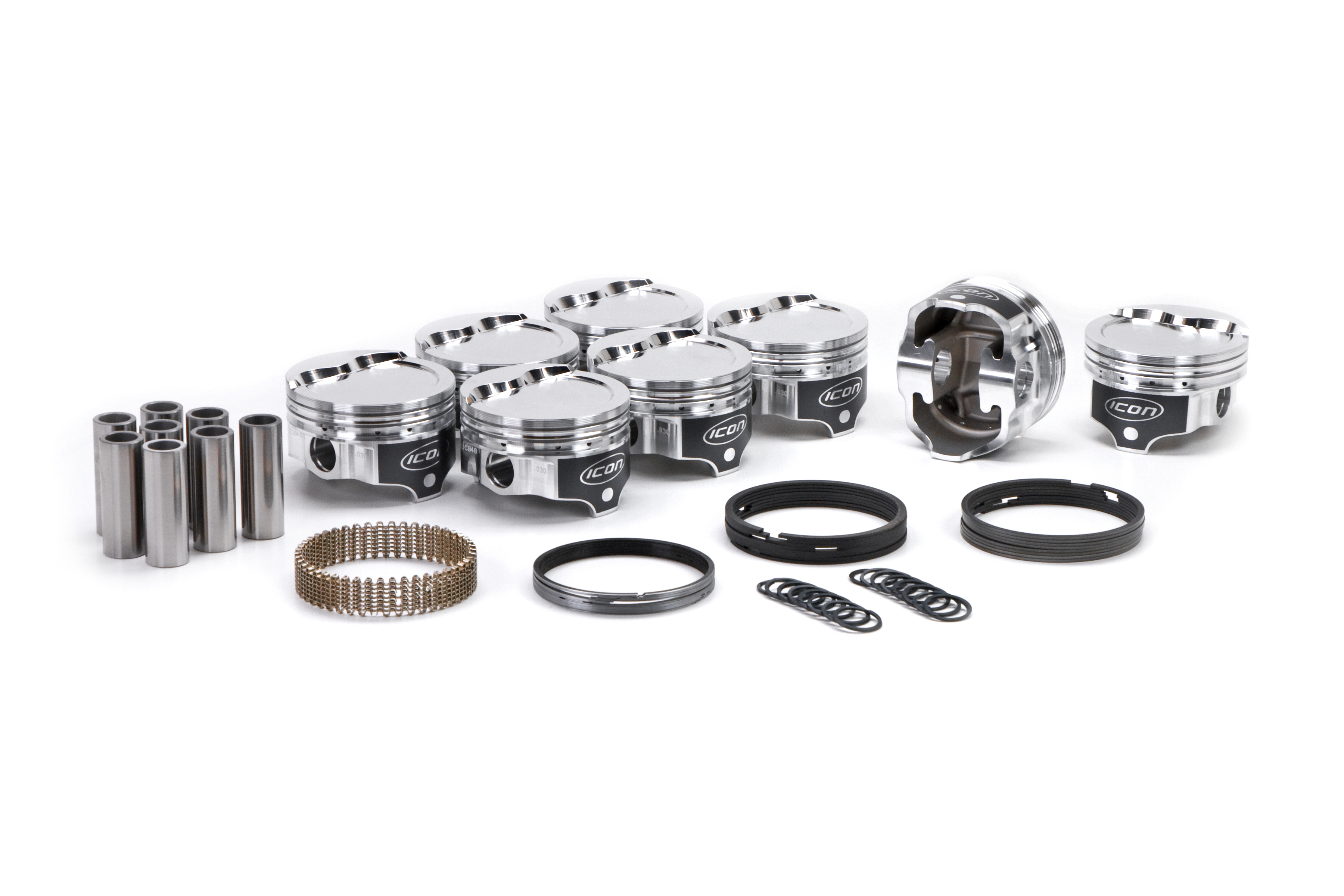

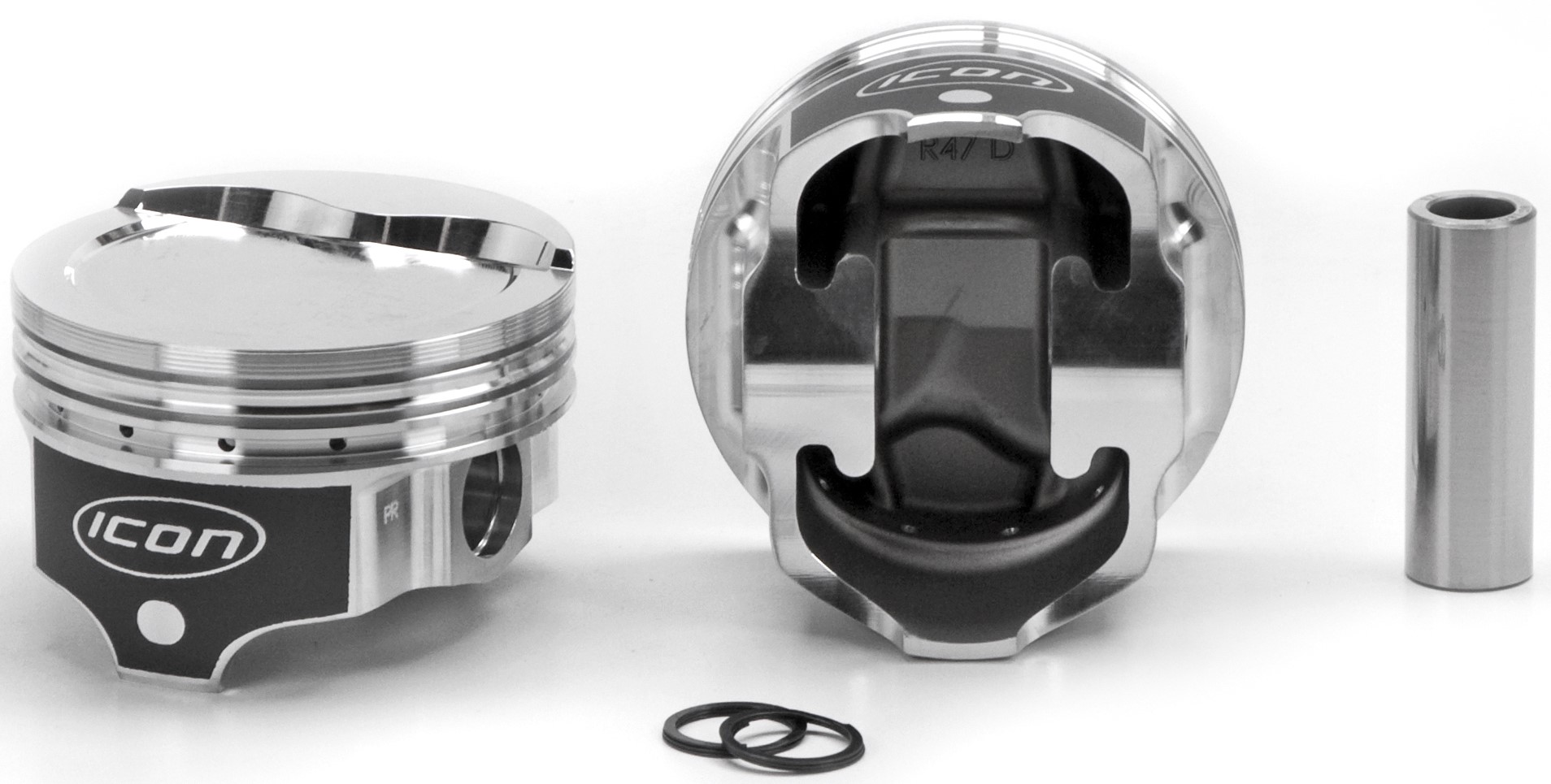

ICON Forged Piston - Ford 393W Rod 5.956 Step Dish +28cc 2V Kit with Rings

Features & benefits

Compression height for this piston is 1.612. Centered pin. Use 351W block. Pre-1971 deck heights are .020 shorter. Insufficient stock for clean up.

Specifications

GTIN: 00800745178657
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC848
Bore (in): 4
Bore (mm): 101.6
Compression Ratio: 54-9.9, 58-9.5, 64-9.0
Crown (cc): +28cc
Crown Type: STEP DISH 2V
Eng. Disp Liters: 6.4
Eng. Disp. In.: 393
Engine Family: Ford SB V8 Windsor
Engine Manufacturer: Ford
Exhaust Valve Depth/diameter: .257/2.120
Intake Valve Depth/diameter: .257/2.120
Lock: PRL99-3
Make For Engine Family: Ford
Oe Deck Height: 9.5
Oversize: .030
Oversizes: .030 .040 .060
Pin Configuration: Centered
Pin Diameter (in): .912
Pin Diameter (mm): 23.16
Pin Number: .912x2.750
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 5.956
Rod (mm): 151.2824
Sold As: KIT W/RINGS
Stroke (in): 3.85
Stroke (mm): 97.8
Top Land: .345
Year Range: -

Fitment status

This product is universal and will fit your application.
