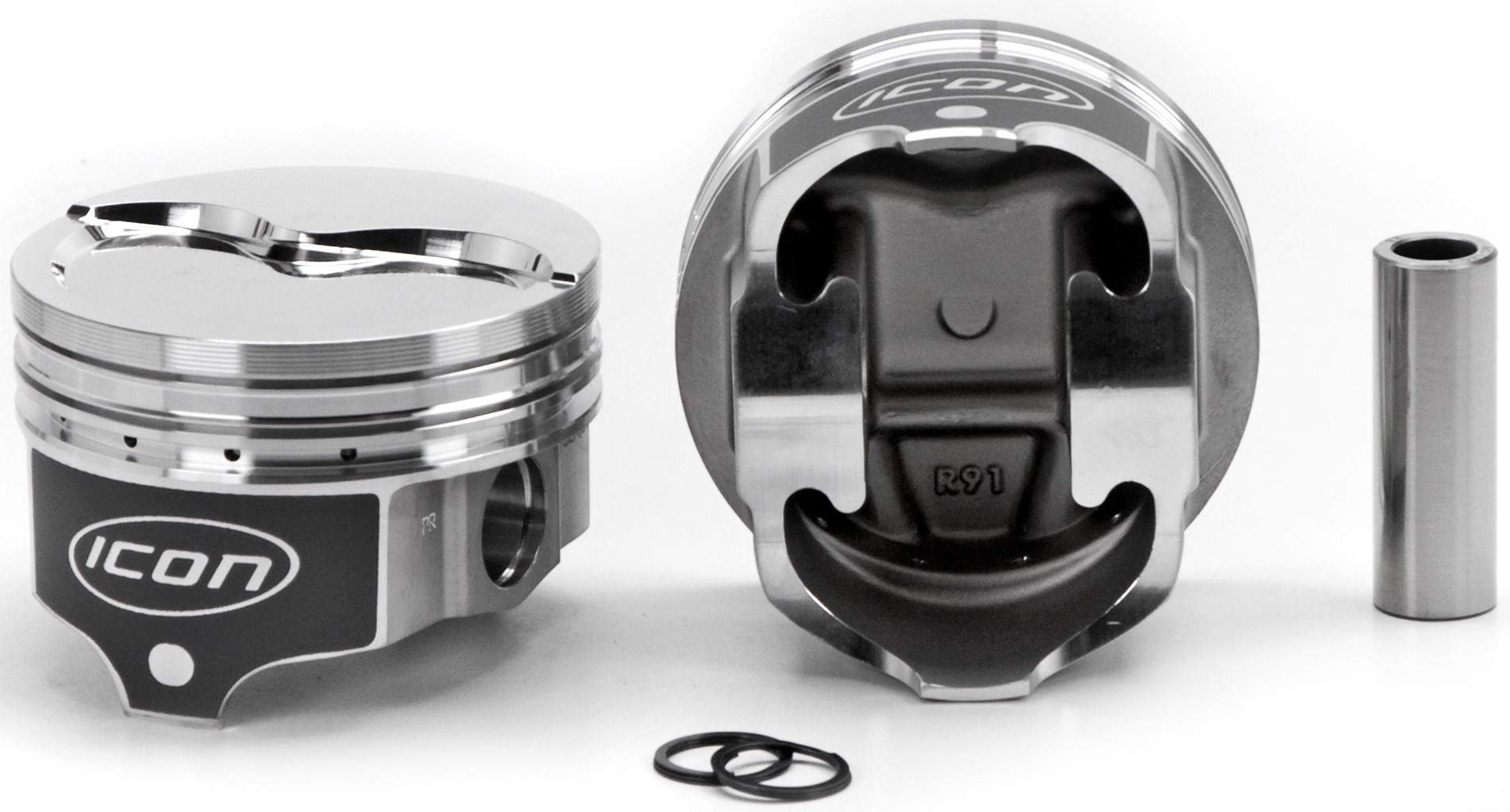

Icon Forged Pistons · IC840KTD.030

Part #: IC840KTD.030
UPC: 800745178411

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Step Dish Piston and Ring Kits

Log in to order

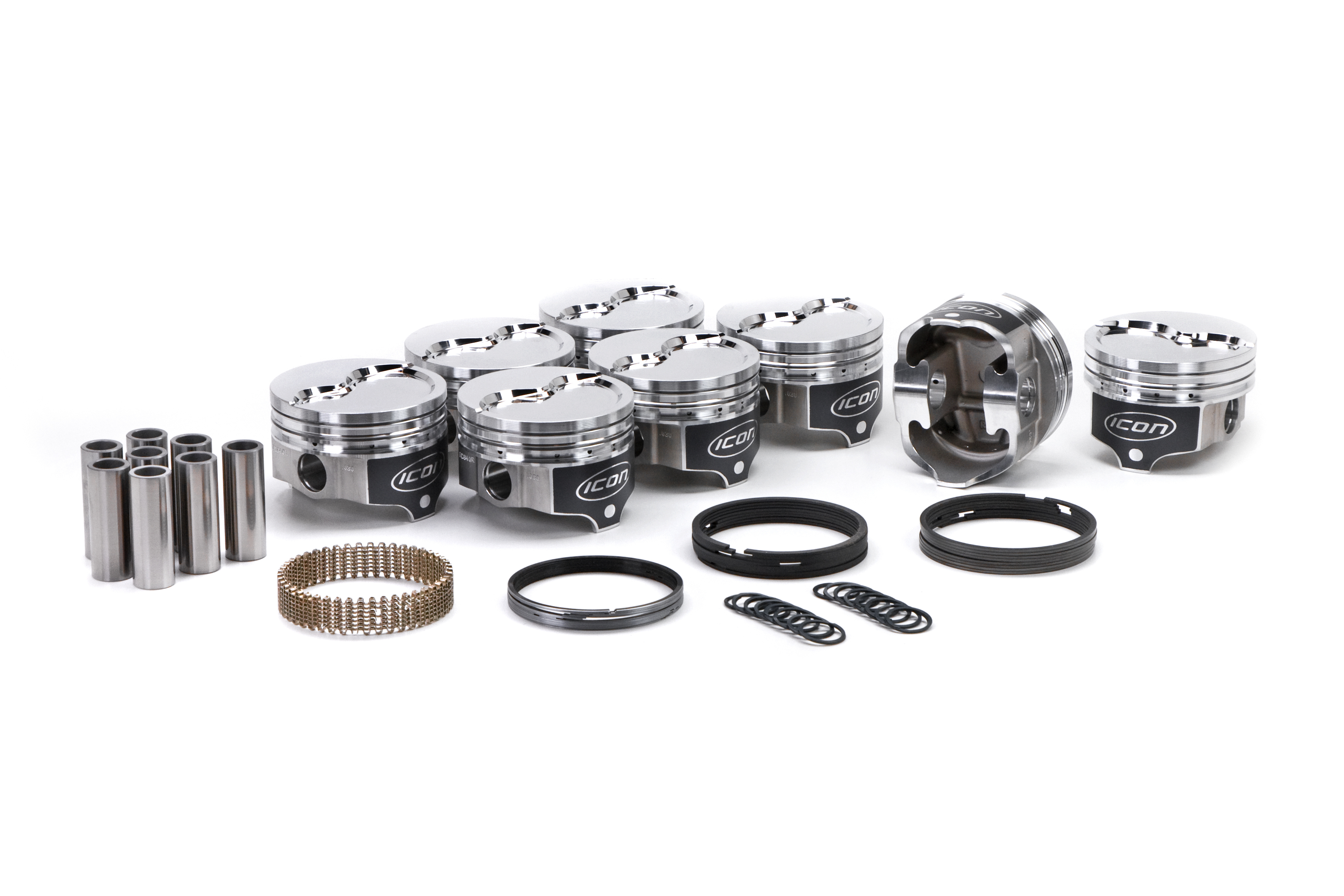

Description: ICON Forged Piston - Chry 493 Rod 6.768 Step Dish +23.7cc 2V Kit with Rings

Description

ICON Forged Piston - Chry 493 Rod 6.768 Step Dish +23.7cc 2V Kit with Rings

Features & benefits

Centered pin. Diameter is .9898 (BBC). Use 4250BD8.125. Ring set for the .055 oversize piston. Use 440 block.

Specifications

GTIN: 00800745178411
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC840
Bore (in): 4.32
Bore (mm): 109.7
Compression Ratio: 75-10.3, 78-10.1, 88-9.3
Crown (cc): +23.7cc
Crown Type: STEP DISH 2V
Eng. Disp Liters: 8.1
Eng. Disp. In.: 493
Engine Family: Mopar Big Block RB
Engine Manufacturer: Chrysler
Exhaust Valve Depth/diameter: .199/1.880
Intake Valve Depth/diameter: .215/2.300
Lock: PRG110-3
Make For Engine Family: Mopar
Oe Deck Height: 10.725
Oversize: .030
Oversizes: .030 .040 .055
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: .990x3.000
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.768
Rod (mm): 171.9072
Sold As: KIT W/RINGS
Stroke (in): 4.15
Stroke (mm): 105.4
Top Land: .350
Year Range: -

Fitment status

This product is universal and will fit your application.
