Icon Forged Pistons · IC824KTD.055
Part #: IC824KTD.055
UPC: 800745177896
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston - Chry 463 Rod 7.100 Flat Top +4.5cc 2V Kit with Rings
Description:
Description

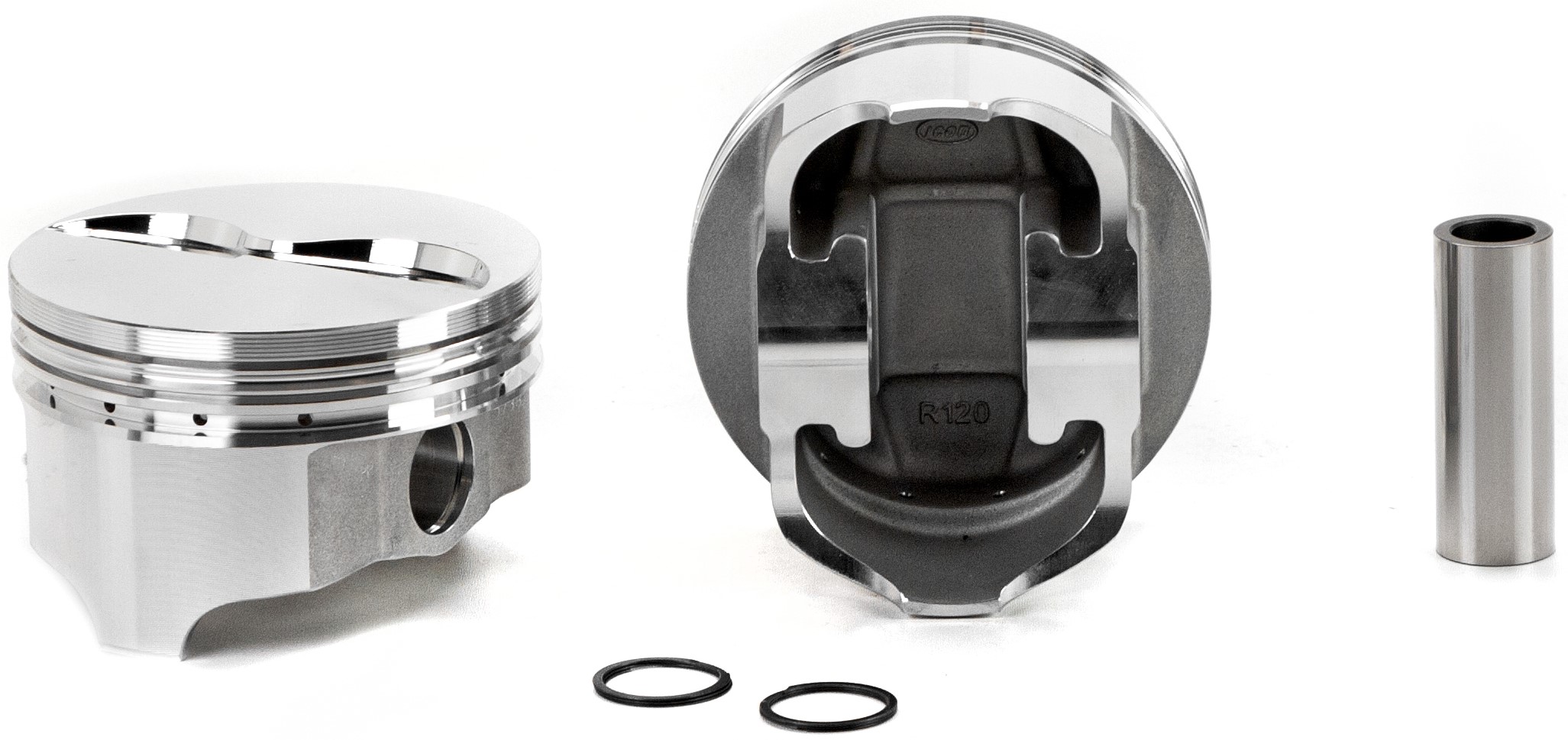

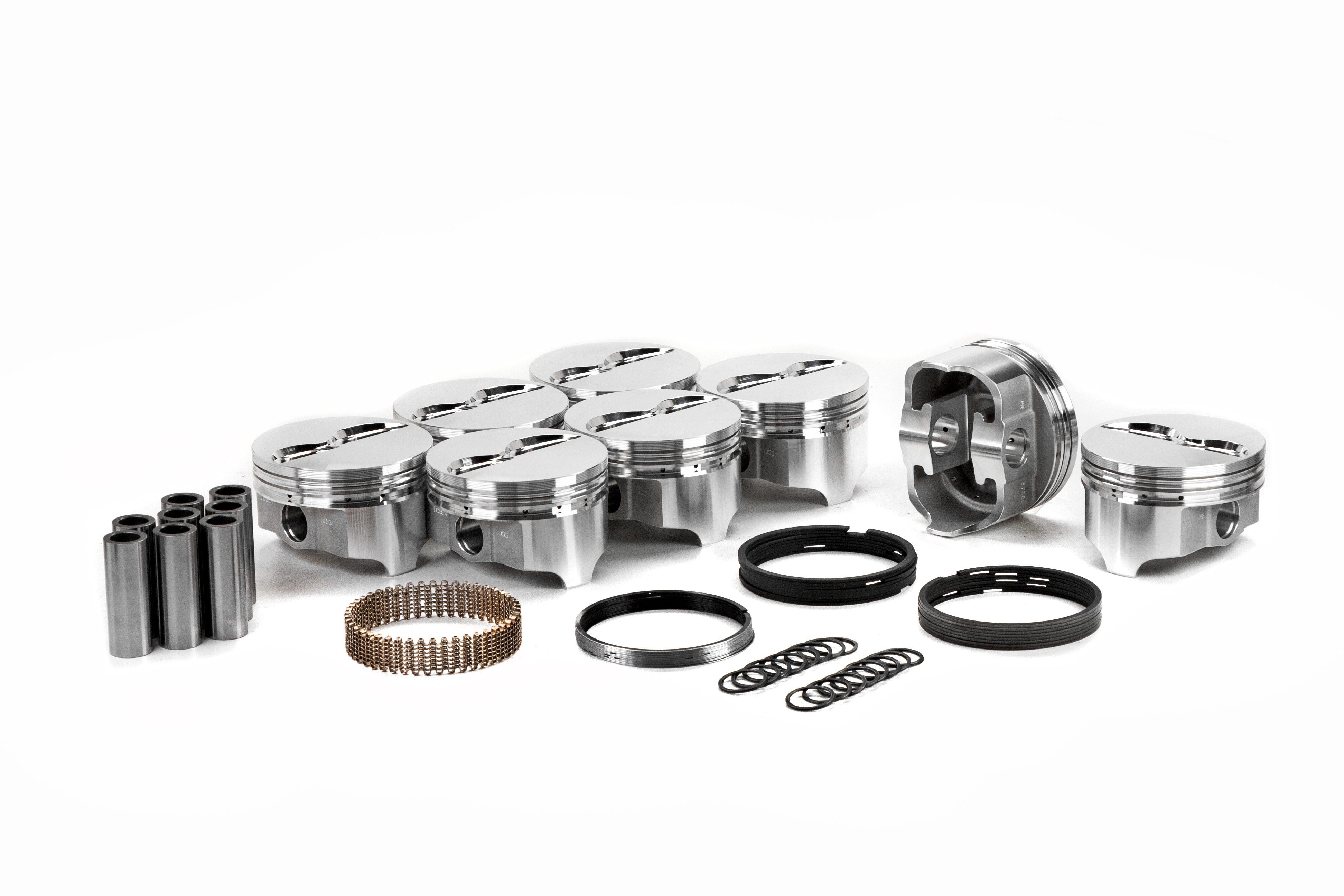

ICON Forged Piston - Chry 463 Rod 7.100 Flat Top +4.5cc 2V Kit with Rings
Features & benefits
- Centered pin. Diameter is .9898 (BBC). Use 4250BD8.125 ring set for the .055 oversize piston. Use 440 block.
Specifications
- GTIN
- 00800745177896
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC824
- Bore (in)
- 4.32
- Bore (mm)
- 109.7
- Compression Ratio
- 75-11.6, 78-11.3, 88-10.3
- Crown (cc)
- +4.5cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 7.6
- Eng. Disp. In.
- 463
- Engine Family
- Mopar Big Block RB
- Engine Manufacturer
- Chrysler
- Exhaust Valve Depth/diameter
- .200/1.880
- Intake Valve Depth/diameter
- .215/2.300
- Lock
- PRG110-3
- Make For Engine Family
- Mopar
- Oe Deck Height
- 10.725
- Oversize
- .055
- Oversizes
- .030 .040 .055
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- .990x2.750
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 7.1
- Rod (mm)
- 180.34
- Sold As
- KIT W/RINGS
- Stroke (in)
- 3.9
- Stroke (mm)
- 99.1
- Top Land
- .260
- Year Range
- -
Fitment status
This product is universal and will fit your application.
