Icon Forged Pistons · IC822KTD.030
Part #: IC822KTD.030
UPC: 800745177810
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston - Chry 440 Rod 6.768 Flat Top +4.5cc 2V Kit with Rings
Description:
Description

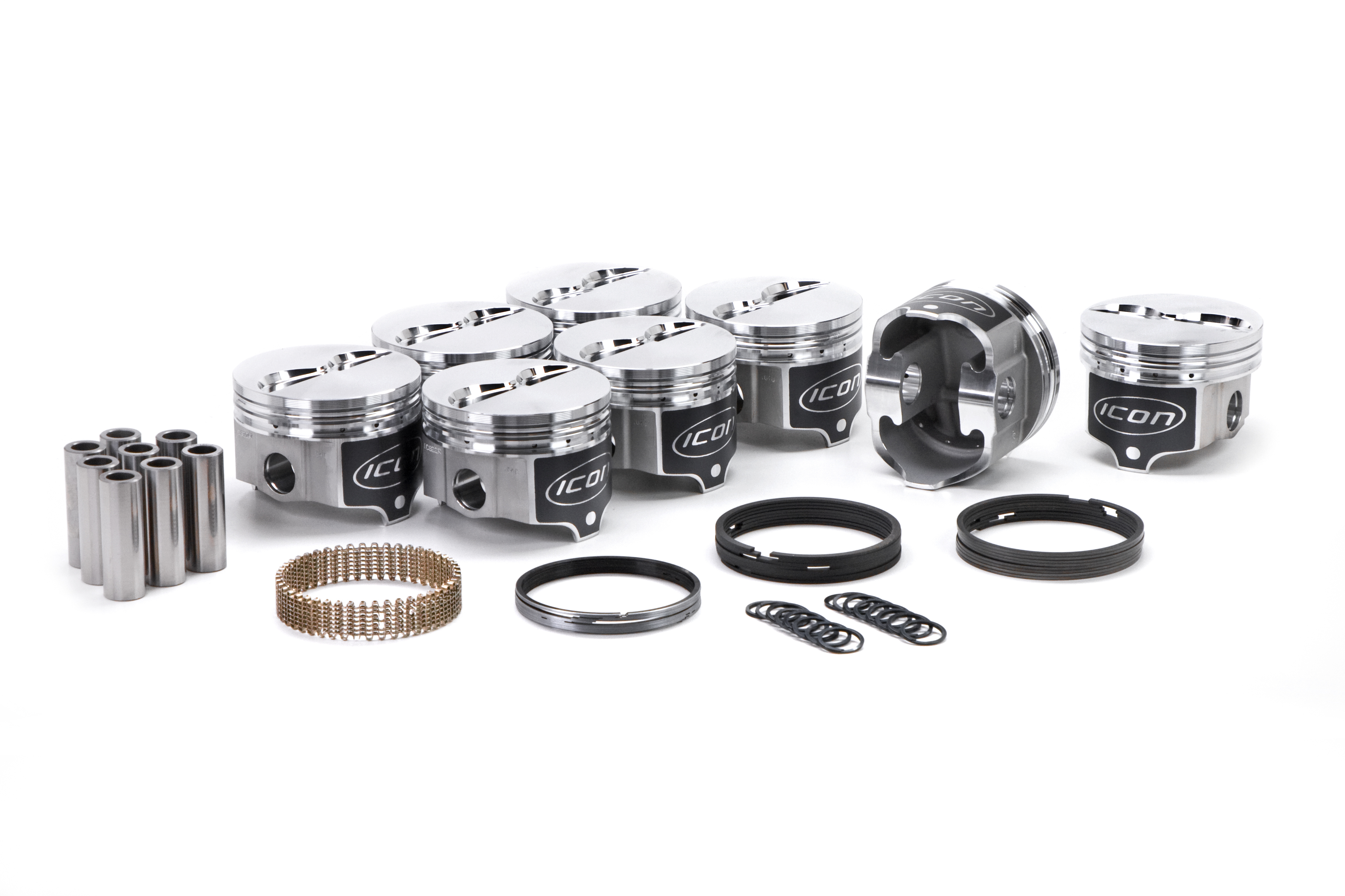

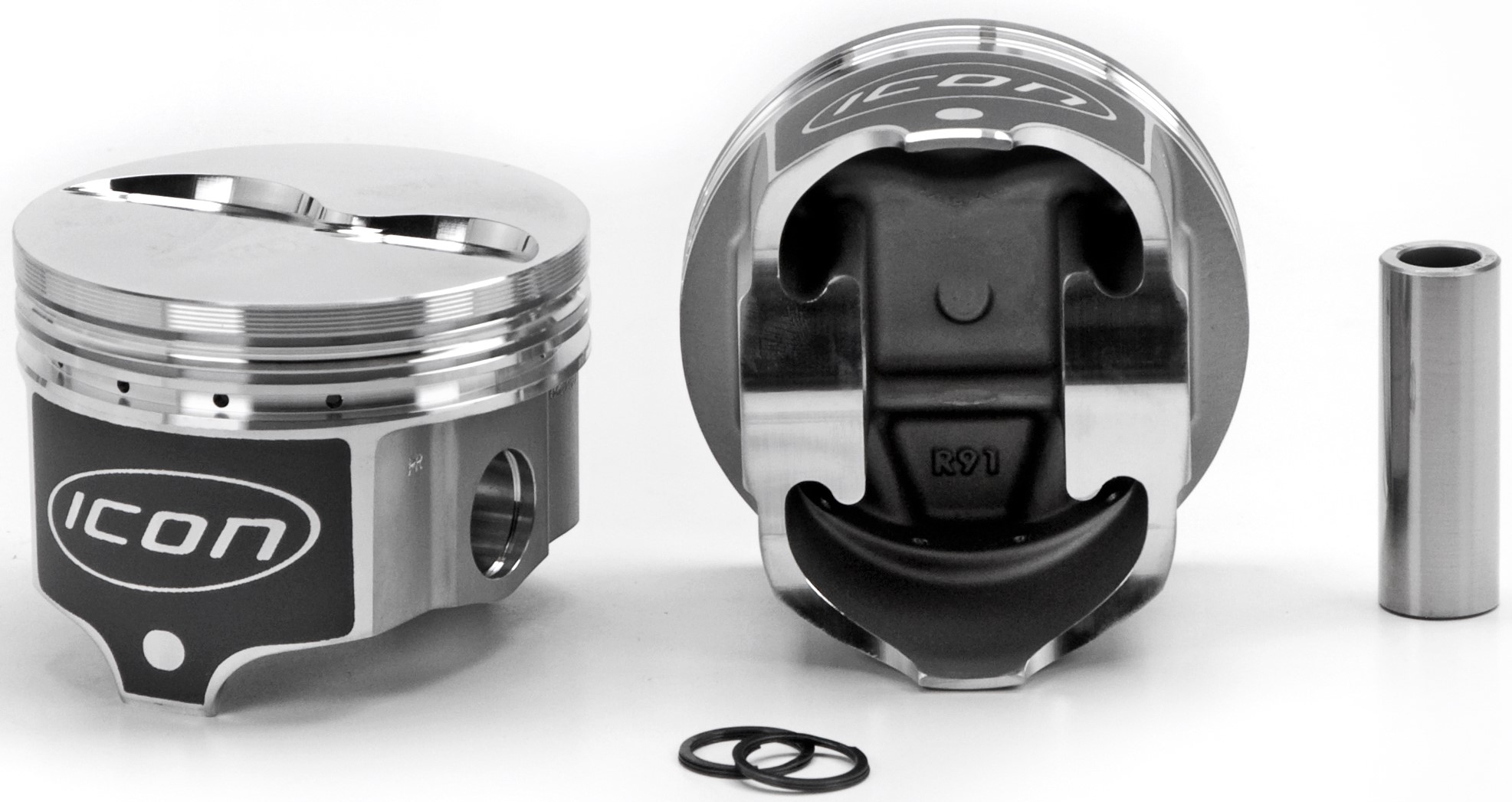

ICON Forged Piston - Chry 440 Rod 6.768 Flat Top +4.5cc 2V Kit with Rings
Features & benefits
- Centered pin. Diameter is .9898 (BBC). Use 4250BD8.125 ring set for the .055 oversize piston.
Specifications
- GTIN
- 00800745177810
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC822
- Bore (in)
- 4.32
- Bore (mm)
- 109.7
- Compression Ratio
- 75-11.2, 78-10.9, 88-9.9
- Crown (cc)
- +4.5cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 7.2
- Eng. Disp. In.
- 440
- Engine Family
- Mopar Big Block RB
- Engine Manufacturer
- Chrysler
- Exhaust Valve Depth/diameter
- .200/1.880
- Intake Valve Depth/diameter
- .215/2.300
- Lock
- PRG110-3
- Make For Engine Family
- Mopar
- Oe Deck Height
- 10.725
- Oversize
- .030
- Oversizes
- .030 .040 .055
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- .990x3.000
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6.768
- Rod (mm)
- 171.9072
- Sold As
- KIT W/RINGS
- Stroke (in)
- 3.75
- Stroke (mm)
- 95.3
- Top Land
- .260
- Year From
- 1966
- Year Range
- 1966-1979
- Year To
- 1979
Fitment status
This product is universal and will fit your application.
